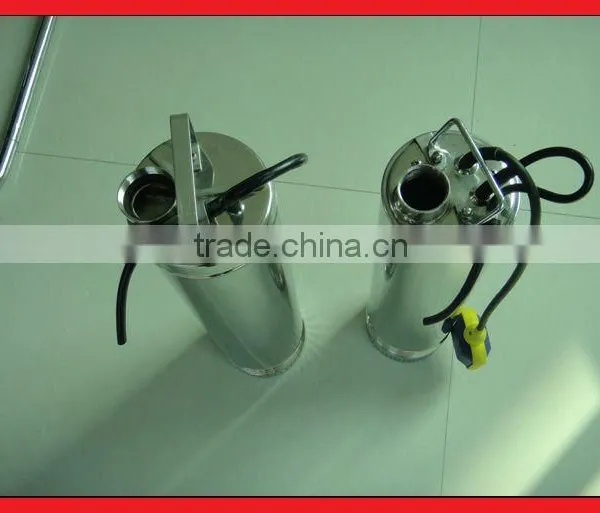

Help CenterCE List Submersible Multistage Pumps, 1.5hp, High Pressure Water Pumps
Related Products
-
Diver 200 Single Phase 5" Multi-stage Submersible Borehole PumpNegotiableMOQ: 100 Units -
CE List Submersible Pump Stainless Steel Pumps QDN WQG WQ QDX SeriesNegotiableMOQ: 500 Cartons
-
Electropump for Deep Suction Self-priming Centrifugal Pump for Suction up to 27 MetresNegotiableMOQ: 200 Cases
-
Stainless Steel Electric Submersible Water PumpsNegotiableMOQ: 50 Units
-
Submerged Pumps and Submersible Motors 5' Multistage PumpsNegotiableMOQ: 200 Cases
Using single(three) phase power source
complete stainless steel structure
rust free and anti corrosion.
the vortex type or double-vane impeller features
.the maximum solid diameter of passage up to 40mm
standard AISI SS 304 for common acid or alcali (PH value 4-10)
316L for sea water or chemical industry (PH value 0-12)
Model |
capacity m3/h |
head m |
v/hz |
output power kw/hp |
discharge size mm |
NW kgs |
GW kgs |
Packing size mm |
Qty/20" GP |
QDN1.5-30-0.55KWF |
1.5 Max:5 |
30 max:40 |
220V/50Hz 115V/60Hz 127V/60Hz |
0.55kw(3/4 hp) |
50 |
14 |
14.5 |
230*230*540 |
1000 |
QDN1.5-40-0.75KWF |
1.5 Max:5 |
40 max:53 |
220V/50Hz 115V/60Hz 127V/60Hz |
0.75kw/1hp |
50 |
14.5 |
15 |
230*230*570 |
1000 |
QDN1.5-60-1.1KWF |
1.5 Max:5 |
60 max:75 |
220V/50Hz 115V/60Hz 127V/60Hz |
1.1kw/1.5hp |
50 |
16.2 |
16.7 |
230*230*530 |
930 |
QDN1.5-80-1.5KWF |
1.5 Max:5 |
80 max:100 |
220V/50Hz 115V/60Hz 127V/60Hz |
1.5kw/2hp |
50 |
18.5 |
19 |
230*230*720 |
750 |
QDN60/5 |
1.5 Max:6.5 |
40 max:55 |
220V/50Hz |
1.1kw/1.5hp |
40 |
17 |
18 |
230*230*580 |
1000 |
QDN80/7 |
1.5 Max:6.5 |
60 max:75 |
220V/50Hz |
.1.5kw/5hp |
40 |
19.25 |
20.25 |
230*230*700 |
830 |
