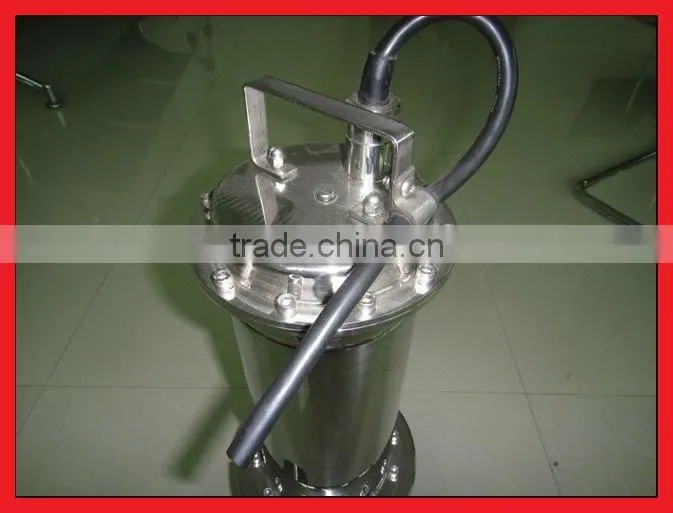

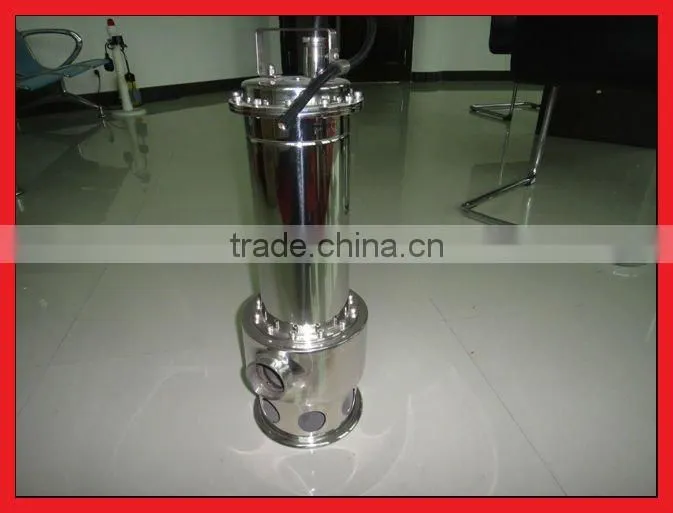

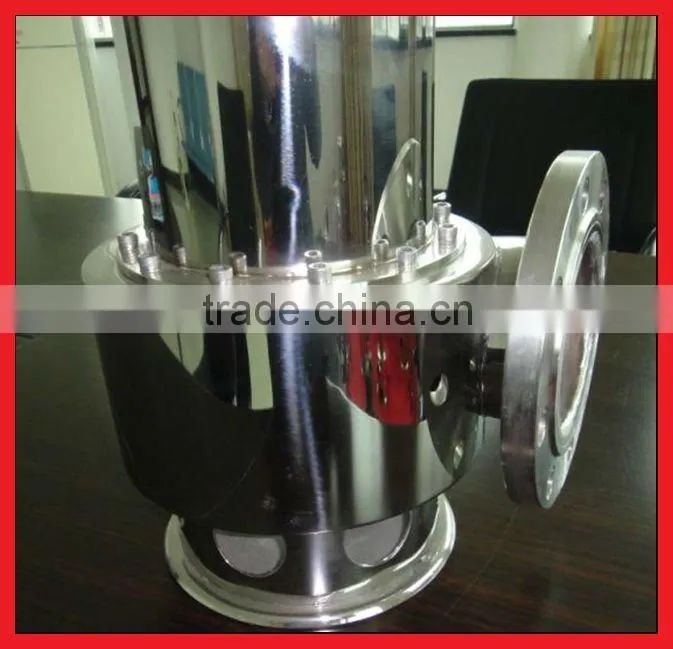

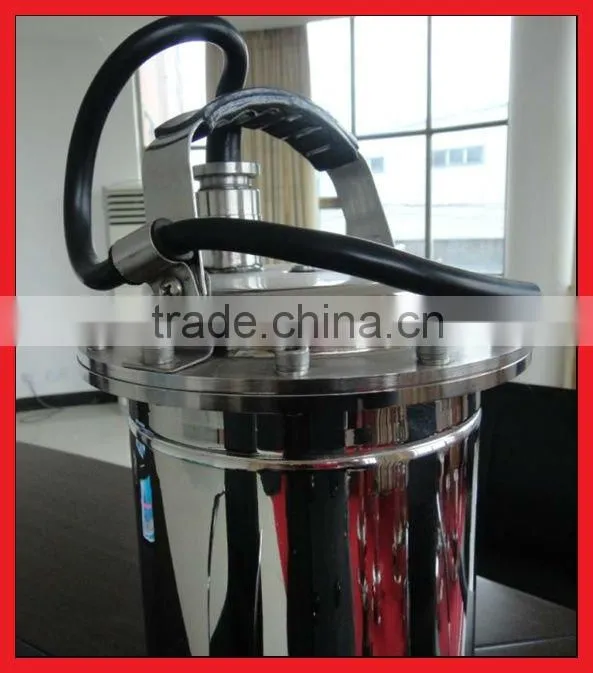

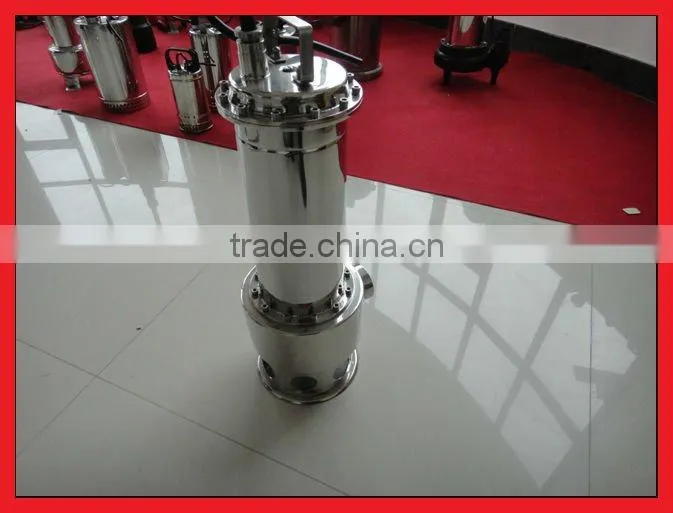

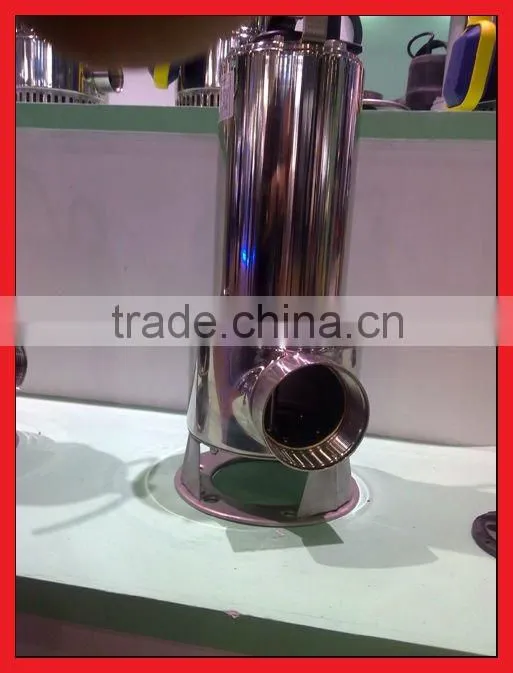

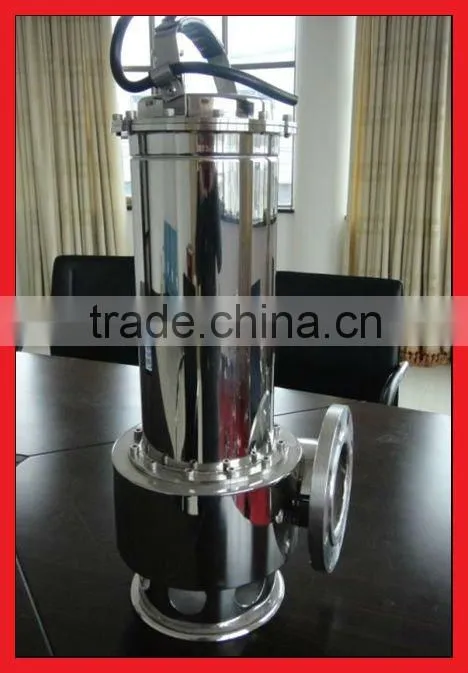

High Pressure Pump Sump Pump Italian Water Pump, Dewatering Pump
Negotiable
MOQ: 50 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHAOQIAN
Model Number:
WQ25-10-2.2KW/ WQ25-15-3KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE List High Head Pumps, 2hp,water Pumps High Pressure Submersible PumpsNegotiableMOQ: 100 Units -
Diver 75 Single Phase 5" Multi-stage Submersible Borehole PumpNegotiableMOQ: 100 Units
-
CE List Submersible Multistage Pumps, 1hp, Septic Pumps Stainless SteelNegotiableMOQ: 100 Units
-
Diver 150 Single Phase 5" Multi-stage Submersible Borehole PumpNegotiableMOQ: 100 Units
-
Stainless Steel Water PumpUS$ 150 - 156MOQ: 100 Sets
Place of Origin
Zhejiang, China
Brand Name
CHAOQIAN
Model Number
WQ25-10-2.2KW/ WQ25-15-3KW
Theory
Centrifugal Pump
Structure
Multistage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other
Pressure
High Pressure
Application
Submersible
Characteristics&use range:
single(three) phase
complete stainless steel structure
vortex type or double-vane impeller
maximum solid diameter of passage up to 40mm on request
standard ss aisi304 for common acid or alcali
316 L for sea water or chemical industry
| Technical Data | |||||||
| Model | Head m |
Capacity m3/h |
Voltage,Frequency V/Hz |
Output Power KW/HP |
Discharge Size mm |
Size mm |
Weight KG |
| WQ35-7-2.2KW | 7 Max:10 |
65 Max:78 |
380V/50Hz | 2.2KW (3HP) |
100 | 210x210x540 | 39 |
| WQ25-10-2.2KW | 17 Max:20 |
25 Max:30 |
380V/50Hz | 2.2KW (3HP) |
65 | 210x210x540 | 39 |
| WQ9-22-2.2KW | 10 Max:13 |
65 Max:78 |
380V/50Hz | 3KW (4HP) |
100 | 220x220x560 | 41 |
| WQ15-15-2.2KW | 16 Max:20 |
40 Max:48 |
380V/50Hz | 3KW (4HP) |
80 | 220x220x560 | 41 |
| WQ25-15-3KW | 21 Max:25 |
40 Max:50 |
380V/50Hz | 4KW (5.3HP) |
80 | 220x220x570 | 43 |
| WQ15-22-3KW | 12 Max:15 |
100 Max:120 |
380V/50Hz | 5.5KW (7.3HP) |
120 | 270x270x610 | 50 |
| WQ37-10-3KW | 11 Max:15 |
160 Max:180 |
380V/50Hz | 7.5KW (10HP) |
150 | 280x280x630 | 55 |
| WQ25-22-4KW | 25 Max:30 |
15 Max:33 |
380V/50Hz | 2.2KW (3HP) |
65 | 210x210x540 | 39 |
| WQ50-10-4KW | 20 Max:30 |
20 Max:45 |
380V/50Hz | 2.2KW (3HP) |
65 | 210x210x540 | 39 |
| WQ75-7-4KW | 34 Max:38 |
15 Max:33 |
380V/50Hz | 3KW (4HP) |
65 | 210x210x560 | 41 |
| WQ12-33-4KW | 25 Max:30 |
24 Max:45 |
380V/50Hz | 3KW (4HP) |
65 | 210x210x560 | 41 |
