100mm Grow Tent Ventilation Inline Duct Fan

100mm Grow Tent Ventilation Inline Duct Fan thumbnail-1
100mm Grow Tent Ventilation Inline Duct Fan photo-1
US$ 20 - 28 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Plastic
Mounting:
Duct Fan
Contact Supplier Request Quote Chat Now
Zhejiang Xingyi Ventilator Electrical Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Plastic
Mounting Duct Fan
Place of Origin Zhejiang, China
Brand Name XINGYI
Model Number XHF-100
Power 23-26W
Voltage 220V/50HZ
Air Volume 165-198m3/h
Certification CCC, CE

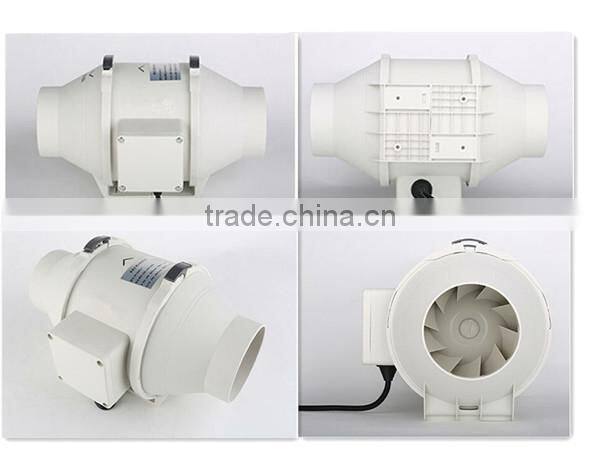

XHF Series Mixed-flow two speed inline duct fan

Product Features:

  • The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.
  • Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
  • Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.
  • IP44 Protection class, waterproof and dustproof more effective.
  • Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.
  • Run the ambient temperature range: -20°C~60°C.



Performance Parameter:

XHF series Inline Duct Fan Specification
Model Stalls Voltage/ Frequency Current(Amps) Power(W) Speed (RPM) N.W. (KG/CTN) G.W. (KG/CTN) Air Flow(M3/H) Air Pressure (Pa) Avg(dBA)@ 3m Outlet Size (mm) MEAS(mm)
XHF-100 H 230V/50Hz 0.12 26 2200 1.55 2 198 156 31 97 312*215*225
L 0.11 23 1850 1.55 2 165 131 26 97 312*215*225
XHF-100 H 115V/60Hz 0.26 30 2200 1.55 2 198 156 31 97 312*215*225
L 0.24 28 1850 1.55 2 165 131 26 97 312*215*225
XHF-125 H 230V/50Hz 0.14 33 2250 1.58 2.1 284 159 31 122 270*218*227
L 0.13 28 1850 1.58 2.1 248 106 26 122 270*218*227
XHF-125 H 115V/60Hz 0.30 32 2250 1.58 2.1 284 159 31 122 270*218*227
L 0.26 27 1850 1.58 2.1 248 106 26 122 270*218*227
XHF-150 H 230V/50Hz 0.24 54 2550 2.65 3.35 530 300 33 147 325*235*235
L 0.21 48 1850 2.65 3.35 410 240 29 147 325*235*235
XHF-150 H 115V/60Hz 0.58 65 2550 2.65 3.35 530 300 33 147 325*235*235
L 0.49 53 1850 2.65 3.35 410 240 29 147 325*235*235
XHF-200 H 240V/50Hz 0.57 128 2450 4.45 5.2 840 352 63 198 315*260*260
L 0.52 123 1950 4.45 5.2 690 274 55 198 315*260*260
XHF-200 H 115V/60Hz 1.41 162 2450 4.45 5.2 840 352 63 198 315*260*260
L 1.27 146 1950 4.45 5.2 690 274 55 198 315*260*260

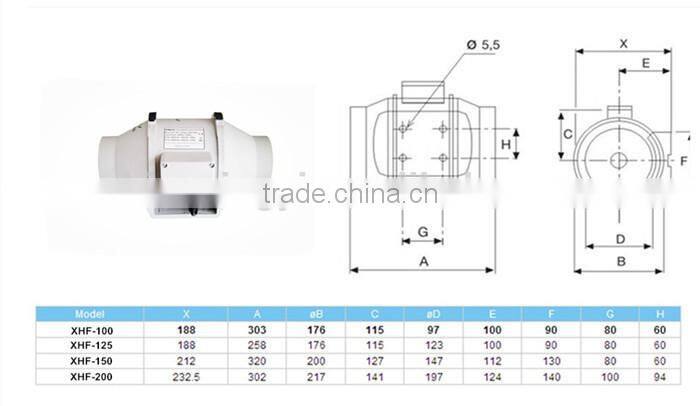

Dimensions (mm):

100mm Grow Tent Ventilation inline duct fan

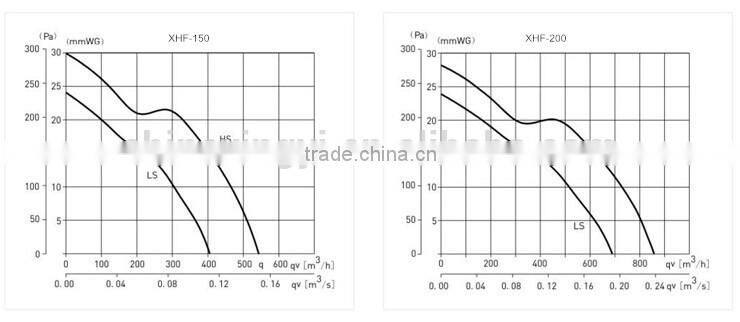

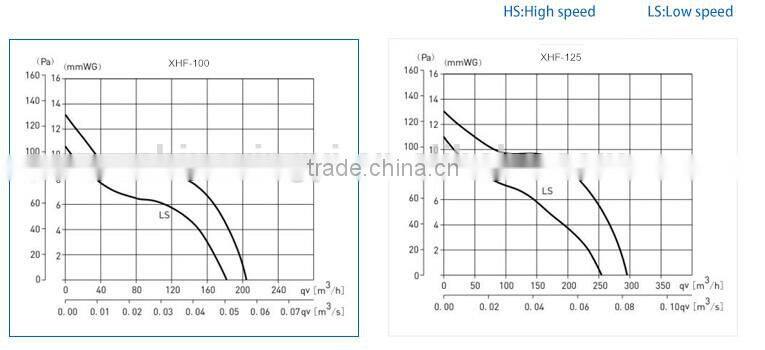

Performance Curves:

qv: Air volume in m3/h and m3/s.

psf : Static pressure in mmWG and Pa.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.





100mm Grow Tent Ventilation inline duct fan

 100mm Grow Tent Ventilation inline duct fan

 100mm Grow Tent Ventilation inline duct fan



Our Services



1.   Warranty: 1 Year warranty for all products.

2.   Products Quality: 100% products inspection before delivery.

3.   Just in time delivery: Normally, lead time is 30 days.

4.   Customized Service: As we have our own molding department, customized service can be provided.

5.   Prompt Customers Service: TradeManager and E-mail will be replied in 24 hours.

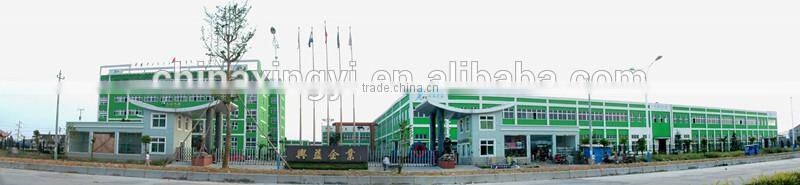

Company Information



China Xingyi Holding Group Co., Ltd. established in 1994. Xingyi Group specializes in many kinds of large industrial fan, external rotor fan, centrifugal fan, axial fan, air-conditional fan, inclined flow fan, boiler used induced fan, fume exhausting fan for fire fighting, inverter welding machine, battery charger, air plasma cutting machine, cut off machine, etc.











Our Certificate

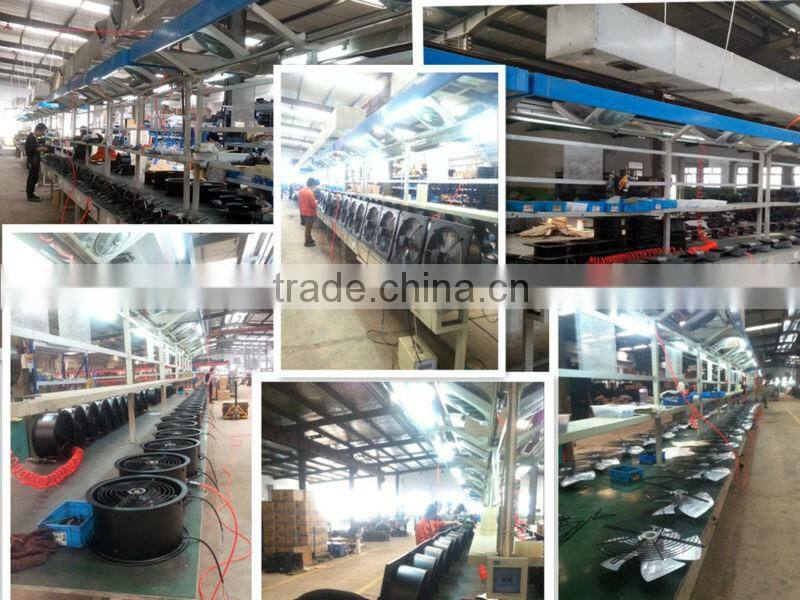

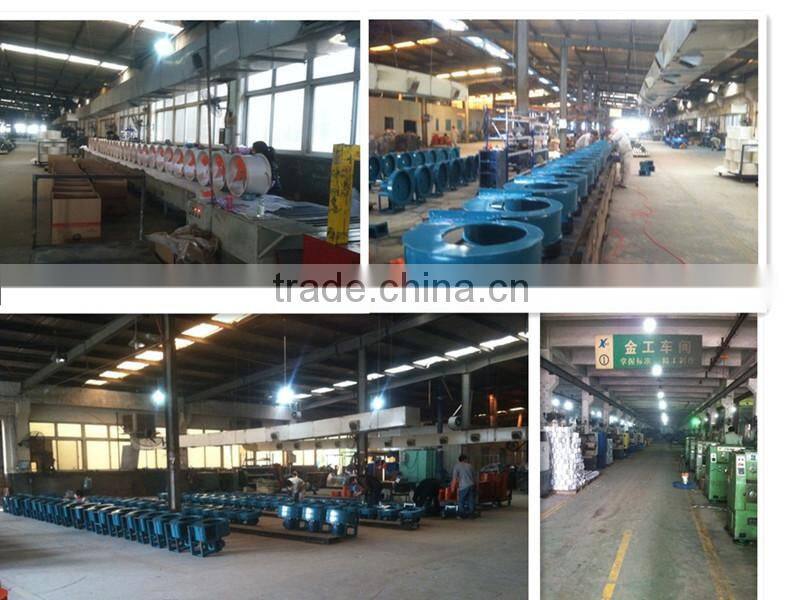

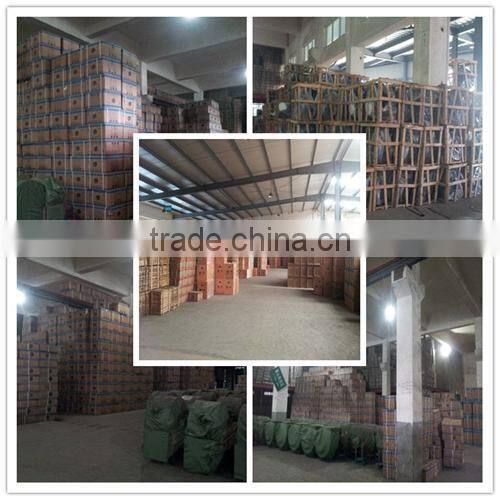

Our warehouse& prodcution line













Exhibition
