Specifications

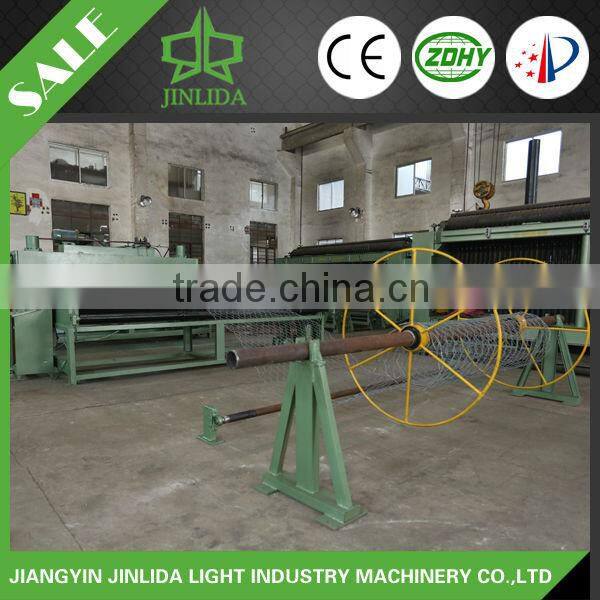

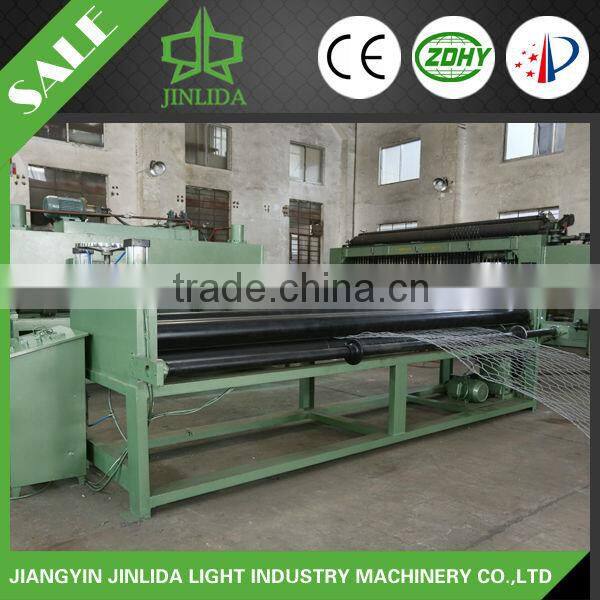

This hexagonal wire mesh straightening machine is the necessary equipment of the hexagonal wire mesh production line.Automatic Counting Hexagonal Wire Mesh Straightening Machine With 3kw Power
Advantage:
1. Automatic counting meters
2. Can be control by PLC system
Detail Descrition:
This equipment is the necessary equipment of the hexagonal wire mesh production line. It is used for the
structural deformation of the forming hexagonal wire mesh, and adjustment of wire's starting deformation, it
also can reduce the deformation of wire stress, have good effect. This machine has separate transmission,
manual adjusting, the aperture of pressing roll, handle control bottom, it can realize the upper roller's alone
adjustment, inching and continuous sending into the material roller, it is easy to cooperate and grasp. We professionally support gabion production line, Gabion product line is composed of heavy-duty
hexagonal wire mesh machine, netting sheet cutting machine, netting sheet straightening machine, wrapped
edge machine, gabion packing machine, and steel Rod Straightening Cutting Machine.
Specifications:
1. Netting width:4300mm
2. Max Wire Diameter:5mm
3.Output:8.5m/minute
4.Power:3kw
5.Roller Speed:20turn/minute
6.Outside dimension: 5100x1250x1350mm
Competitive Advantage:
1. All the parts of netting sheet cutting machine are processed by our own factory; no parts were sending to
outside to process, so the quality can be ensured.
2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
