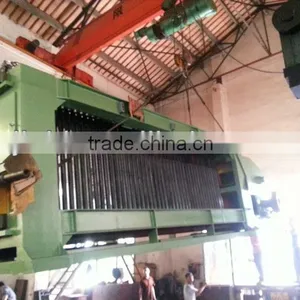

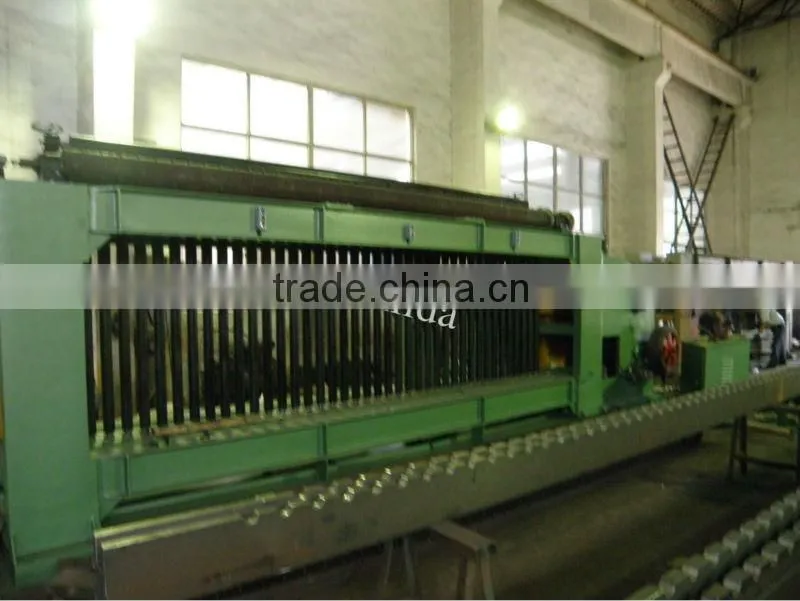

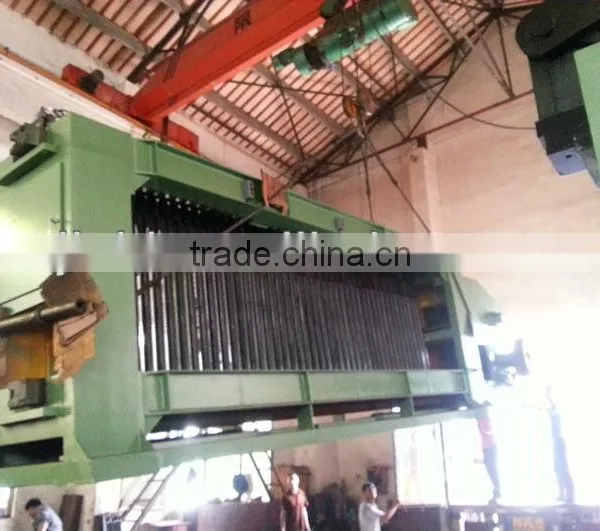

PLC Control Touch Screen Automatic Mesh Machine for 120x150mm Mesh Size 4.0mm Wire
- Shanghai
- T/T
You May Like
-
3.5mm Max Galvanized Wire Diameter Double Twist Heavy Duty Hexagonal Gabion Mesh Machine For 120 x 150mm Mesh Size
-
22 kw 100x120mm Mesh Size 4300mm Max Width Hexagonal Wire Netting Mesh Machine
-
2mx1mx1m Gabion Box Automatic Heavy Duty Gabion Box Machine With 2300mm With 4.2mm Max PVC Wire Diameter
-
100 x 120mm Automatic Heavy Duty Gabion Mesh Machine With 3.0mm Wire Diameter
-
Automatic 90x137mm Mesh Size High Efficiency Hexagonal Wire Mesh Machine , Hexagonal Wire Mesh Suppliers
-
4300mm Weaving Mesh Width New Double Rack Drive Gabion Box Machine, Hexagonal Mesh Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jinlida | |
| Model Number | LNWL43-120-2ZX | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
The LNWL-2 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes.
PLC Control Touch Screen Automatic Mesh Machine for 120x150mm Mesh Size 4.0mm Wire
Specifications
1.CE certification
2.Inside netting pinions
3.Automatic,high efficiency
Descrition:
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh
sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC
coated wire is available.
JINLIDA series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.
We have 15 years export experience establishing trade with more than 30 countries, and Maccaferri,
DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
Specifications:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-3ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 5 | 22 | 165 |
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
A Set Of Gabion Machine Including Below Machines:
1. Main Machine
2. Wire tension device

3.Netting winding machine

4 Spring coiling machine
Competitive Advantage:
1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of g abion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
