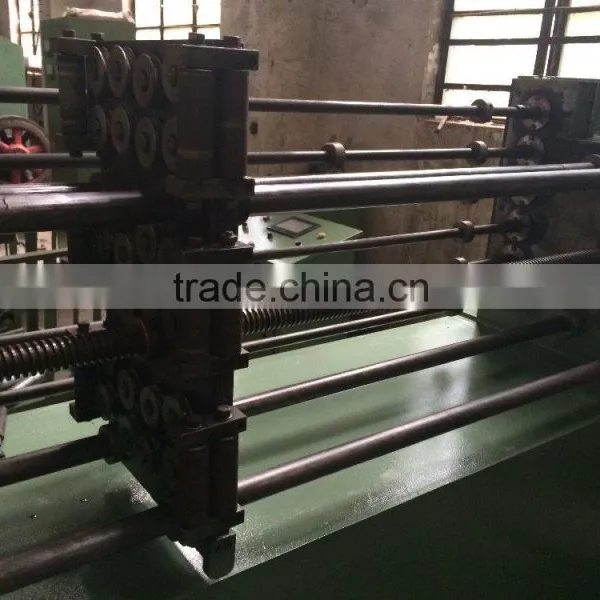

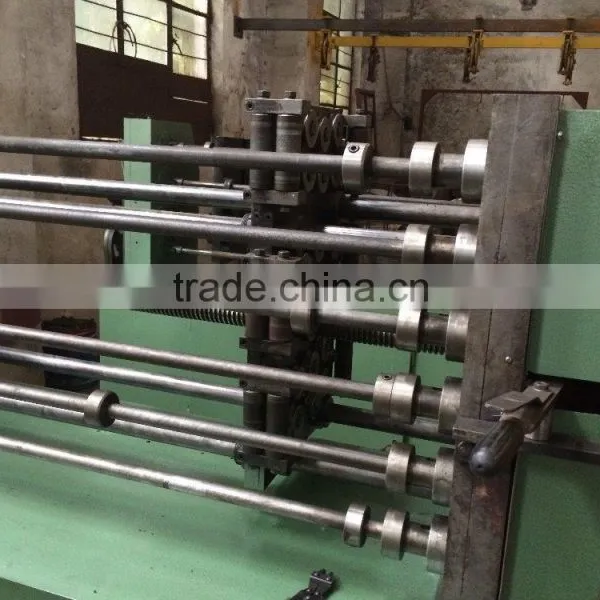

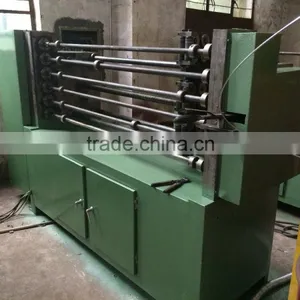

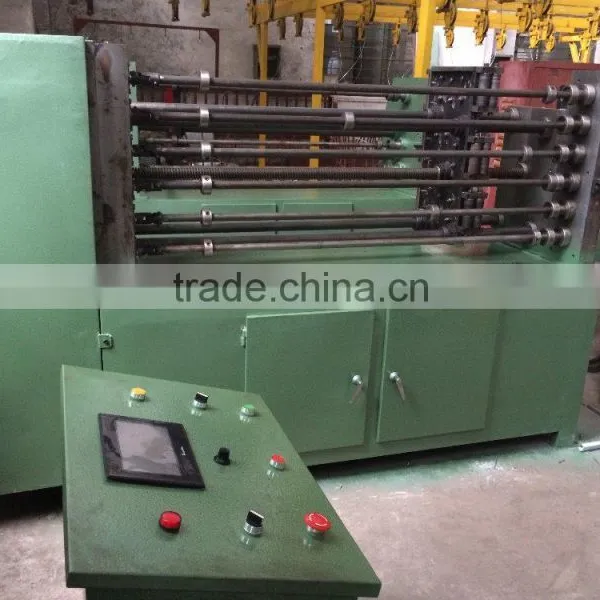

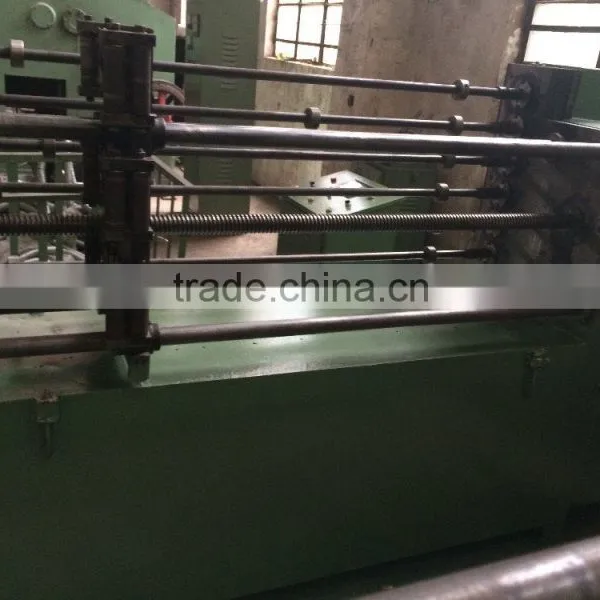

New Type 6 Bars Spring Coiling Machine for Gabion Mesh Machine
Quick Detail:
1. Quantity of spring bars: 4
2. Rotational speed of spring bar: 450r/min
3. Max length of spring coil: 1200mm
4. Layer of spring coil :=> 4
5. Max galvanized wire diameter: 4mm
6. Max PVC wire diameter :=> 5
7. Motor power: 1.5kw
8. Overall size: 2200x90x1500mm
Descrition:
Type 1200-4 Spring Coiling Machine is assembled with LNWL-2 heavy duty hexagonal wire mesh machine
(gabion mesh making machine). The machine is equipped by four pieces of wire coiling bars, which can
rotate in synchrony by to-and-fro way for layers of wire-spiral coiling, to increase the length of wire spiral
and to reduce the time of wire spiral changing during twisting to increase mesh-twisting efficiency. This
machine, after changing the preset exchange gears, can meet the wire-spiral-coiling function for different
diameter of wires.
Competitive Advantage:
1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of gabion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country,and also could supply all the spare parts with cost
price if customer need.
