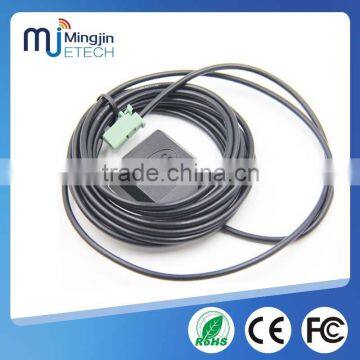

Hot Sale 1575.42MHz Magnetic Gps Antenna for Gt16
US$ 1.8 - 3.5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Gps Antenna
Use:
Automotive
Screen Size:
2.5 inch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Car Magnetic Gps Active Antenna With SMA or FAKRA ConnectorUS$ 1.9 - 3MOQ: 50 Pieces -
Excellent Quality Low Price Water Proof High Gain Sma Connector Gps AntennaUS$ 2.1 - 2.6MOQ: 50 Pieces
-
(factory)manufacture Amplified Internal Gps Active Antenna 25*25US$ 1.5 - 2.2MOQ: 50 Pieces
-
Magnetic Mobile GPS Antenna Sma Male ConnectorUS$ 2 - 3MOQ: 50 Pieces
-
SMA and Fakra Connector Gps Antenna, 1575.42mhz Gps, 1575.42mhz Gps AntennaUS$ 1.8 - 2.4MOQ: 100 Pieces
Type
Gps Antenna
Use
Automotive
Screen Size
2.5 inch
Function
Bluetooth-enabled, DVD/VCD, Mp3/Mp4, Photo Viewer, Radio Tuner
Place of Origin
Anhui, China
Brand Name
Mingjin
Model Number
MJ-GPS-012
Warranty
1 Years
SPECIFICATION
hot sale 1575.42MHz magnetic gps antenna for gt16
| Model | MJ-GPS-012 |
|
Antenna |
Center Frequency |
1575.42±1MHz |
Band Width |
CF±5MHz |
|
Polarization |
RHCP |
|
Gain |
5dBic(Zenith) |
|
V.S.W.R |
<1.5 |
|
Impendance |
50Ω |
|
Axial Ratio |
3dB(max) |
|
Dimension |
37.2*34*11mm |
|
LNA |
Gain |
28±2dB |
Noise Figure |
<1.5 |
|
Filter Insertion Loss |
<3dB |
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
Supply Voltage |
2.2~5V DC |
|
Current Consumption |
5~15mA |
|
V.S.W.R |
<2.0 |
|
Mechanical |
Cable |
RG174 |
Connector |
GT16 |
|
Radome Material |
ABS |
|
Mounting Method |
Magnet/Adhesive |
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
Relative Humidity |
Up to 95% |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
MORE PICTURES

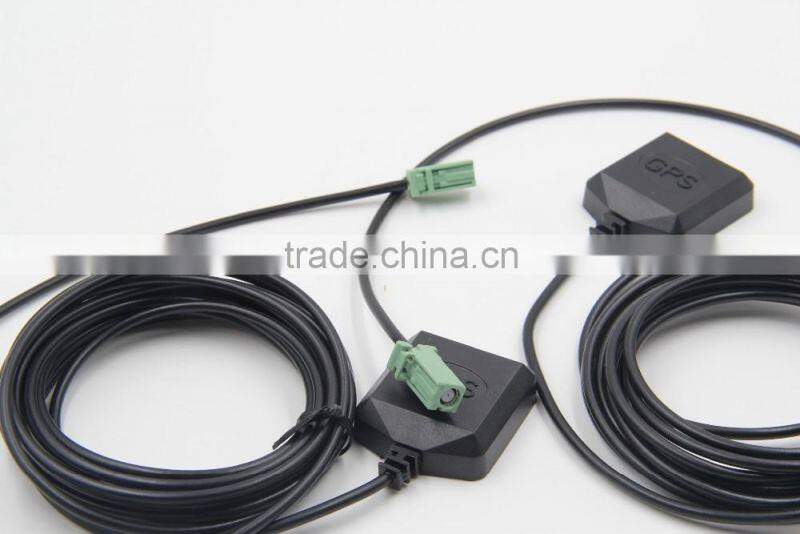

gps antenna for gt16

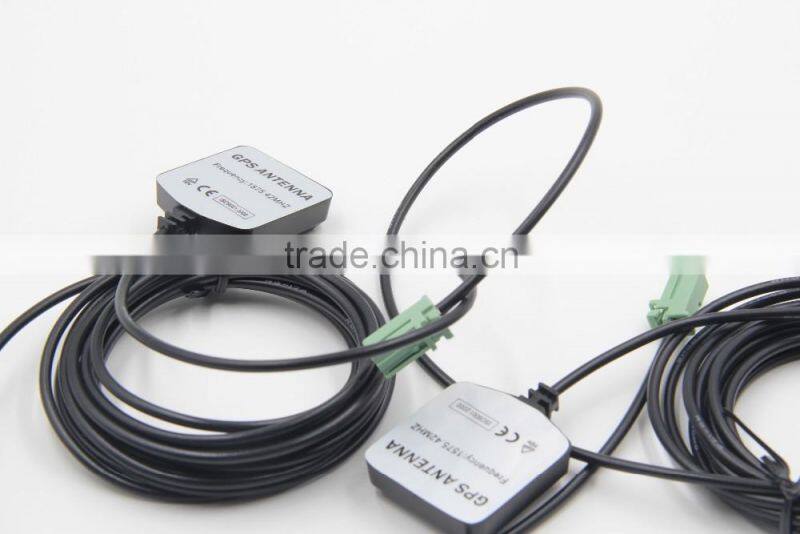

gps antenna for gt16
