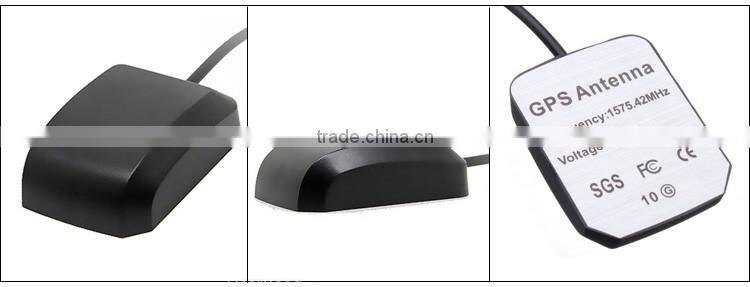

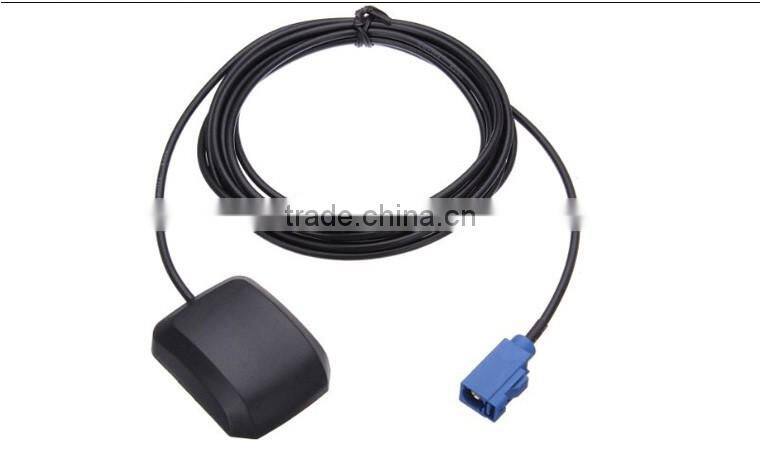

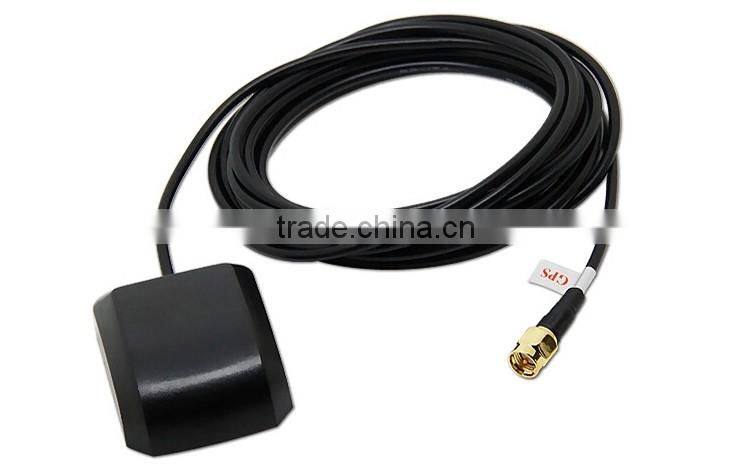

Excellent Quality Low Price Water Proof High Gain Gps Antenna Fakra

(i)Dielectric Antenna

Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization:RHCP

(ii)LNA/Filter

LNA Gain (Without cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA):11 Max

(iii)Mechanical

Weight(gram )<110
Size(mm):44.0×35.5×14.0
Cable Length(m):2,3 etc.

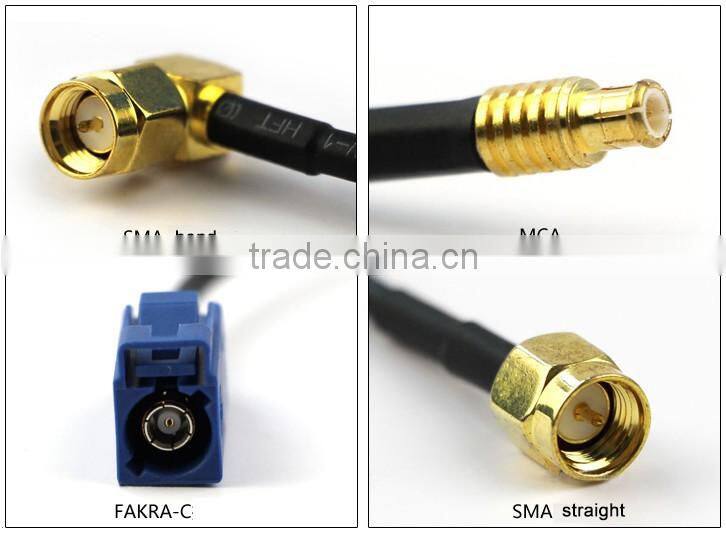

Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Magnetic
Housing:Black

(iv)Environmental

Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof

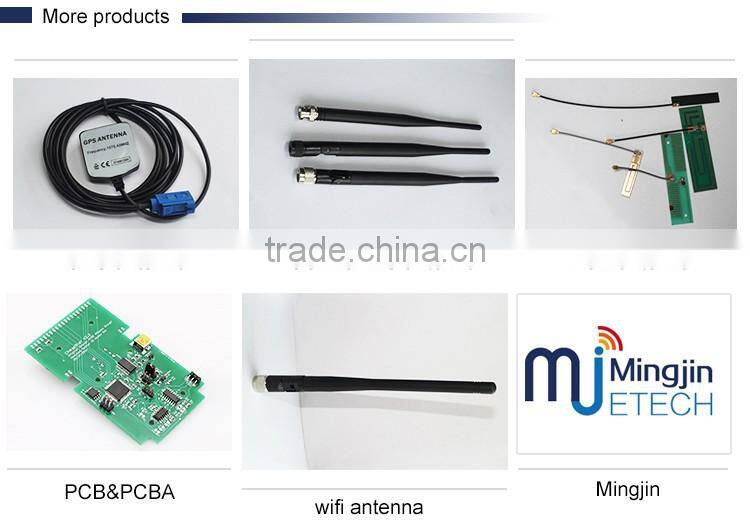

Hefei Mingjin Electronic Technology Co.,Ltd is a professional antenna and connector manufacturer in China. MingJin commits himself to become a well-known Antenna supplier in the worldwide. Our office is Located in Hefei and Factory is in Zhejiang Province with an area of 2000m2 house. Our key products are RF connector, FAKRA connector, GPS Antennas, GSM/UMTS antennas, WIFI Antennas, GPS/GSM/WIFI Antennas, GPS/GSM/FM/AM Antennas, GPS/WIFI Antennas GPS/FM/AM Antennas,2.4GHz antenna,5.8GHz antenna, LTE/4G antenna,3G antenna, DVB-T antenna,etc.
We honestly hope you can enjoy the quality,enjoy the service,enjoy the cooperation with us!
