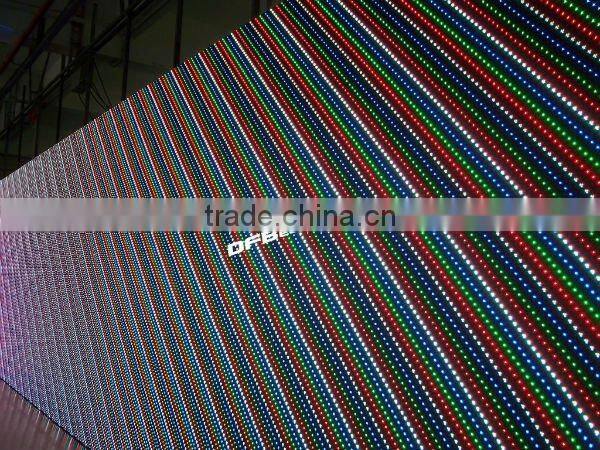

DFB P25 Outdoor Video Led Display Panels

FOB Price

US$ 800 - 3,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Outdoor OLD full color led display

(Solution for Outdoor Far Viewing Distance)

OLD-View Series

Viewing distance: 25-500m

Recommend Minimum Screen size: 18-32 M²

Features:

Pixel pitch 25mm, led density1600pixels/square meter
Brightness up 6000nits.
Applicable in rental business and fixed installation business.
High standard in base material selection, to reach up best cost/performance ratio
IP65 Rating to insure the good working even if under the fierce environment with strong wind, sandstorm, rainstorm…etc.
Professional Color calibration system to make sure the color and brightness uniformity, no “mosaic” “glare” “splash” symptom in white balance.

Specifications:

	Spec
Pitch	PH25	PH25
LED Lamp Model Type	Oval led 3on1	Oval led 3on1
Pixel Config	1R1G1B	2R1G1B
Brightness (6500Kelvin)	6000 Nits	6000 Nits
Panel Size	1000×1000	1000×1000
Panel Resolution	40×40	40×40
IP Rating	IP65/IP54	IP65/IP54
Panel Net Weight(Steel)	50 kgs	50 kgs
Pixel Density (/sqm)	1600	1600
Horizontal Viewing Angle (dgr.)	110	110
Vertical Viewing Angle (dgr.)	60	60
Best Viewing Distance	25m	25m
Recommend Min Screen Size	18 m²	18 m²
Input Voltage	AC110V/220, 60/50Hz
Power Consumption -Max (/Sqm)	0.5 kw	0.6 kw
Power Consumption -Ave. (/Sqm)	0.2 kw	0.25 kw
Driving Mode	Static Constant Current	Static Constant Current
Communication Profile	RS232/WIFI/Network/USB
Gray Scale	16384
Brightness Level	16 Ranks
Refesh Frequency	400-1200Hz Adjustable
Pixels Lost Control	<300ppm
Colors	4.4 Trillion Colors
Operate Temperature	-20°C~70°C
Operate Humidity	10%~95%RH

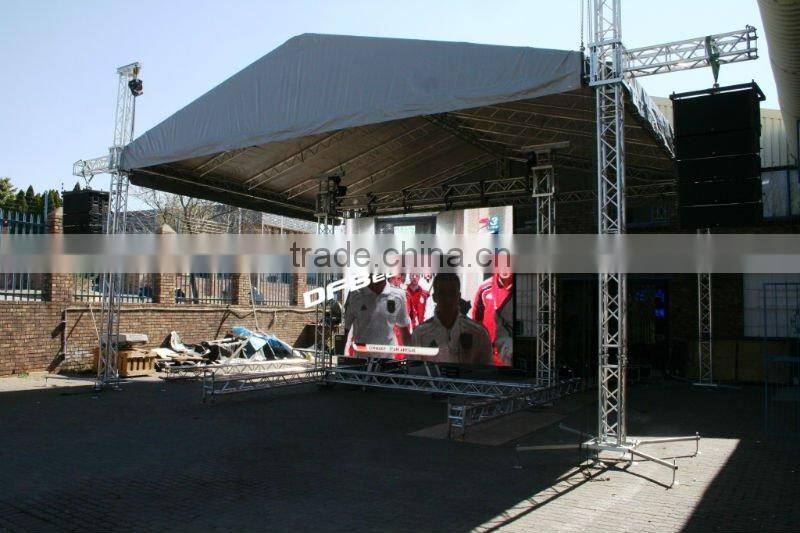

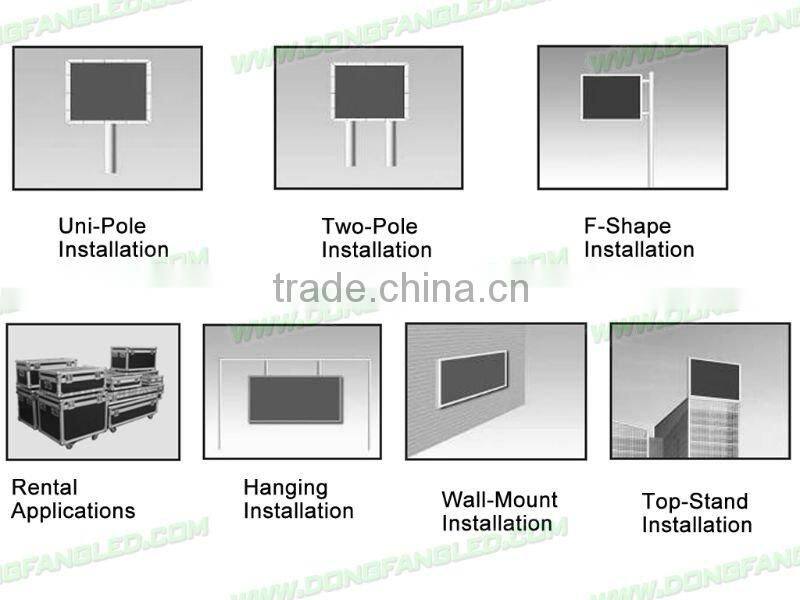

Installations:

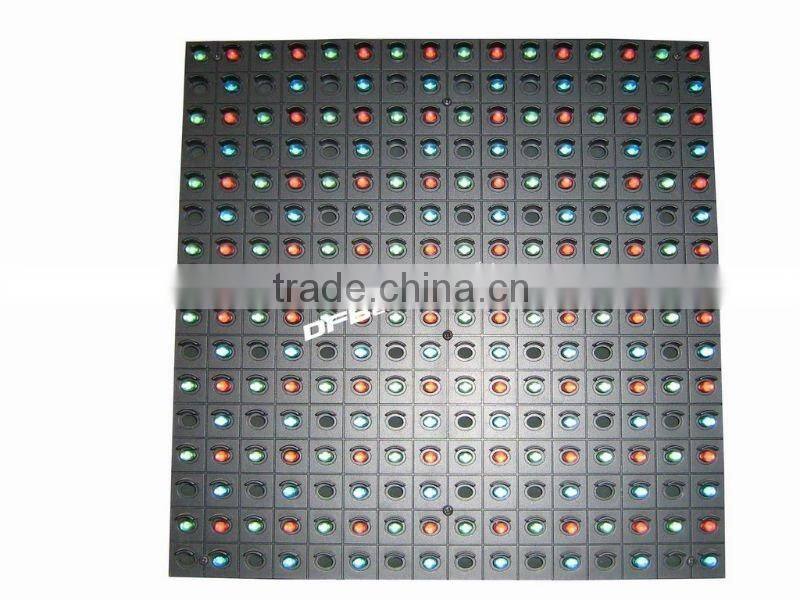

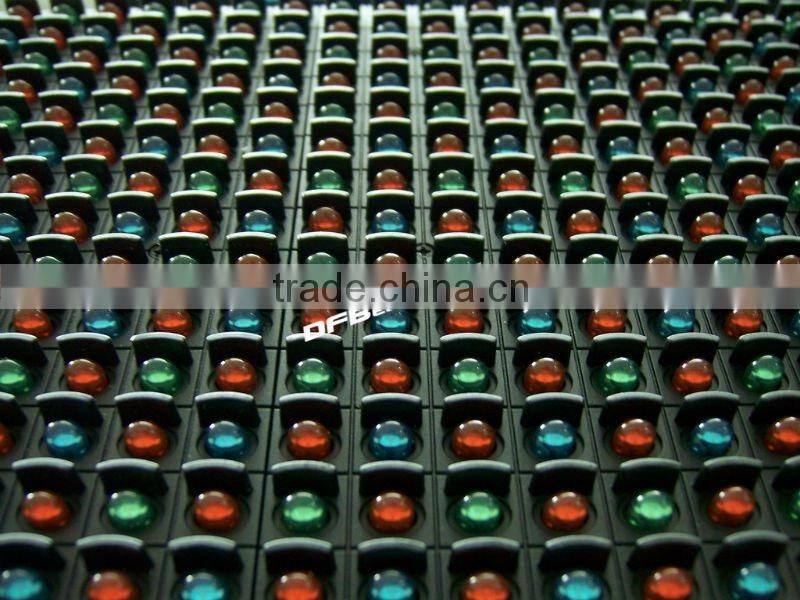

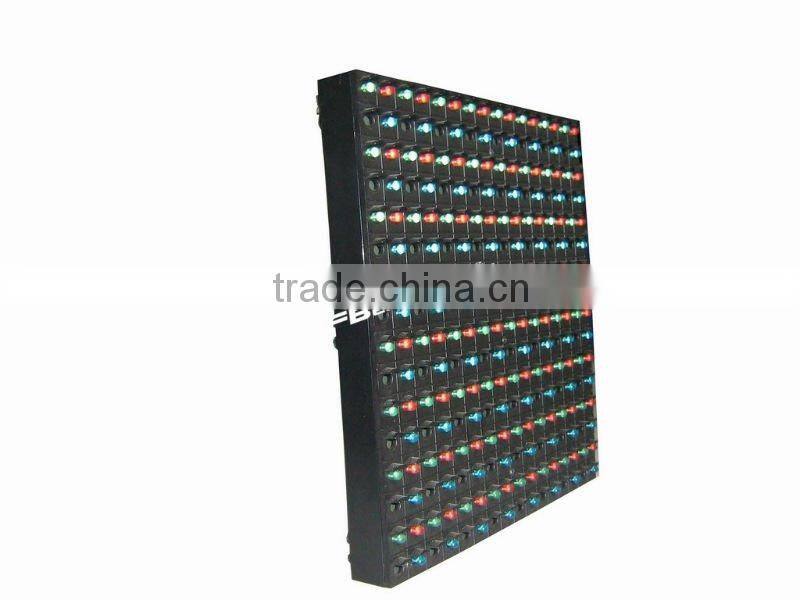

Module Viewing:

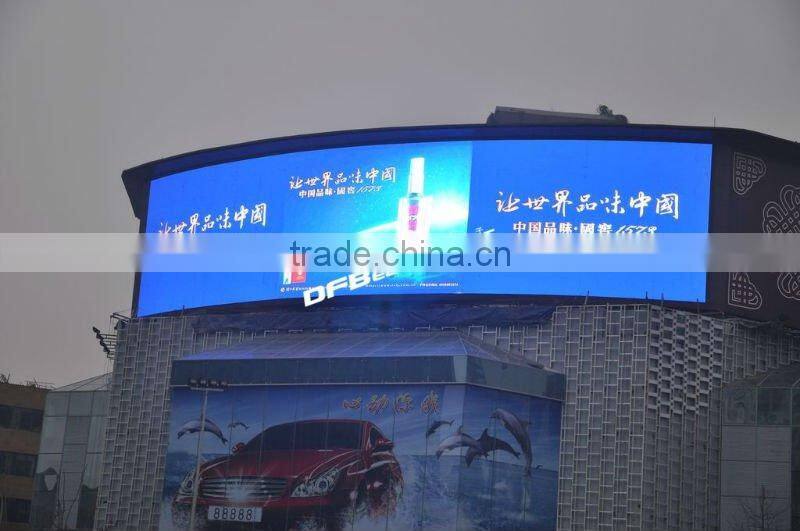

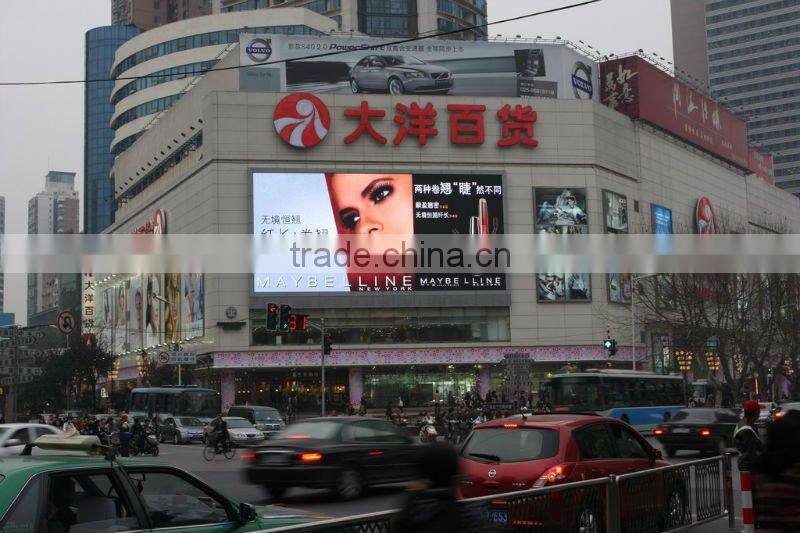

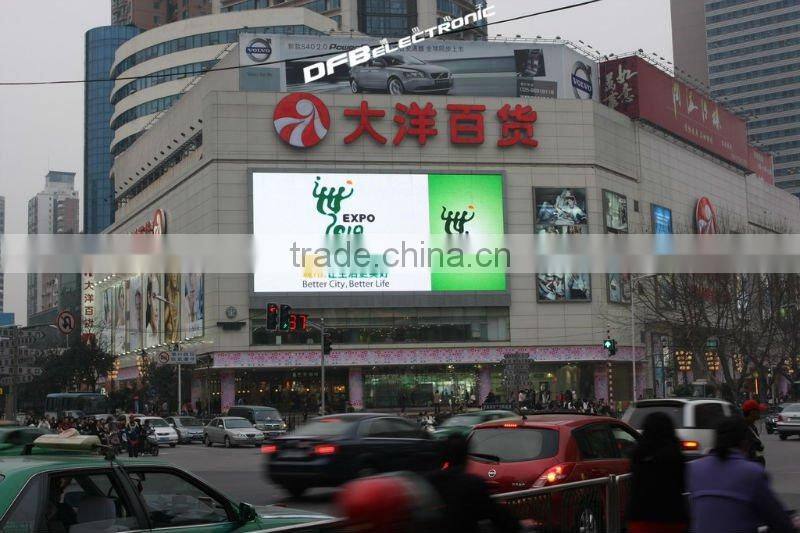

Projects Viewing:
