Home > Electrical & Electronics > GPS > GPS Navigator > Car External Waterproof Antenna GPS With FAKRA Connector
Car External Waterproof Antenna GPS With FAKRA Connector
US$ 1.8 - 2.4
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Gps Antenna
Use:
Automotive
Screen Size:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
External GPS Roof Antenna With TNC ConnectorUS$ 1.8 - 2.4MOQ: 50 Pieces -
Factory Price Active Roof Antenna Gps With TNC ConnectorUS$ 1.8 - 2.4MOQ: 50 Pieces
-
Manufacture Roof Antenna GPS TNCUS$ 1.8 - 2.4MOQ: 50 Pieces
-
Factory Price Manufacture GPS Antenna Portable DigitalUS$ 1.8 - 2.5MOQ: 50 Pieces
-
Factory Price Manufacture Digital GPS Antenna SMAUS$ 1.8 - 2.5MOQ: 50 Pieces
Type
Gps Antenna
Use
Automotive
Screen Size
Other
Function
Bluetooth-enabled, DVD/VCD, Mp3/Mp4, Photo Viewer, Radio Tuner
Place of Origin
China
Brand Name
Mingjin
Model Number
MJ-GPS-05
Warranty
1 Years

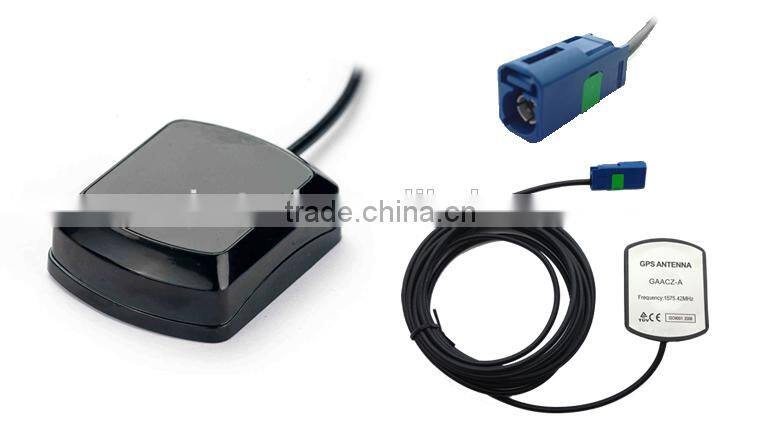

car external waterproof antenna GPS with FAKRA connector
Model |
MJ-GPS-05 |
|
Antenna |
Center Frequency |
1575.42±1MHz 1561MHz |
Band Width |
CF±5MHz |
|
Polarization |
RHCP |
|
Gain |
5dBic(Zenith) |
|
V.S.W.R |
<1.5 |
|
Impendance |
50Ω |
|
Axial Ratio |
3dB(max) |
|
Dimension |
36*46*14mm |
|
LNA |
Gain |
28±2dB |
Noise Figure |
<1.5 |
|
Filter Insertion Loss |
<3dB |
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
Supply Voltage |
2.2~5V DC |
|
Current Consumption |
5~15mA |
|
V.S.W.R |
<2.0 |
|
Mechanical |
Cable |
RG174 |
Connector |
SMA/MCX/FAKRA or others |
|
Radome Material |
ABS |
|
Mounting Method |
Magnet/Adhesive |
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
Relative Humidity |
Up to 95% |
|
Ingress Protection |
IP67 |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
