Excavator Drill Rig

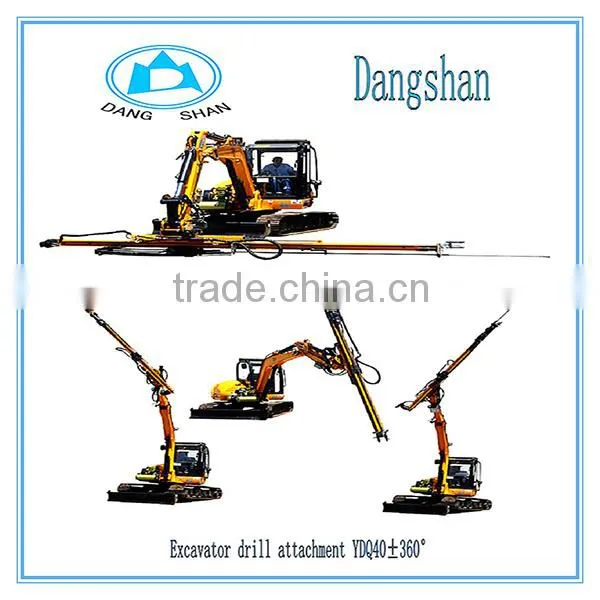

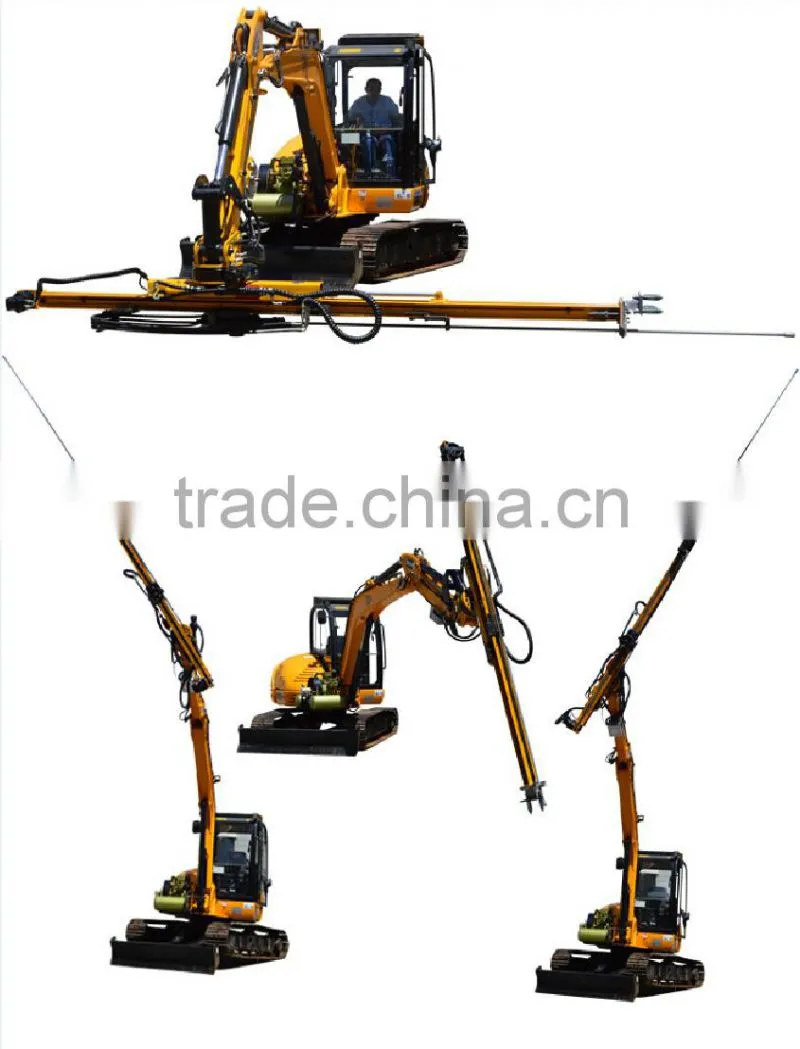

YDQ40 Excavator Drill Attachment:
Parameter | |
Drill rig length |
4100 mm |
Drill rig weight |
280 Kg |
Drill depth |
≤6000 mm |
Drill rig rotation |
±180° |
Air flushing |
1.0CBM piston compressor |
Control system |
Electric&Hydraulic |
Excavator:
Our dril attchment suit for six-eight tons excavator.
Like JCB8056, JCB8061, CAT, HITACHI, KOBELCO, Volvo, DOOSAN and so on.
We can supply whole excavator drill machine with new JCB8061 excavator
from JCB Shanghai Manufactory.
HD30 Hydradulic Drifter
The HD30 is made for general excavations, quarrying and bolting with hexagonal shank rods with a shank size of 108mm(41/2")*22mm(7/8").
The HD30 can use water flushing or air flushing.
HD30 is a hydraulic rock drill to drill diameter 32mm(1¼") to 50mm(2") holes.
SIZE |
600MM*173MM*190MM |
WEIGHT |
30KG |
POWER |
7KW |
WORKING PRESSURE |
15-17.5MPA |
OIL FLOW |
30-36L |
IMPACT ENERGY |
60-65J |
IMPACT FREQUENCY |
55-60HZ |
TORQUE |
60-65NM |
ROTATION |
250-300R/MIN |
AIR/WATER FLUSHING PRESSURE |
5-8KG/3-5KG |
AIR/WATER CONSUMPTION |
0.6m³/min / 10L/min |

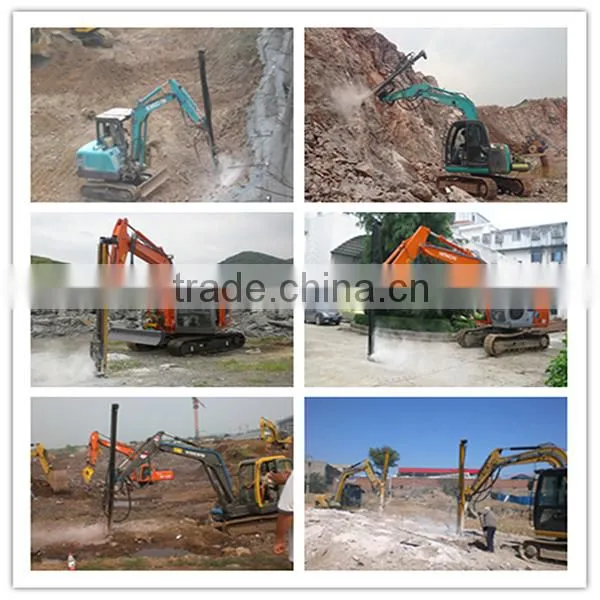

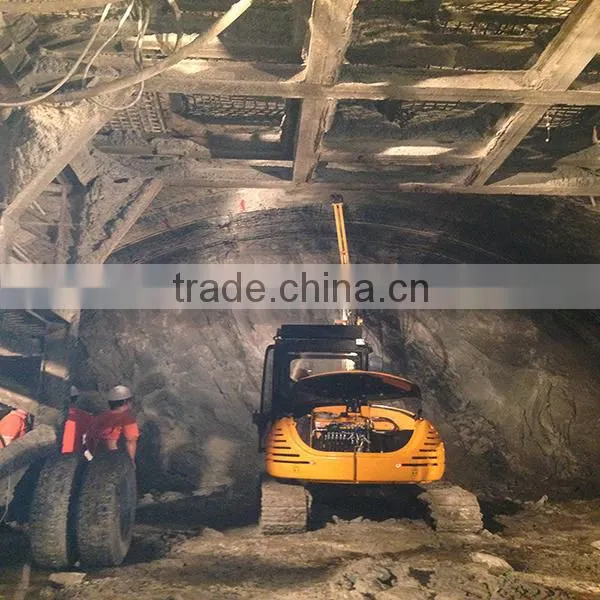

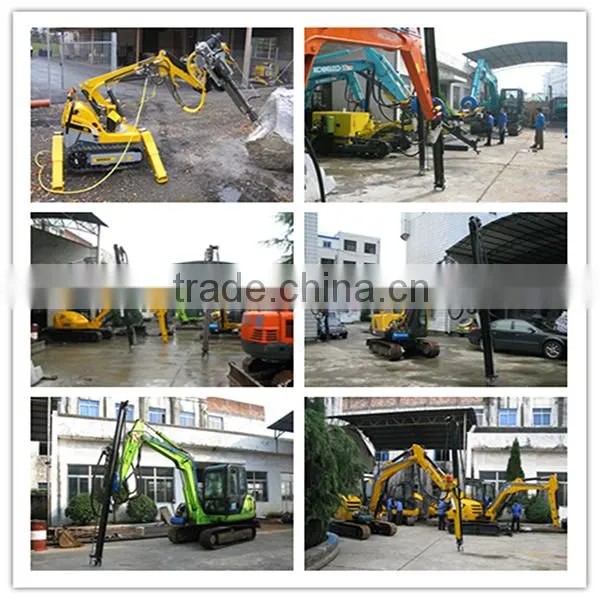

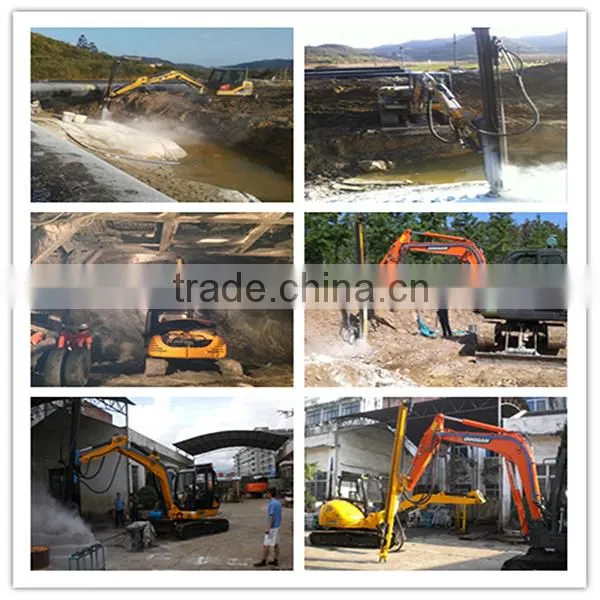

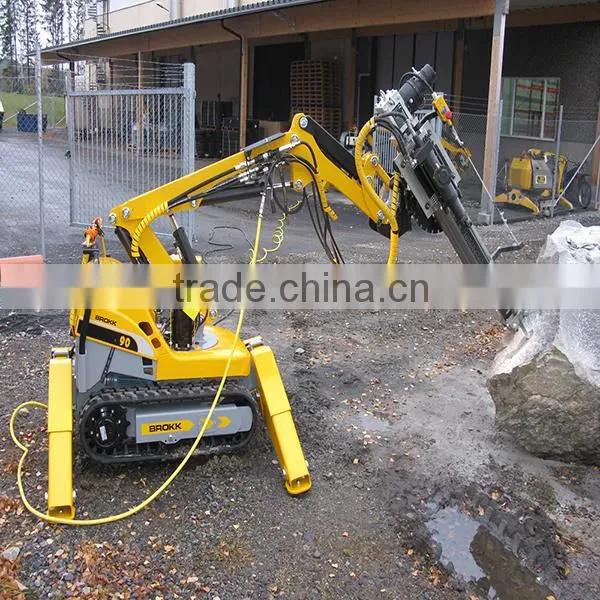

More pictures are as follows
