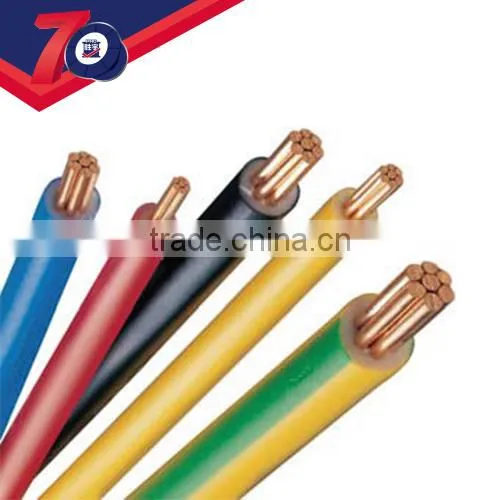

H07V-R CABLEH07V-R(NYA) 450/750V (Single Core Copper Electrical Wire)
Application
Insulated conductor(Electrical Wiring H07V-R 450/750V 1.5~50mm2 ) used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.
National DIN VDE 0281 part 1; DIN VDE 0281 part 3; DIN VDE 0293; DIN VDE 0295
Application
6491X Cable H07V-R/H07V-U to BS6004 is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Voltage:450/750V
Code:H07V-R
Standards:HD 21.3 S3, VDE 0281-3, BS 6004
Construction:1- Stranded Copper Conductor, 2- PVC insulation
Application:Preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation.
Technical Data:Max. operating temperature 70 ºC, Short circuit temperature 160 ºC
