Mobile Trailer Diesel Genset With Two Wheels

Name: Mobile Trailer Diesel Genset With Two Wheels
Brand: WD POWER
SKU: 109229819
Availability: InStock

Mobile Trailer Diesel Genset With Two Wheels thumbnail-1

Mobile Trailer Diesel Genset With Two Wheels thumbnail-2

Mobile Trailer Diesel Genset With Two Wheels thumbnail-3

Mobile Trailer Diesel Genset With Two Wheels photo-1

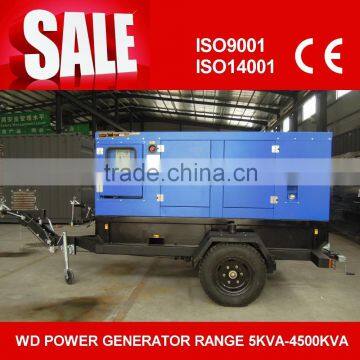

Mobile Trailer Diesel Genset With Two Wheels photo-2

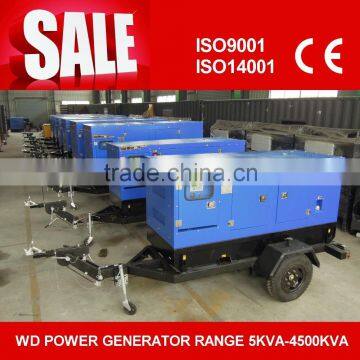

Mobile Trailer Diesel Genset With Two Wheels photo-3

US$ 8,000 - 10,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

WD POWER

Model Number:

WDPG-C100S

Contact Supplier Request Quote Chat Now

Fuzhou World Power Generation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou port Xiamen port Guangzhou port (Nearest port)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name WD POWER

Model Number WDPG-C100S

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz(60Hz is available)

Rated Power 100kVA/80kW (Prime Power)

Rated Voltage 220V/380V,230V,400V,240V/415V

Rated Current 139.1A-151.9A

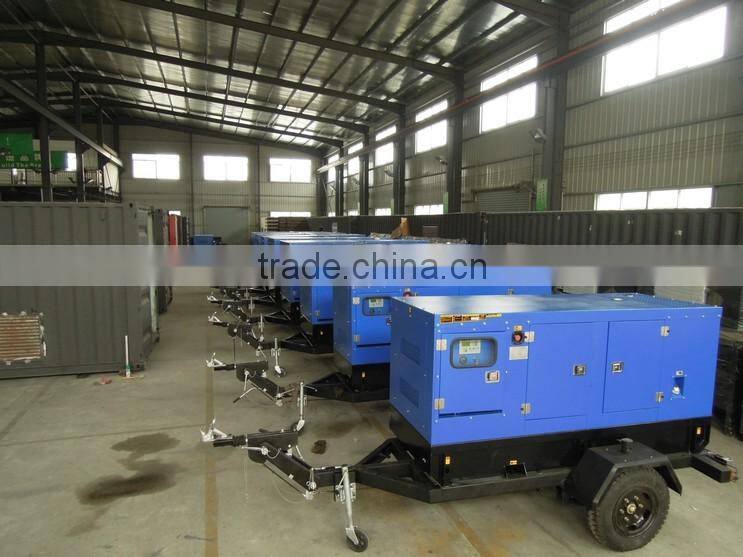

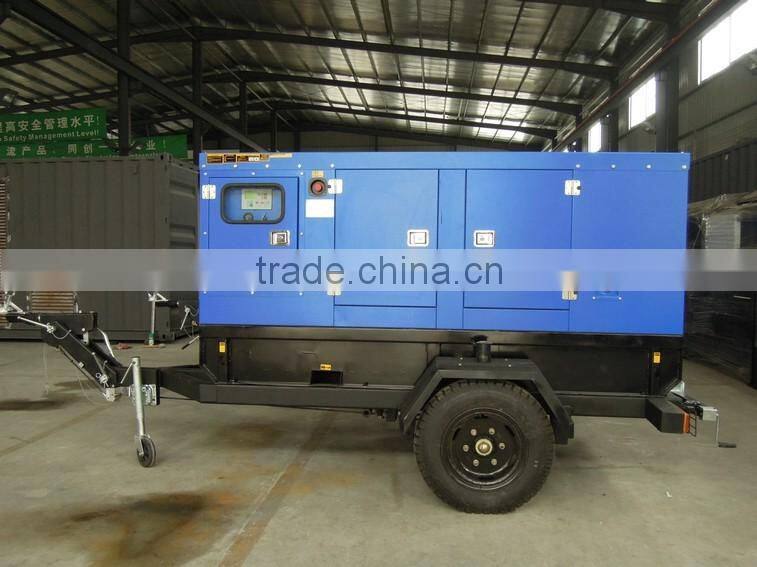

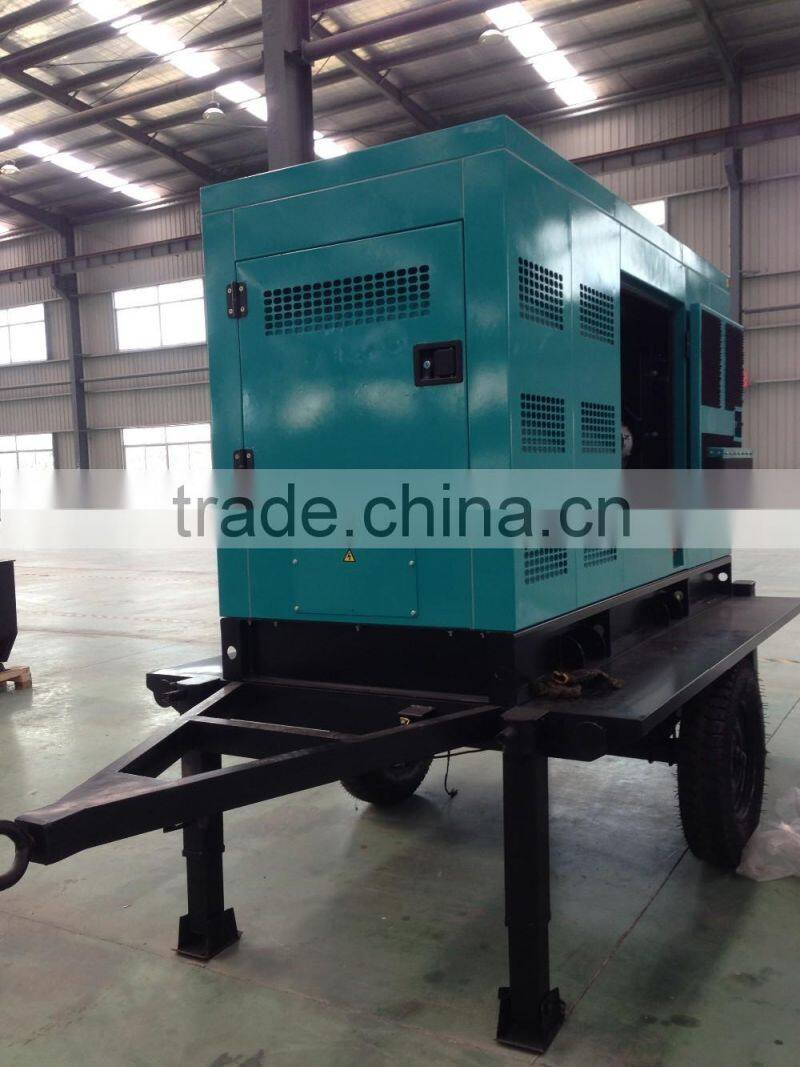

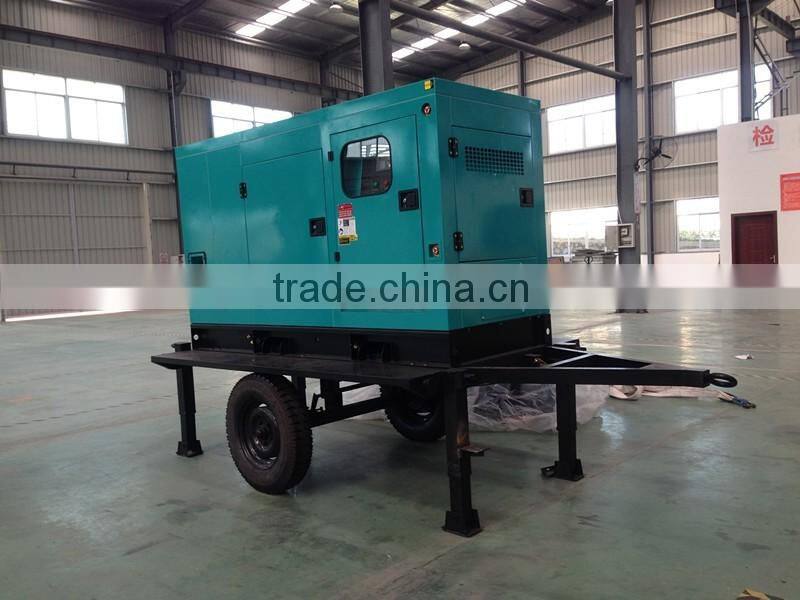

mobile trailer diesel genset with two wheels

Product Description

WDPG-C100/WDPG-C100S Generator Pictures

50Hz-Three Phase-Power Factor 0.8
Rating	Prime Power	Standby Power	Rated Current
Voltage (V)	KVA/KW	KVA/KW	(Amp)
220V/380V	100/80	110/88	151.9
230V/400V	100/80	110/88	144.3
240V/415V	100/80	110/88	139.1

Engine Specification General Performance
Engine Model:	6BT5.9-G2
Engine Type:	4 cycle, in-line, 6-cylinder
Engine Speed:	1500 r.p.m
Base Output Power:	86kw
Standby Power:	92kw
Governor Type:	Electronic
Air Intake Way:	Turbocharged
Displacement:	5.9L
Cylinder Bore * Stroke:	102mm × 120mm
Compression Ratio:	17.3:1
Coolant Capacity Engine Only	7.9 Litres

Alternator Specification General Performance
Alternator Model:	Leroysomer LSA44.3S5
Phase	3 Phase
Power Factor	0.8
Drip Proof	IP 23
Insulation class	H
Voltage regulation	± 0,5 %
Altitude	≤ 1000 m
Over speed	2250 min -1

Scope of supply
Standard	Optional
High efficient water cooled diesel engine	Automatic Transfer Switch (A.T.S)
Brushless alternators (Class H, with AVR.)	Water - Fuel separator
Heavy duty rubber anti-vibration mountings	Water heater for severe cold weather
24V starter batteries and connecting cables	Lub-oil heater for severe cold weather
Industrial silencer	Low coolant level sensor
Auto start Digital Control Panel	Dual wall base fuel tank
Radiator with cap and drain point	Fuel level sensor
Fully guarded engine driven fan	ABB brands Breakers
Circuit Breaker	Separated standing fuel tank
Soundproof canopy for silent genset	Alternator Space Heater
Oil filter - Diesel filter - Air filter	DSE6020,DSE7320,ComAp AMF25
50℃ Radiator	Customized 24H,48H base fuel tank

Control System&Circuit breaker

Control System

Auto & digital control panel is an entry level control panel which includes all the features

of meter panel and provides full power monitoring and protection facilities.

All operating parameters are with LCD display.

Circuit Breaker

The generators are supplied together with a circuit breaker that permits a thermal

protection against overloads and magnetic protection against short-circuit.

Benefits of silent type generator

1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.

For silent type, the noise level can be 65-72db(A) at 7M; with silent canopy, the genset can

be soundproof, rainproof, rustproof, dustproof and more safe.

Detailed pictures

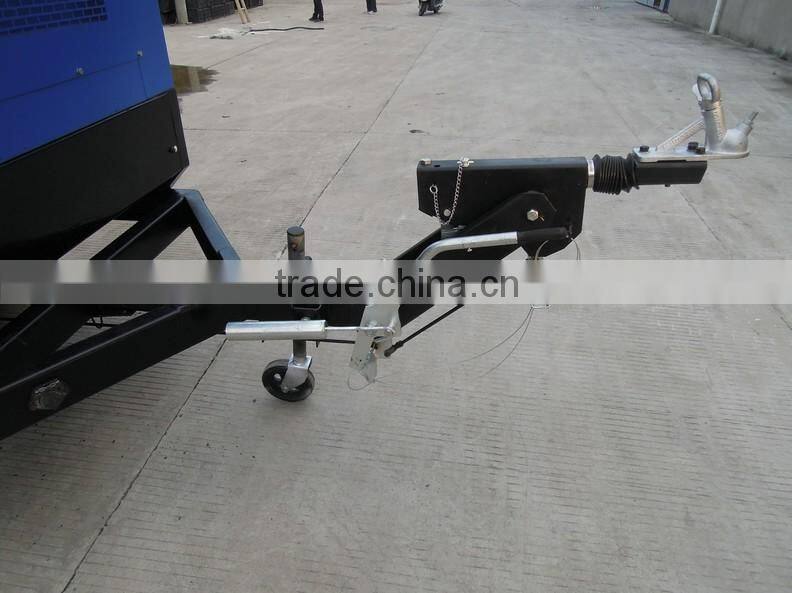

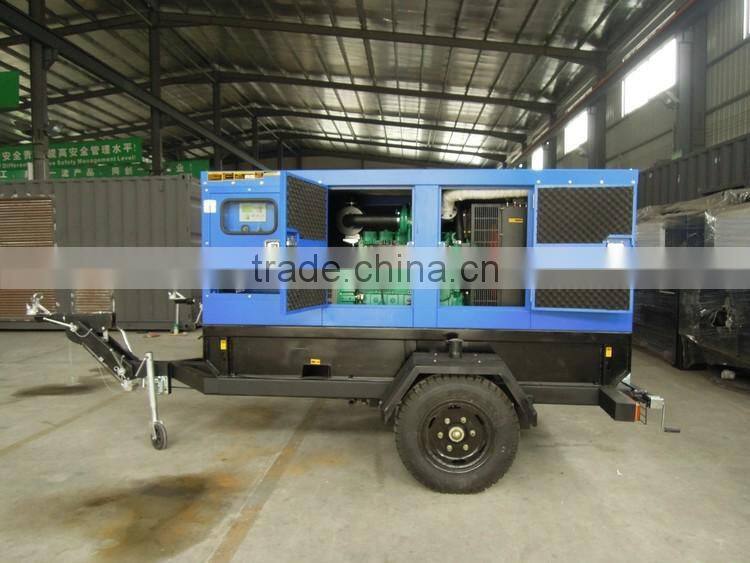

W.D Power Generator More detail pictures

W.D Power Certificates

W.D Power genset has been certified by ISO9001, ISO14001:2004, CE, BV, EPA, SONCAP etc.
