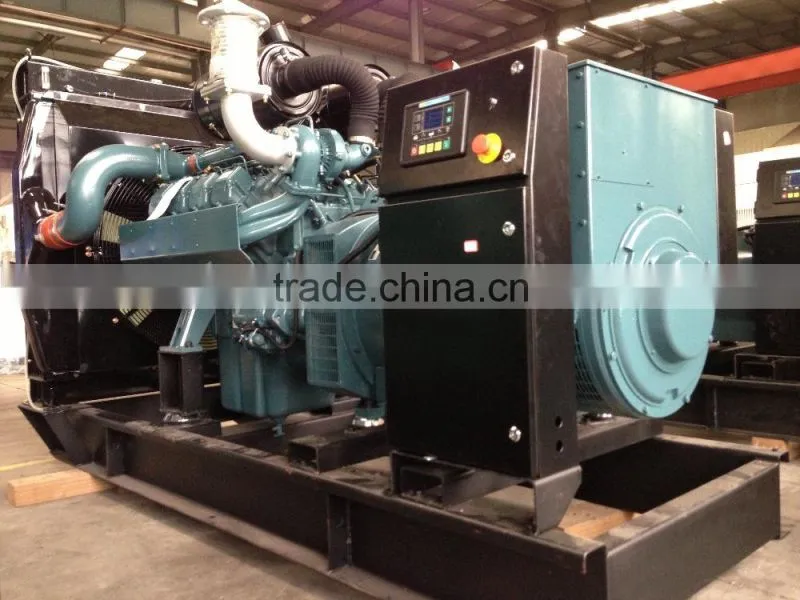

Remote Control Generator by Doosan Diesel Engine

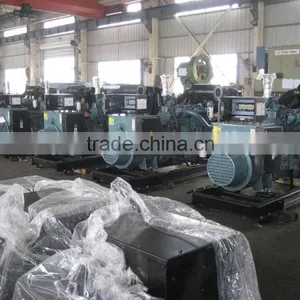

Remote Control Generator by Doosan Diesel Engine thumbnail-1
Remote Control Generator by Doosan Diesel Engine photo-1
US$ 28,000 - 32,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Doosan (Daewoo)
Model Number:
WDPG-DS370 /WDPG-DS370S
Contact Supplier Request Quote Chat Now
Fuzhou World Power Generation Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou port Xiamen port Guangzhou port (Nearest port)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Doosan (Daewoo)
Model Number WDPG-DS370 /WDPG-DS370S
Output Type AC Three Phase
Speed 1500rpm
Frequency 50Hz(60Hz is available)
Rated Power 370kVA/296kW
Rated Voltage 220V/380V,230V,400V,240V/415V
Rated Current 485.5A-562.1A

  remote control generator by Doosan diesel engine

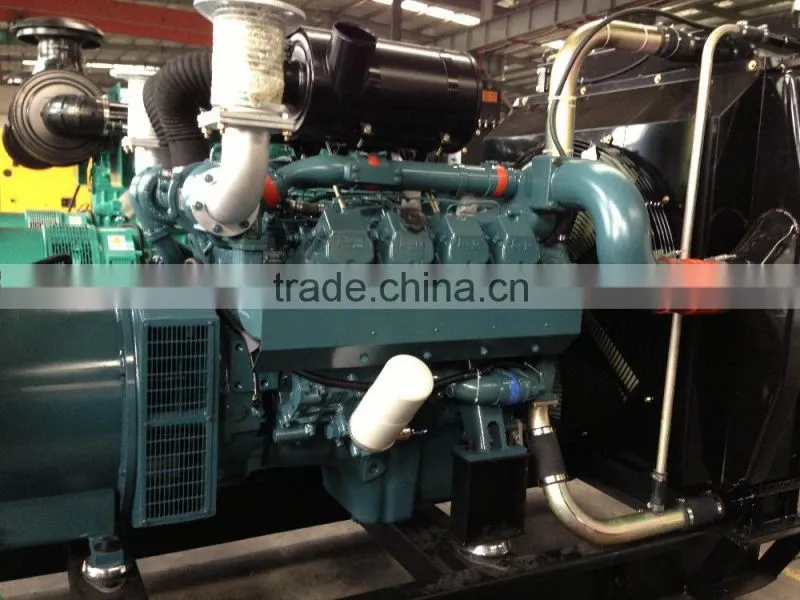

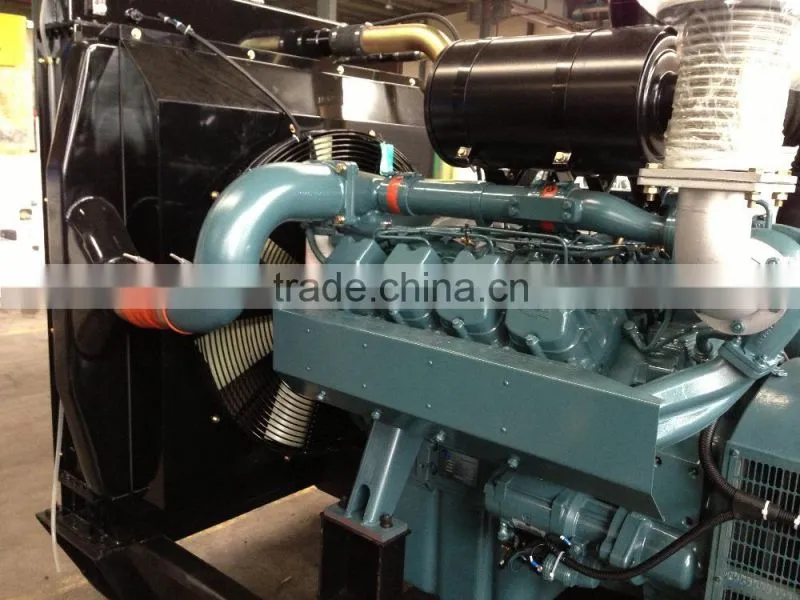

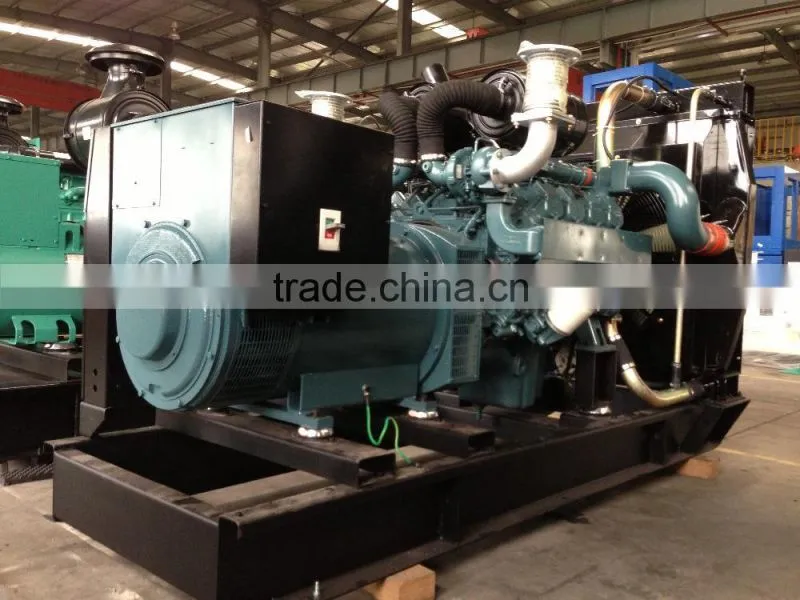

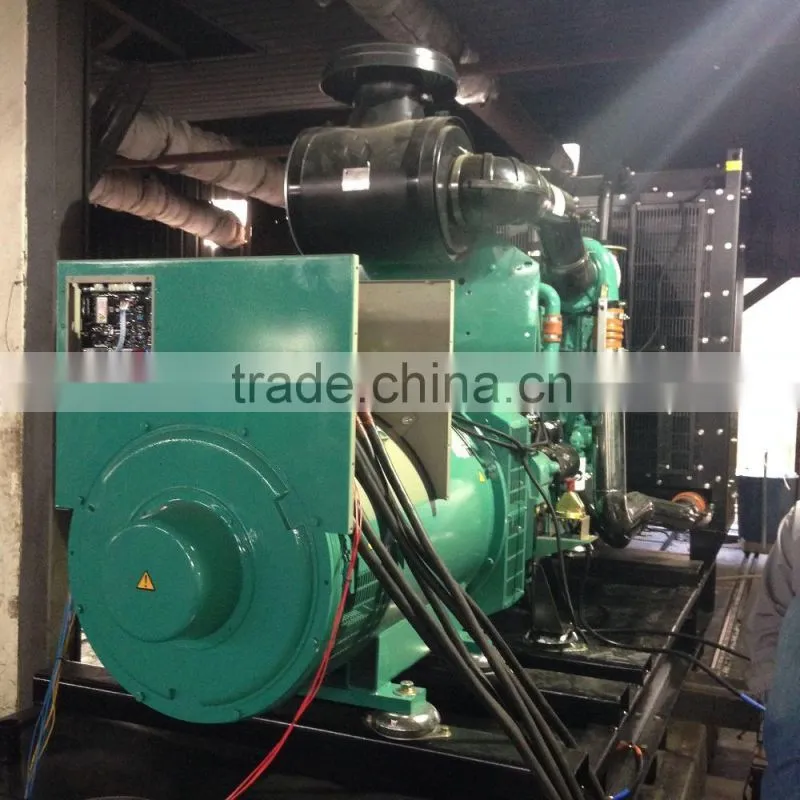

Detailed Images



W.D Power Generator Pictures in details

remote control generator by Doosan diesel engine

remote control generator by Doosan diesel engineremote control generator by Doosan diesel engineremote control generator by Doosan diesel engine

Product Description

50Hz-Three Phase-Power Factor 0.8

Rating

Prime Power

Standby Power

Rated Current

Voltage (V)

KVA/KW

KVA/KW

(Amp)

220V/380V

370/296

407/325

562.1

230V/400V

344/275

375/300

534.3

240V/415V

344/275

375/300

514.7



Engine Specification General Performance

Engine Model:

DOOSAN DAEWOO P158LE-1

Engine Type:

4 cycle, V-type, 8-cylinder

Engine Speed:

1500 r.p.m

Base Output Power:

327kW/438Hp

Standby Power:

362kW/485.3Hp

Governor Type:

Electronic

Air Intake Way:

Turbocharged & Intercooled (air to air)

Displacement:

14.618L

Cylinder Bore * Stroke:

128mm × 142mm

Compression Ratio:

15:1

Coolant Capacity Engine Only

20 Litres



Alternator Specification General Performance

Engine Model:

Stamford     HCI444FS

Phase

3 Phase

Power Factor

0.8

Drip Proof

IP 23

Insulation class

H

Voltage regulation

± 0,5 %

Altitude

≤ 1000 m

Over speed

2250 min -1



Scope of supply

Standard

Optional

High efficient water cooled diesel engine

Automatic Transfer Switch (A.T.S)

Brushless alternators (Class H, with AVR.)

Water - Fuel separator

Heavy duty rubber anti-vibration mountings

Water heater for severe cold weather

24V starter batteries and connecting cables

Lub-oil heater for severe cold weather

Industrial silencer

Low coolant level sensor

Auto start Digital Control Panel

Dual wall base fuel tank

Radiator with cap and drain point

Fuel level sensor

Fully guarded engine driven fan

ABB  brands Breakers

Circuit Breaker

Separated standing fuel tank

Soundproof canopy for silent genset

Alternator Space Heater

Oil filter - Diesel filter - Air filter

DSE6020,DSE7320,ComAp AMF25 controller

50℃ Radiator

Customized 24H,48H base fuel tank

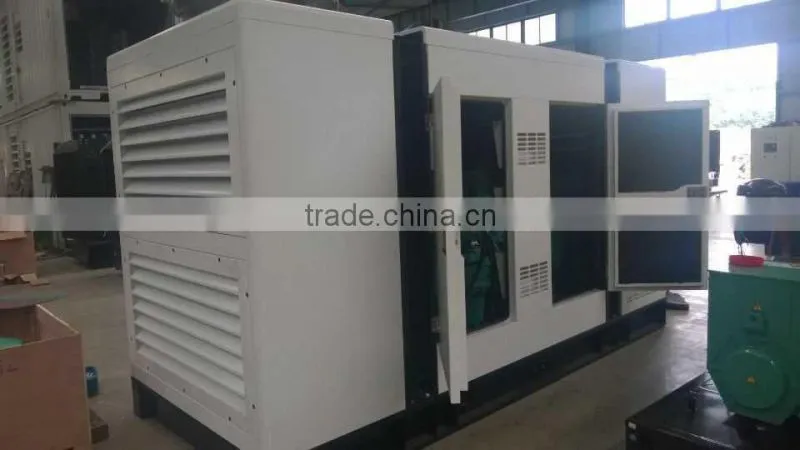

Benefits of Silent Type Generator Sets

1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.



For silent type, the noise level can be 70-76db(A) at 7M; with silent canopy, the genset can

be soundproof, rainproof, rustproof, dustproof and more safe.



Company Information

Fuzhou World Power Generation Co.,Ltd (W.D Power) is a generator producer of Generator Sets

with 12years factory manufacture experience. The power range of W.D Power generator set is from

5KVA to 3,000KVA. All engines equipped with world famous brands mentioned, i.e. CCEC/DCEC(U.S.),

DEUTZ (Germany), MTU(Germany)& JV MITSUBISHI etc. As well as famous brand alternator STAMFORD,

LEROY SOMER, MARATHON etc. All our products have been certified by ISO9001 Quality Management,

ISO14001:2004, CE, BV, EPA, SONCAP, and SGS certificate etc.





 remote control generator by Doosan diesel engine

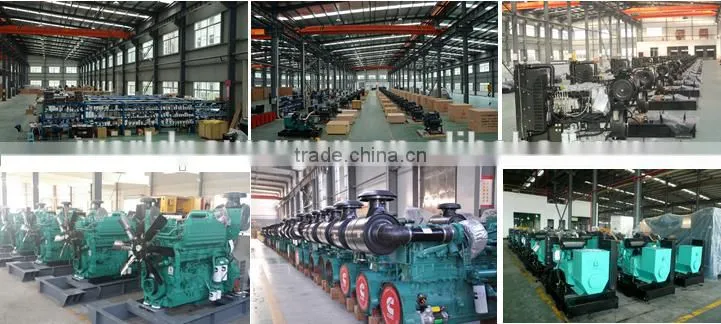

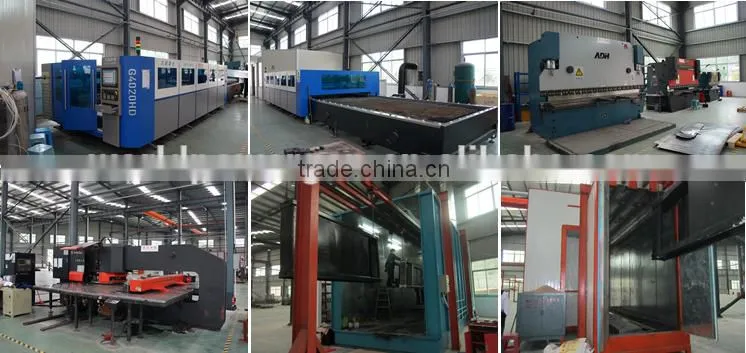

W.D Power Factory& Production Flow

remote control generator by Doosan diesel engine

remote control generator by Doosan diesel engine



W.D Power Testing System



Before deliver gensets to you each generator set we will test the quality for 1.5 hour with

below performance:

--Different loading performance (0%,25%,50%,75%,100%)

--Heat run test

--Insulation resistance test

--starting test

--tests of all alarm and timing relays



W.D Power Package&Delivery

Plastic Poly-ether (Export Standard),Wooden case,Plywood case.



Warranty

W.D Power Warranty

12months or 1000hr (subject to the earlier mature term)

Our Services

W.D Power Service



1. Production capability 300Set/month and Quickly delivery time

2. Competitive price: Perkins,DCEC/CCEC,Deutz,Stamford,Leroysomer OEM available

3. Full one hour factory quality testing with various loading at 25%,50%,75%,100%,110%

4. 1000hours or 12months warranty

5. Spare parts support and W.D Power technical support also technical training served.

6. R&D team support and sales team 24hours on-line service



Manual and catalog

Full set of Engine/Atlernator/Generator operation&maintenance manuals are provide

with each generator.

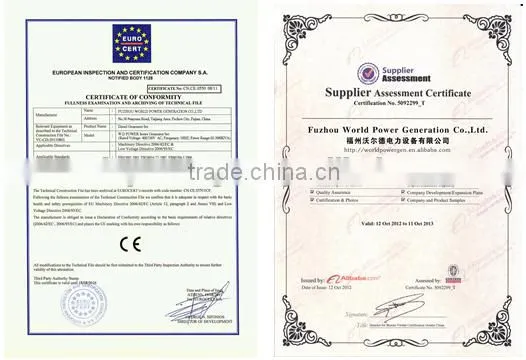

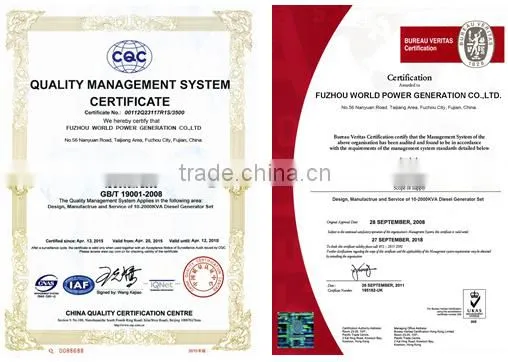

W.D Power Certifications

All our products have been certified by ISO9001,ISO14001:2004, CEetc.



remote control generator by Doosan diesel engine

remote control generator by Doosan diesel engine

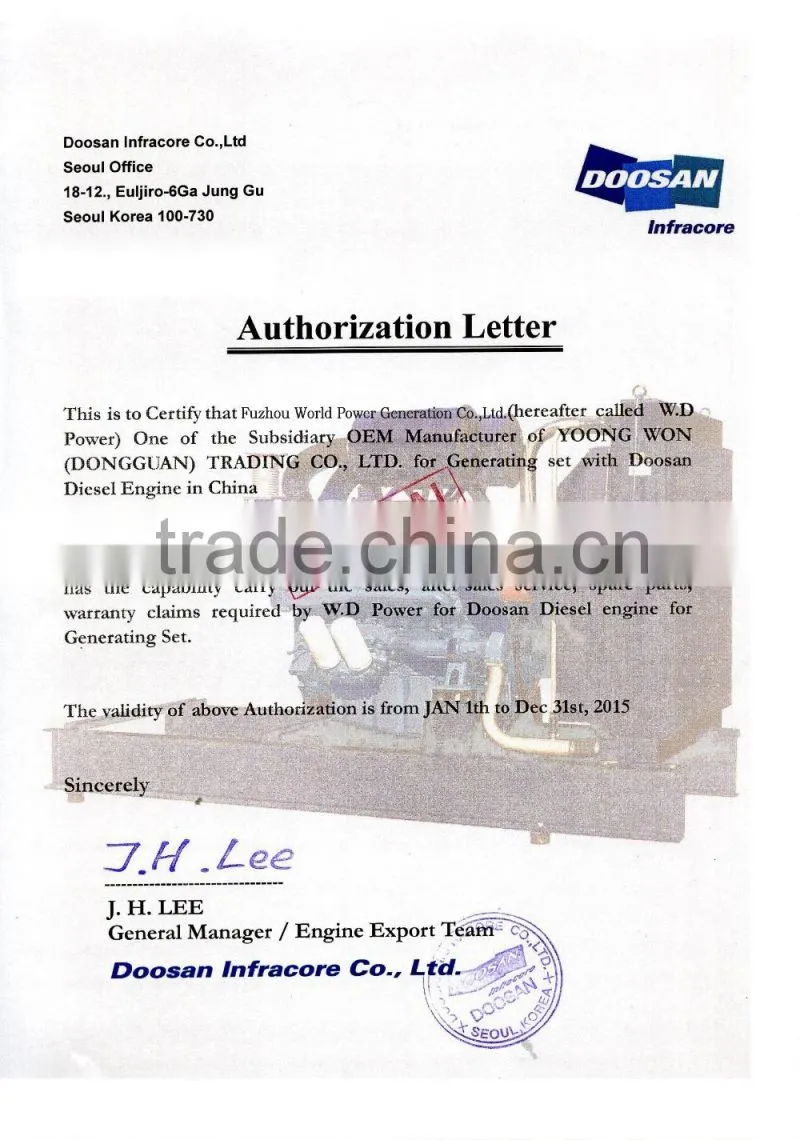

Brand introduction



Introduction to  Doosan

DOOSAN Group founded in 1896 is one of the largest consortium in Korean currently. Doosan Engine is established after the acquisition of Daewoo Integrated Machinery Co., Ltd in 2005, named Doosan Engineering Machinery, and continue todevelop and launch a new generation product with first class and reliable performance base on the original Daewoo engine.

remote control generator by Doosan diesel engine

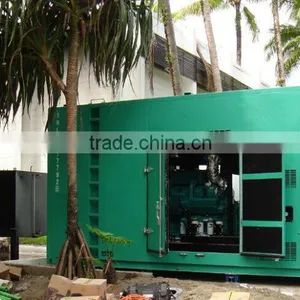

Complete project

2014.6-2015.3 Some W.D Power Complete Power Solution Project Reference



Case NO.1-1500kva standby UK Engine generator sets

PROJECT SITE:South Africa

PRODUCT:4 units 1500kva Container Generator

APPLICATION:Main power supply for Power Station

remote control generator by Doosan diesel engine



Case NO.2-575kva Open type Generator

PROJECT SITE:Australia

PRODUCT:1 units 575kva diesel generator sets, ComAp AMF 25,Stamford alternator with PMG,

ABB circuit breaker.

APPLICATION: Power supply to black start purpose

remote control generator by Doosan diesel engine

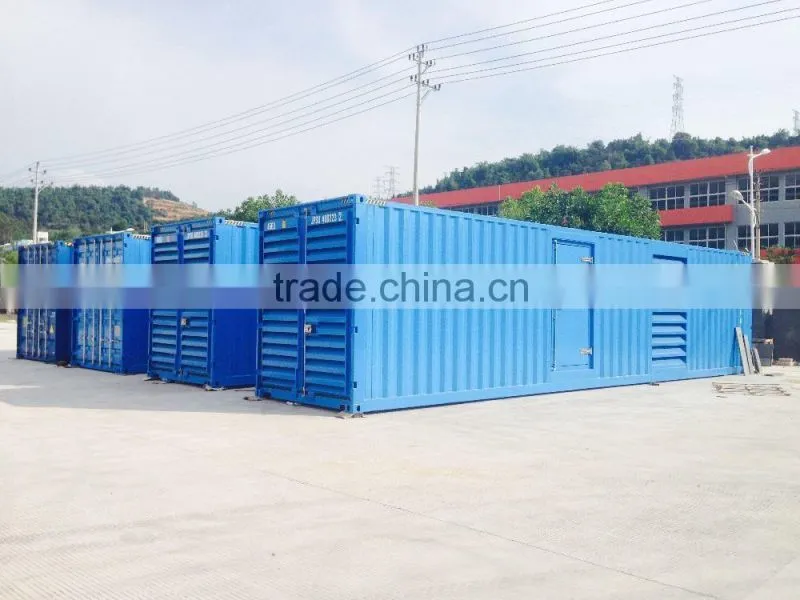

Case NO.3-1000kva Containerized Generator

PROJECT SITE:Atlantic ocean area

PRODUCT:2 units 1000kVA diesel generator sets,ComAp IG-NT Controller,ABB circuit breaker.

APPLICATION:Main power supply for hotel

remote control generator by Doosan diesel engine

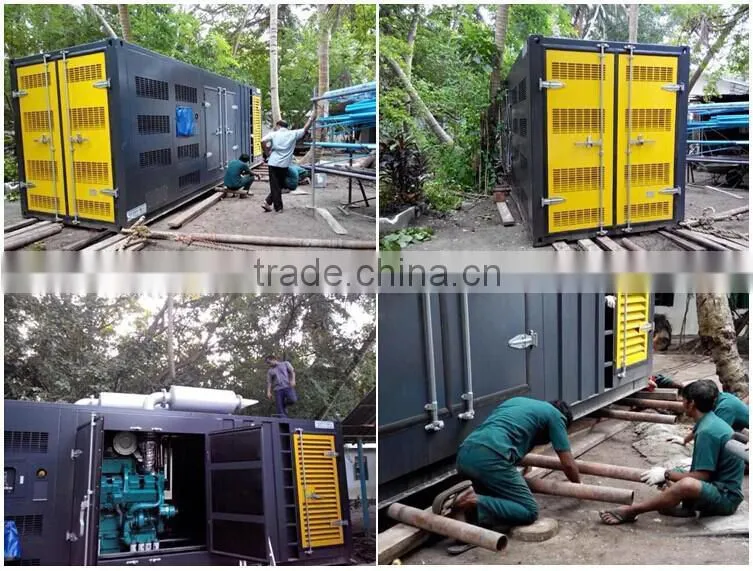

Case NO.4-750kVA Customized Containerized Generator

PROJECT SITE:Maldives

PRODUCT:1 units 750kVA Customized Containerized Generator Set ,Woodward controller,

ABB circuit breaker.

APPLICATION:Standby power supply for hotel

remote control generator by Doosan diesel engine

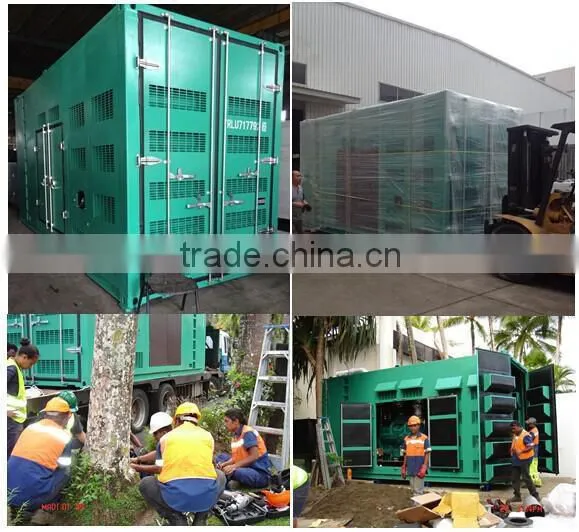

Case NO.5-500KVA Genuine Customized Canopy Generator

PROJECT SITE:Singapore

PRODUCT:1 units 500kVA Customized Canopy Generator

APPLICATION:Industry

remote control generator by Doosan diesel engine
