Specifications
Full Automatic layer cake product line1, Stainless Steel
2, Capacity: 5-6T/D
3, Complete & Automatic
4, PLC control
Full Automatic Layer Cake Machine
Company Profile
Shanghai Fengxian Food & Drink Complete Sets of Equipment Head Factory was founded in 1975. As the largest & professional manufacturer of the food machinery for more then 35 years' experience in making cake, biscuit, potato chips and rice cracker machines. Our company has passed the ISO9001:2008 Certification, we also got the AAA Credit Certification and 41 National Patents.
Description of the Layer Cake Machines
The whole set equipment consists of beating machine, material storing buckets, flour-mixing machine, gas fired & steel belt type tunnel oven, return transport belt conveyor, strip-cutting machine, crean or jam filling machine, cake turn-over machine, compaction machine, horizontal cut-off machine, cooling machine etc.
The main technics order: pour the mixing flour directly on the steel belt type to be baked, after being cooked , it will become a cake belt, at the terminal of the belt conveyor, it will be shoveled down to the return belt conveyor underneath, at this time the cake belt has been transported back ti the place where is under the cream or jam filling machine, it will be upgrades by the slop to the working platform where the cake belt will be cutted to the cake strip lengthways, then fill the cream or jam, turn over the cake belt one space one, press one on the side on slightly, after being horizantal cutted off, the favorite food is made---Layer Cake.
Product Process of the Layer Cake Machine
Raw material mixing---cake perfusion machine---tunnel oven---cooling conveying----.pressing flat----cutting edge---cutting shapes--- ---Rolling----.pressing straight---- Turn over machine---sterilization line---milk mixing machine---transition conveying----Turning round the plates and conveying machine----packaging machine
Single Machine Pictures of The Making Line
oiling machine & batter hopper
oiling machine & batter hopper
cake baking oven
cake out from baking oven
cake oil spraying machine
cake strilization conveyor & forming line
cake turning machine
cake turning machine
cake press machine

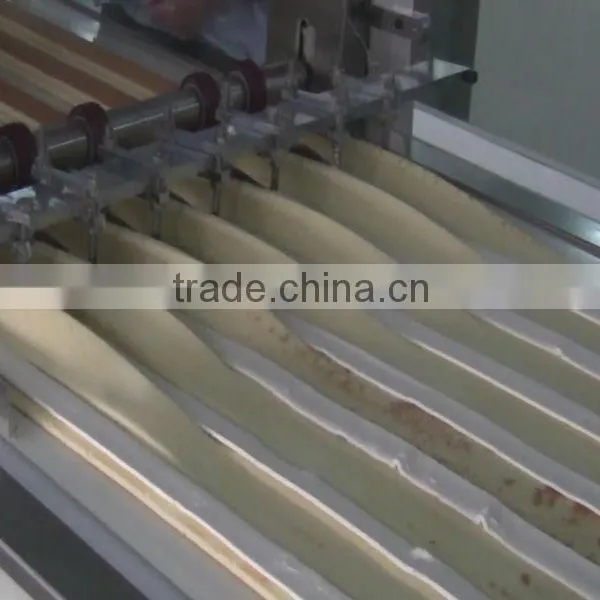

cake cutter
cake cutter
cake strilization conveyor & cream coating machine
