Specifications
1.1.5m*1.5m Non-asbestos rubber gasket sheet2.oil-resisting 300 centigrade
3.high quality
4.OEM no
5.manufacture

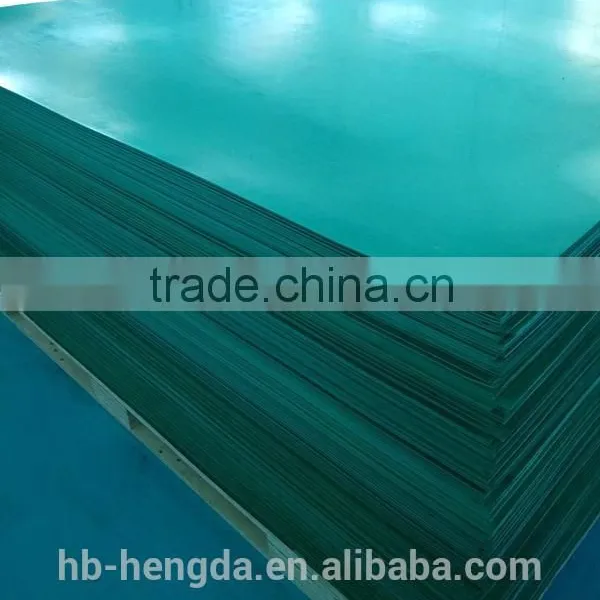

1.5m*1.5m Non-asbestos rubber gasket sheet
Product Description
It is made from kevlar fiber, NBR, special fiber, filling materials. Compressed and calendered under high temperature and pressure into a sheet form. Total free of asbestos.
Packaging&Shipping
WOODEN PALLET(1500KG or so/Ea)
WOODEN CASE(1500KG or so/Ea)
IN ROLL PACKED WITH KRATF PAPER OR PE PAPER(50KG or so/Roll)
Typical Application
1.Suitable for water, high temperature steam, compressed air, joint part of tubing, valve, heat exchanger.
2.Can be used in oil conditions.
Features:
1.100% not including asbestos
2.Wide range of temperature
Item |
Model NO. |
|||
HD2016# |
HD2017# |
HD2018# |
HD2019# |
|
Density g/cm3 |
1.6~1.8 |
1.6~1.8 |
1.6~1.8 |
1.6~1.8 |
Tensile strength ≥Mpa |
7 |
9 |
11 |
11 |
Compressibility ≥ % |
12+/-5 |
12+/-5 |
12+/-5 |
12+/-5 |
Recovery ≥ % |
40 |
45 |
45 |
45 |
Aging Coefficient |
0.9 |
0.9 |
0.9 |
0.9 |
Stress Relaxation ≤% |
45 |
45 |
45 |
45 |
Steam Sealing |
Tmax: 200 ℃ |
Tmax: 250 ℃ |
Tmax: 300 ℃ |
Tmax: 300 ℃ |
Temperature Max.oC |
200 |
250 |
300 |
300 |
Pressure Max. Mpa |
1.5 |
2.0 |
2.5 |
3.0 |
Resistance to media |
Water, seawater, steam, fuel, gases, salt solutions |
|||
Color: Black, blue, green,yello.
It can be produced following your requirements.
Available with steel, copper, SS etc. Mesh insertion (HD2019#)
Can put your logo on.
Welcome to send the inquire about Oil resisting asbestos free compressed sheet.
