Home > Products > New Products > 4INCH CENTRIFUGAL SLURRY PUMP 150L-AH FOR MINERAL PROCESSING PLANT 6/4E-AH

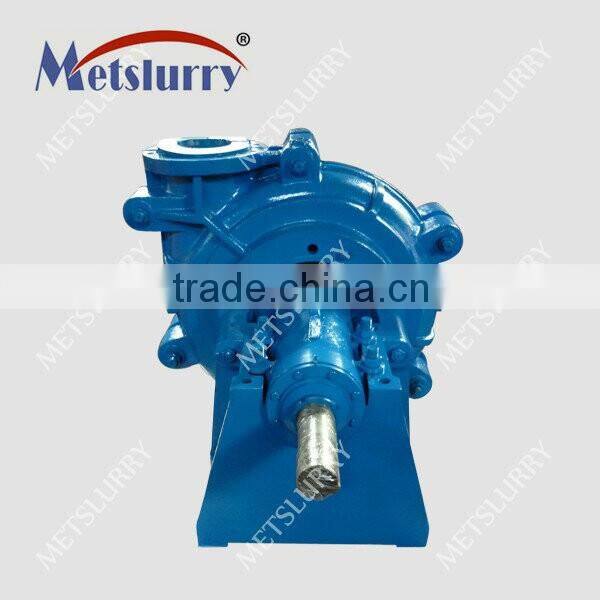

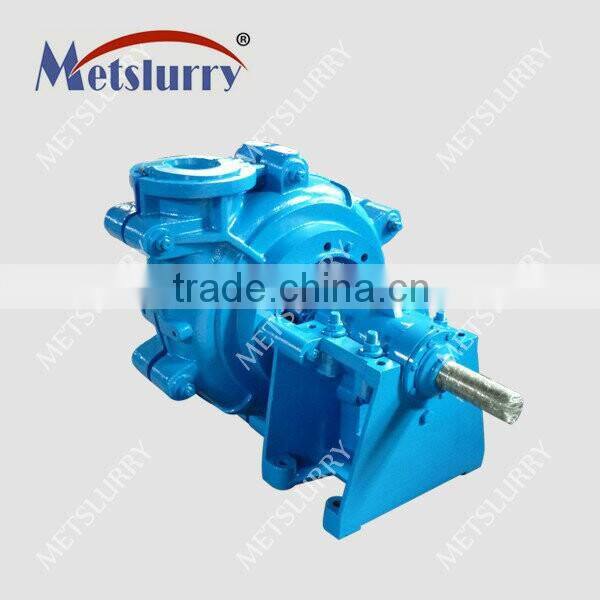

4INCH CENTRIFUGAL SLURRY PUMP 150L-AH FOR MINERAL PROCESSING PLANT 6/4E-AH
USD $800 - $18,000
/ Set
1 Set(Min.Order)
- 450 Set / Sets per Month
- Any port of china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
COAL WASHING CENTRIFIGAL DEWATERING PUMP 70J-MS METAL LINER
-
MINING VERTICAL SLURRY SUMP PUMP AND SPARE PARTS
-
WEAR RESISTANT SPARE PARTS VOLUTE LINER B110 FOR CENTRIFUGAL SLURRY PUMP
-
Mining centrifugal slurry pump frame plate liner insert manufacture
-
Interchangeable slurry pump Impeller D3147
-
Replaceable Frame Plate Liner Insert for AH(R) Pump
Product Details
| Place of Origin | Hebei, China | Brand Name | METSLURRY | |
| Model Number | 150L-MS | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, Mining processing plant | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | High Pressure | |
| Application | Other, Mining ,Metallurgy,coal |
Product Description
Parameters
| Head(m) | Up to 100 |
| Capacity (m3/h) | Up to 828 |
| Speed (rpm) | up to 1140 |
| Max Motor (KW) | 120 |
| NPSH (m) | 2-9 |
| Wet parts material | High-Chrome Alloy; Natural rubber |
Product Description
M, AH(R), HH pumps are used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones, lime and etc. in the industries of metallurgy, mining, coal, power, building material and etc. The temperature of the pumped solid-liquid mixture should be ≤80oC, and the weight concentration should be ≤60

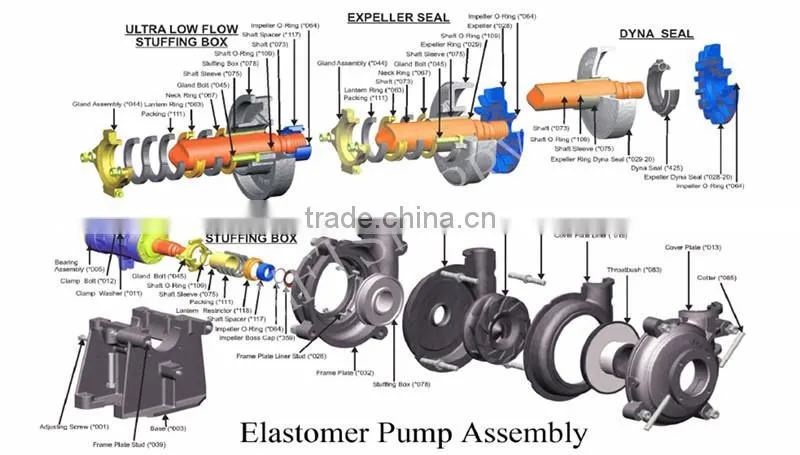

Structure Drawing

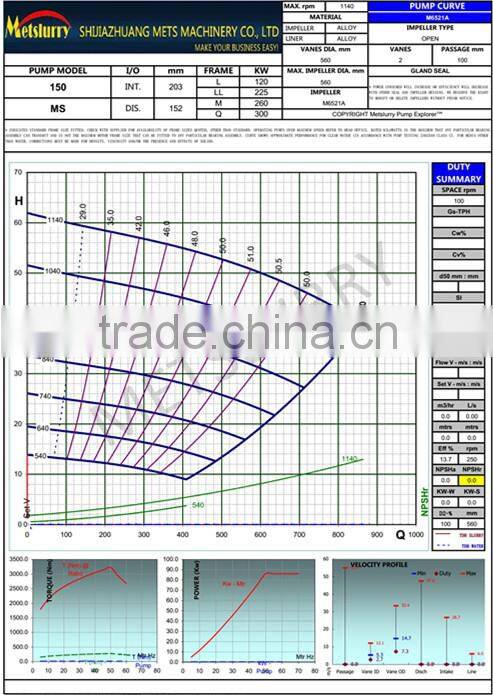

Performance Curve

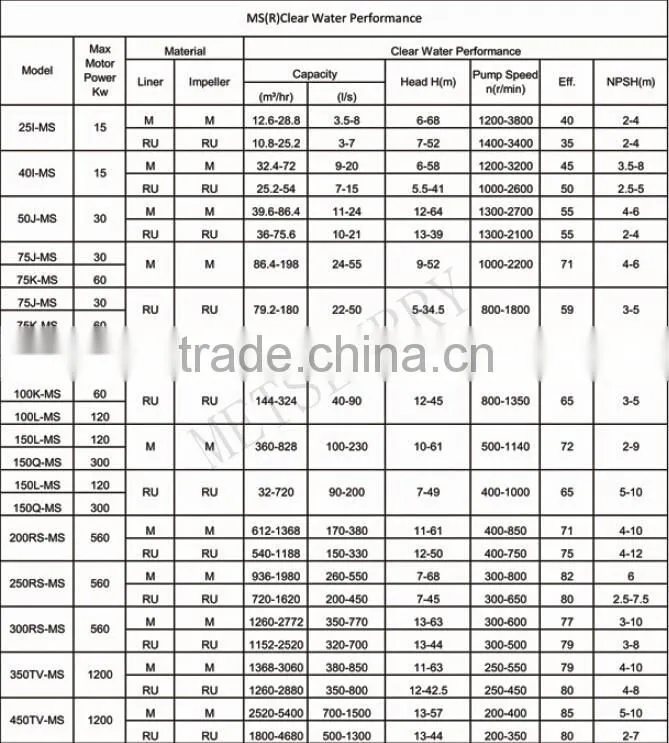

Other Slurry Pumps that we can supply
Product Show
