China centrifugal mining verticle slurry pump for coal processing
4YV-MS pump is designed for handling abrasive and corrosive slurries whilst submerged in sumps or pit.The pump has no shaft seal,easy to maintenance costless. Hard metal and rubber parts are optional for different applications and interchangeable,suit for most application where sump slurry pumps are needed
4YV-MS , 100RV-SP Vertical slurry pump Parameters
| Capacity (m3/h) | Up to 300 |
| Head (M) | Up to 40 |
| Speed (r/min) | 1200 |
| Max Motor Power (Kw) | 75 |
| Efficiency (%) | 62 |
| Wet parts Material | A05,A49,A51,Natural rubber |
Structure :
100RV-SP(R) performance curve :

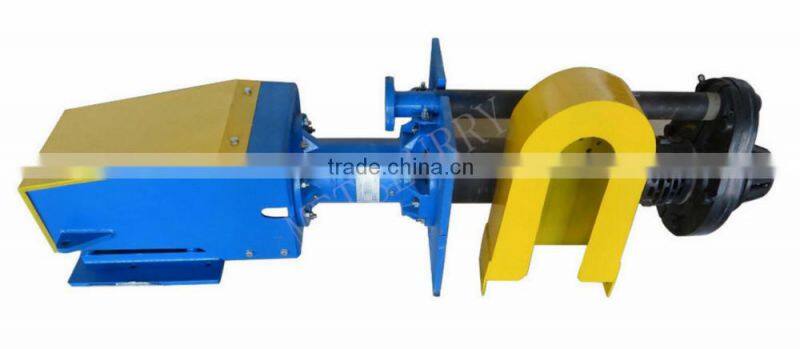

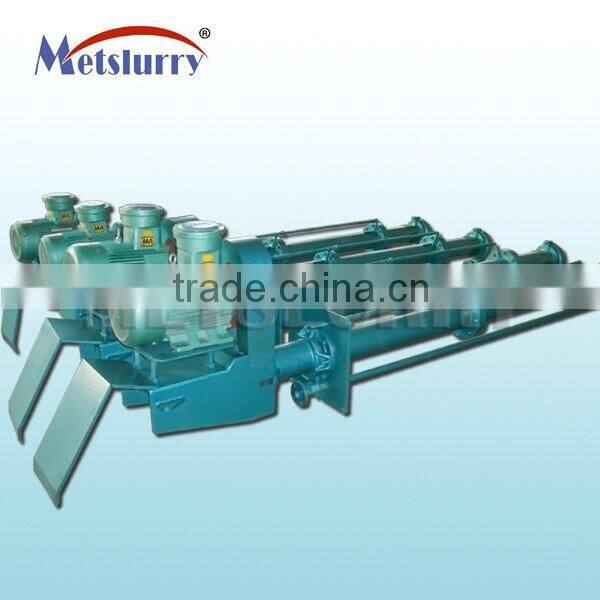

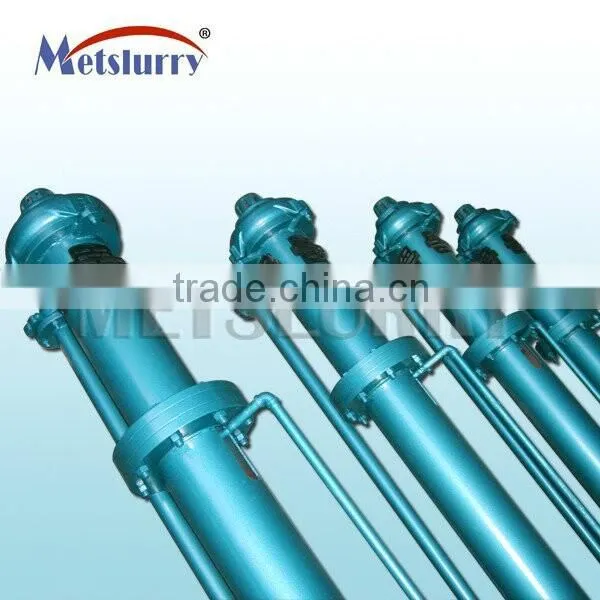

Products shows:
China centrifugal mining verticle slurry pump for coal processing
China centrifugal mining verticle slurry pump for coal processing
China centrifugal mining verticle slurry pump for coal processing
Features/Benefits:
1. Our Pump wet parts are made of wear-resistant high chromium alloy.
2. Our Pump bearing assembly use cylindrical structure, adjusting the space between impeller
and front liner easily. They can be removed completely when being repaired. Bearing assembly
use grease lubrication.
3. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to
any eight positions to suit installations and applications at its working site.
4. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in
multistage series to meet the delivery for long distance.
Our advice:
Please tell us the pump model you are looking for, if you are not able to select which pump is suitble for your application, please provide following parameters:
- Application project
- Medium, max particle size
- Medium composition
- Slurry gravity--S.G.
- Slurry density
- Flow capacity and head
Our engineer will select the most suitable pump model according to your requirement.
FAQ:
Q Are you factory or trading company ?
A: We are manufacture
Q:What kind of material do you have?
A: R55,R08,S21,S12,A05,A49,A51 etc
Q:Can we get a trial order for trial?
A: Yes,We are willing to send you some spare parts for trial
Q:How can you guarantee your quality?
A: We have got the CE and ISO 9001 Centifications,Regarding the quality we can guarantee as the same as W'S .Welcome to inquire from us,we will give you the best price
