Specifications
1.25Kva to 187Kva diesel standly generator set Weichai2. CE, ISO, CCC
3.100% power, 100% copper winding
4. Brush/Brushless
25Kva to 187Kva diesel standly generator set Weichai
Specifications
Attractive appearance, excellent quality, low price.

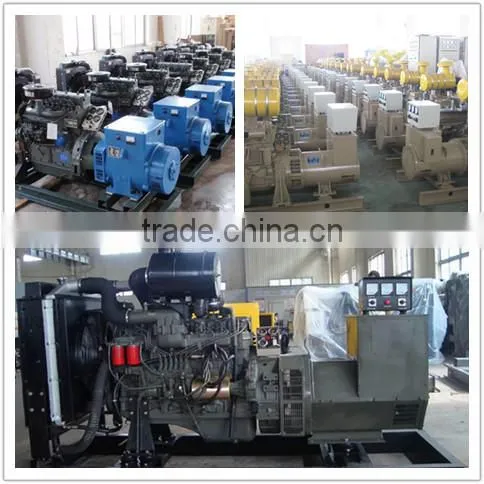

1.About the weichai series diesel generator set
Weichai series diesel generator set is equipped with a selected Weichai series diesel engine, which is developed and produced on the basis of the advanced technology introduced from abroad (Ricardo,UK) and is featured by stability and reliability.
We can supply Weichai series generator sets ranging from 25KVA-187KVA.
25Kva to 187Kva diesel standly generator set Weichai
Specification of genset
Genset model: RMW Series
Standby power: 20Kw-150Kw
Power factor: 0.8
Rated Voltage: 400/230/380/220/450/415V
Rated frequency (HZ): 50/60
25Kva to 187Kva diesel standly generator set Weichai
Specification of diesel engine
Brand: Weichai
Air intake way: Turbo-charged/ naturally aspirated
Engine speed (rpm): 1500/1800
Starting Method: DC electrical starting/ manual starting
25Kva to 187Kva diesel standly generator set Weichai

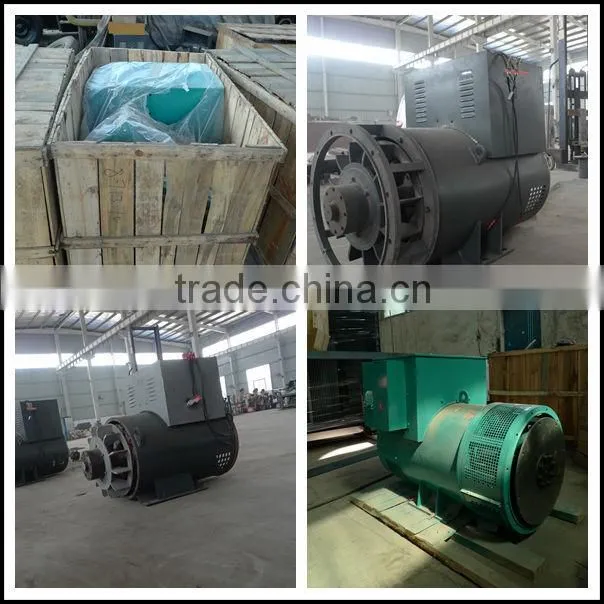

Specification of alternator
Alternator model: RMC Series
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1/2
Protection Grade: IP21/23
Exciter Type: Brush/Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Grade: H
Telephone Influence Factor (TIF):≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%
25Kva to 187Kva diesel standly generator set Weichai

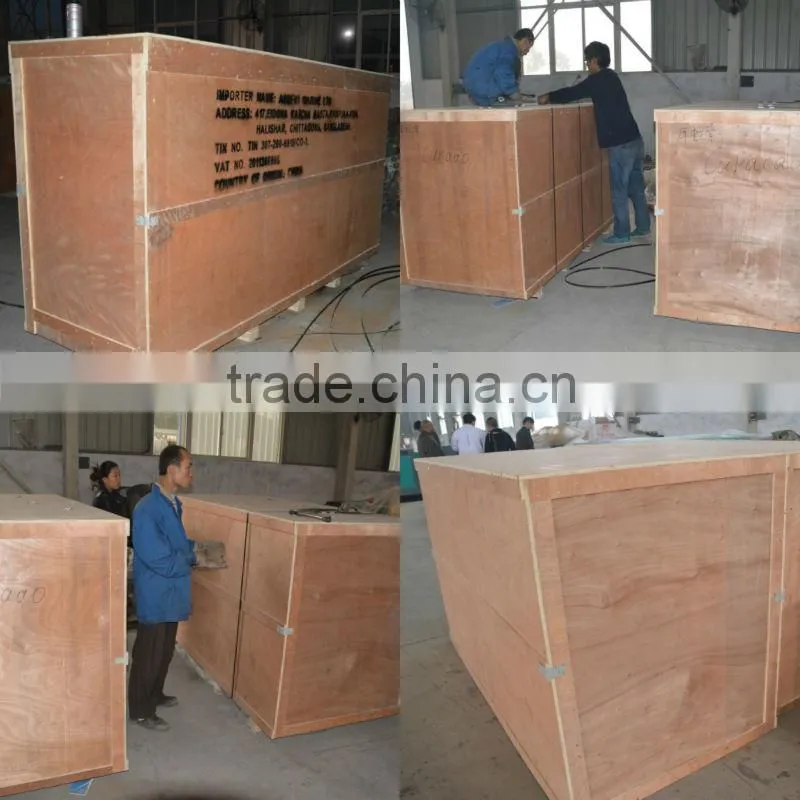

Packaging & Delivery
Packaging Details: plastic film,plywood box,iron fence
Delivery Detail: Within 10 working days after the deposit
Standard configuration of genset is as follows:
* Direct Injection internal combustion engine (diesel);
* AC synchronous generator (single bearing);
* Radiator tank suitable for 40 °C to 50 °C environment, belt driving cooling fan, fan safety shield;
* Power output air switch, standard control panel;
* Unit steel common-base (including: the unit vibration rubber pads);
* Dry type air filter, fuel filter, oil filter, start the motor, and is equipped with the charging generator;
* Start battery and battery connecting cable;
* 9 db muffler and connected with standard parts used in industry
* Attached data: diesel engine and generator factory technical documents, generating set manuals, test reports, etc.
Optional accessories ( if needed, calculate additionally)
* engine oil, diesel oil, water jacket, prevent condensation heater * separation daily fuel tank, fuel tank one-piece base
* floating battery charger * rain type unit (bin)
* since the launch of self-protection, the unit control panel * refurbished units (bin)
* unit with the function of "three remote" control panel to move drag model plant (box tank trailer)
