Specifications
1.STC Series three phase A.C.synchronous alternator 100Kw2. CE, ISO9001-2008, CCC
3. AVR
4, Single bearing or double bearing
STC Series three phase A.C.synchronous alternator 100Kw
About US
Over 20 years experience in generator field
Factory manufacturer
good quality and factory price
a sound after-sale service,Providing product Guarantee Period
Unique Packing according to customer specification requirement
Various of transportation way: Sea, Air, Bus, Express, etc
Alternator feature
Brush, Harmonic excitation system Alternator, Easy operation and simple maintenance
STC Series three phase A.C.synchronous alternator 100Kw
Rated Power: 100Kw
Rared current:181A
Rated voltage: 400V/230V
Rated frequency: 50Hz
Rated seeped: 1500rmp
Power factor: 0.8 (lag)
Exciting method: brush, self exciting
Insulation level: H grade
Voltage regulation system: AVR
Protection level: IP21/IP22/IP23
Steady-state voltage regulating rate: +-1%
Instantaneous voltage regulating rate: =<-15%, 20%
Steady-state frequency regulating rate: =<+-1%
Frequency recovery time:=< 3s
Over current: 1.5le>=2min
Over load: 1.1le>=1h
STC Series three phase A.C.synchronous alternator 100Kw
STC Series Alternator data for your reference:
| Model | Output | Power factor | Speed | Freq. | Pole No. | |||
| Capacity (KVA) | Rated power (Kw) | Voltage(V) | Current(A) | |||||
| STC-3 | 3.8 | 3 | 400/230 | 5.4 | 0.8 | 1500 | 50 | 4 |
| STC-5 | 6.3 | 5 | 400/230 | 9 | 0.8 | 1500 | 50 | 4 |
| STC-8 | 10 | 8 | 400/230 | 14.5 | 0.8 | 1500 | 50 | 4 |
| STC-10 | 12.5 | 10 | 400/230 | 18.1 | 0.8 | 1500 | 50 | 4 |
| 12 | 15 | 12 | 400/230 | 21.7 | 0.8 | 1500 | 50 | 4 |
| 15 | 18.8 | 15 | 400/230 | 27.1 | 0.8 | 1500 | 50 | 4 |
| 20 | 25 | 20 | 400/230 | 36.2 | 0.8 | 1500 | 50 | 4 |
| 24 | 30 | 24 | 400/230 | 43.4 | 0.8 | 1500 | 50 | 4 |
| 30 | 37.5 | 30 | 400/230 | 54.3 | 0.8 | 1500 | 50 | 4 |
| 40 | 50 | 40 | 400/230 | 72.4 | 0.8 | 1500 | 50 | 4 |
| 50 | 62.5 | 50 | 400/230 | 90.5 | 0.8 | 1500 | 50 | 4 |
| 64 | 80 | 64 | 400/230 | 115.8 | 0.8 | 1500 | 50 | 4 |
| 75 | 93.8 | 75 | 400/230 | 135.8 | 0.8 | 1500 | 50 | 4 |
| 100 | 125 | 100 | 400/230 | 181 | 0.8 | 1500 | 50 | 4 |
| 120 | 150 | 120 | 400/230 | 217.5 | 0.8 | 1500 | 50 | 4 |
| 150 | 187.5 | 150 | 400/230 | 271.5 | 0.8 | 1500 | 50 | 4 |
| 200 | 250 | 200 | 400/230 | 362 | 0.8 | 1500 | 50 | 4 |

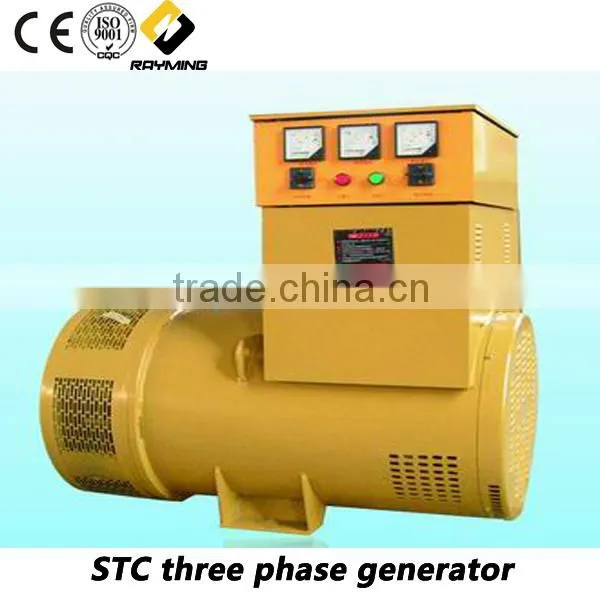

Product show
STC Series three phase A.C.synchronous alternator 100Kw
STC Series three phase A.C.synchronous alternator 100Kw
Package:
STC Series three phase A.C.synchronous alternator 100Kw
Factory;
STC Series three phase A.C.synchronous alternator 100Kw
Our product is selling all ove the world, Welcome to inquiry us
Yours Bobby
