Specifications
STC There-Phase Ac Synchronous Generator1)Output:(2kw-50kw)
2)Already approved by ISO9001:2008 CE IEC CCC
3)High Quanlty

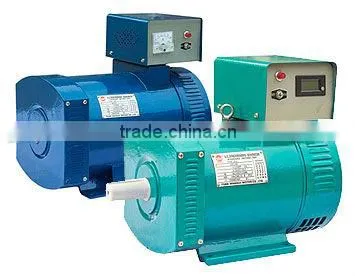

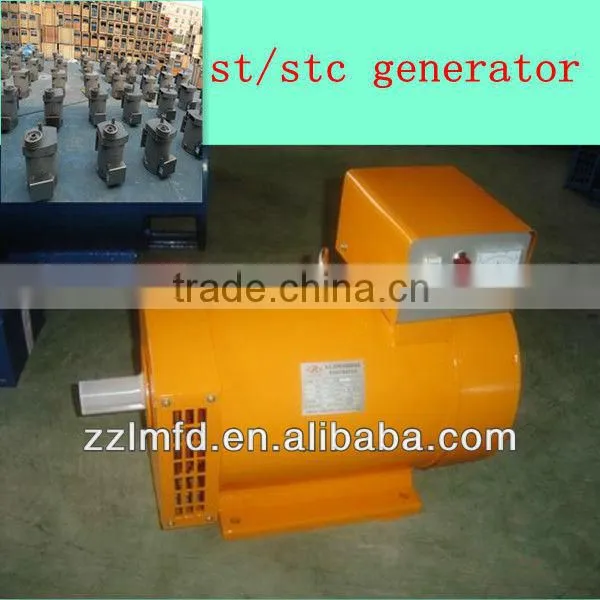

st/stc series single/three phase ac alternators generator
1)Output:(2kw-50kw)
2)Already approved by ISO9001:2008 CE IEC CCC
3)High Quanlty
STC series generators are mainly designd to serve as power generating unit of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The construction of the generators is of drip-proof, salient pole rotating field self-excitation and constant voltage type. The alternator inside is used with high quality electric magnetic and electrical materials. Stator insulation is of Class E(or B). rotor insulation is of Class B. These generators are excellent in appearance. they are consolidate in construction and easy to maintain. Dimensions are adopted IEC standard, they are suitable for Australia, Europe, America and other countries if the end covers are model B. The alternators are of harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic cha-racterstic performance, convenient and reliable in operation.
Model |
Ouput(kw) |
Rated Capacity(KVA) |
Rated Current(A) |
Pole number |
Rated Speedr.p.m
|
STC-3 |
3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
| STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
| STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
| STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
| STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
| STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
| STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
| STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
| STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |
| STC-64 | 64 | 80 | 115.5 | 4 | 1500 |
welcome to our factory!
