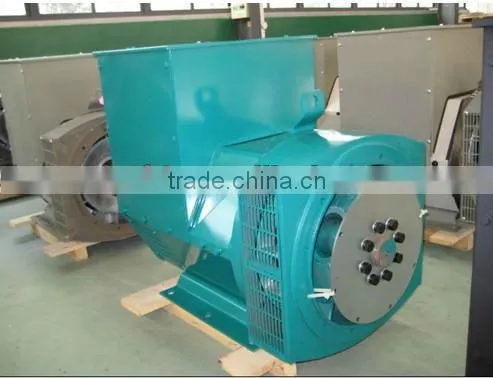

8Kw-1000Kw stamford generator
Features:
1)Any permanent magnetic generators, providing invariable excitation on all occasions.
2)Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3)Balanced rotor with single or two sealed ball bearings
4)Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5)Wide range of Flange adaptor and single bearing coupling disc
Mechanic Features
Frame
All industrial standard is IP21,also IP23 is an option, but rates power will decrease 5%
Marine standard alternator is IP23,Air filter is an option, but rated power of the alternator will decrease 5% while it is installed.
Axis and Key
All of alternator rotors should pass balance test, whose vibrations are lower than the minimum of BS6861 P.1,G 2.5 two bearing alternator has a half-key testing balance
TERMINAL AND TERMINAL BOX:
The three-field generator has 12 leads brought out to the terminals in terminal box. The terminals are put on the non drive end. The box is equipped with removable panels
Winding and electric features:
2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline
A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage
Phone interference
THF(defined by 40th part of BS4999) <2%.TIF(defined by ASAC50.12)<50
Radio interference
Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.
Option
1. Adapters and drive disks
2. Single phase
3. Remote voltage adjust
4. IP23 enclosure
5. Space heaters
6. Thermistors
Specifications
1.Any permanent magnectic generators, providing invariable excitation on all occasions.
2.Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3.Balanced rotor with single or two sealed ball bearings
4.Convenient installation and maintenance with easy access to terminals, roating diodes and coupling bolts
5.Wide range of Flange adaptor and single bearing coupling disc
6.Meet leading instury and marine standards
Technical data
Zhengzhou Thunder Power Equipment Manufacturing Co., Ltd. is located in China's largest transportation hub - Zhengzhou, Henan Province. Our company was built in 1990s. We integrate the R&D, design, manufacture and production of power generation equipment. We have imported production equipment. Now there are 3 senior engineers, 20 technical personnel and more than 100 workers. In the field of power generation equipment, we boast our high level R&D, production, installation, commissioning and maintenance capabilities. Our products are exported to Africa, Europe and Southeast Asia. Our products are widely used in high-speed roads, railways, water conservancy, mining, oil fields and household standby power units.
After years of continuous improvement in product design, manufacture and testing, we have gained rich experience and established a debugging-equipped examination center.
"Pursuing Excellence, Creating Perfection" is our eternal tenet. To create a world famous brand is our firm objective. Customer satisfaction is our greatest success! We look forward to the support of friends! Welcome to our company to discuss cooperation!
Zhengzhou Thunder Power Equipment Manufacturing Co., Ltd
Jack Wang
Skype : Jackzhongyuan
Add:South Of Jianshe Road And West Of Youyi Road,Xingyang, Zhengzhou,Henan, China
Welcome to visit our factory and negociate face to face.
