Specifications
10-300kw diesel generators1. generator manufactur supply
2.open and silent type
3.good price and quality
4.CE and ISO90
32kw/40kva Weichai diesel generator dynamo generator
WHECAI series generator set adopt WEICHAI 4105&6105 series engine produced by Weifang power factory.4105&6105 series engines have more fine performances including low oil consumption,high reliability,easy to start ,cheap price ect.It's one of our main products.
1.dynamo generator set manufacture
2.silent box and trailer optional
3.CE,ISO,etc.

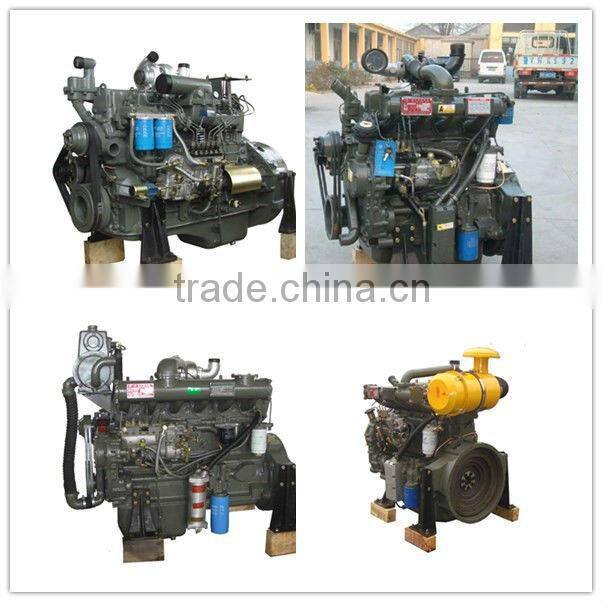

Engine Features:
1. World famous brand Weichai engine;
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection;
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler;
4. Machinery or electronic governing;
5. Fuel injection pump;
6. Electric motor starting system;
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner;
8. Low discharge, and low fuel consumption;
9. Installed conveniently and maintain easily.

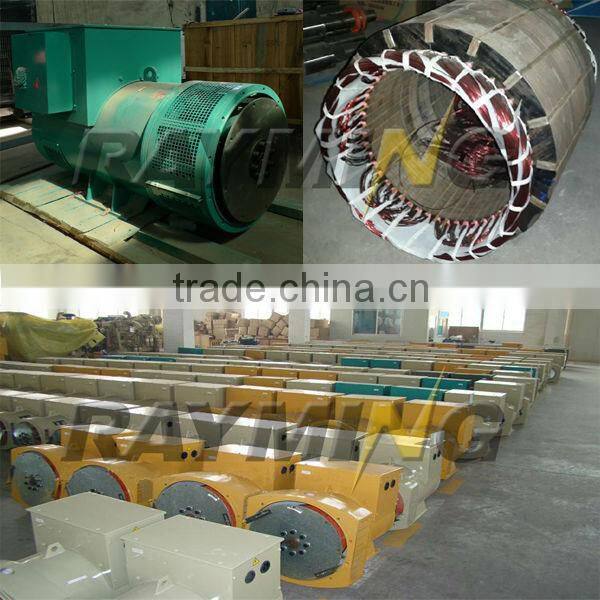

Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford;
2. Brushless, 4 poles, rotation magnet;
3. IP21-23(NEMA1) enclose is standard for all industrial alternators;
4. H class insulation system;
5. AVR self-regulated, voltage regulation rate: ±1%;
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts;
7. Wide range of flange adaptors and single bearing disc coupling;
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528;
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof;
Soundproof/Silent Box:
1. Excellent ventilation;
2. Oil tank mounted on base frame for 12 Hours working;
3. Highly Corrosion Resistant construction;
4. Excellent Access for Maintenance;
5. Security and Safety.
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current;
2. Permanent magnet generator system provides constant excitation under all condition;
3. Optional accessories available for easy paralleling with mains or other generators;
4. AVR, auto exciter, auto adjustment.
- SPECIFICATION
Genset data
| Genset Model | 40GF | ||
| Rated Output | 32kw/40kva | ||
| Standby Output | 35kw/44kva | ||
| Voltage | 110/220V 220/380V 230/400 254/440V | ||
| Frequency | 50Hz/60Hz | ||
| Speed | 1500rpm/1800rpm | ||
| Type | 3phase 4wire/ 1phase | ||
| Protect Class | IP23 or more (can be indicated) | ||
| Starting system | Electric starting | ||
| Silent Level | 60dB~85dB at 7m | ||
Engine
| Diesel engine Model | 4100ZD | ||||
| Engine Speed | 1500rpm/1800rpm | ||||
| Prime Power | 41kw | ||||
| Stamdby Power | 45.1kw | ||||
| Air intake way | Turbocharged | ||||
| Cylinder No. | 4 | ||||
| Bore*Stroke | 100*115mm | ||||
| Displacement(L) | 1.81 | ||||
| Compression Ratio | 17:1 | ||||
| Governor | Electrical Governor | ||||
| Fuel Consumption | 224g/kw.h | ||||
| Cooling Way | Water-Cooled | ||||
| Starting System | Electric Starting |
Alternator
-
Alternator Leroy SomerStamford/Leiming Alternator Model HCI/STF-224C/LSM Exciter Brushless/brush Colling Fan Cast alloy aluminum Air intake way Turbocharged and Aftercooled Windings 100% copper Insulation Class H Winding Pitch 2/3 Terminal 12 Drip Proof IP23 Altitude <1000m Overspeed 2250rpm Air Flow 0.8 m³/s (50Hz).0.99 m³/s (60Hz) Voltage Regulation ±1.0% Telephone Interference THF<2%, TIF<50

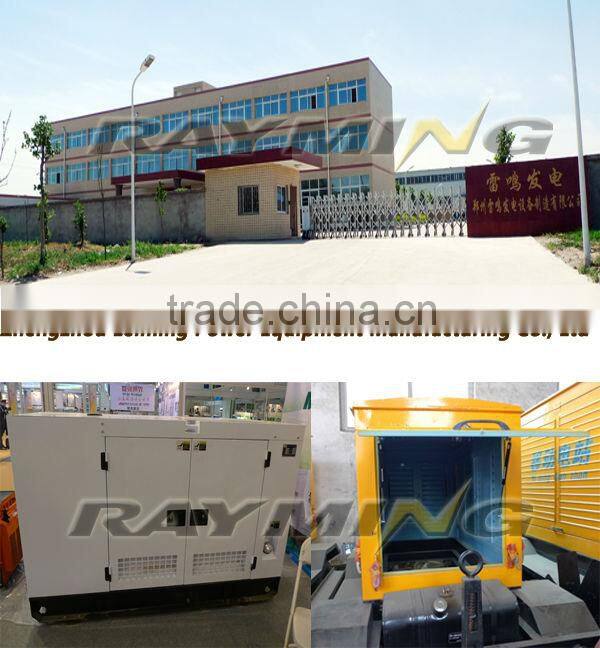

Zhengzhou Leiming Power Equipment Manufacturing Co.Ltd
Our main products include diesel generator , gasoline generator ,brush alternator, brushless alternator,
electric motor and spare parts. our company has strong technology capabilities, Advanced production
lines and inspection equipment, Moreover, we fully carry out quality management system and strictly enforce the management system of ISO9001: 2000, CE and Soncap, We keep seeking, researching and producing new variety of products. We employ professional technical members and can offer single-phase or three phase diesel generator sets (power range of 3Kw-2000Kw), which are very popular both at home and aboard.
Adhering to the spirit of "scientific development and undergoing training", we also stick to the guideline
of " higher more advanced and more powerfuel", We encourage the participation of all staff members to
rely on quality, development, creation and good credit.
We are looking forward to cooperating with overseas customers based on mutual benefits. please feel free to contact us for more details,thanks.
JACK WANG Skype : jackzhongyuan QQ : 2412887897
telephone: 86-371-86536275
Address:South Of Jianshe Road And West Of Youyi Road,Xingyang,Zhengzhou, Henan, China (Mainland).
