High Biodiesel Yielding and Low Energy Consumption Algae Oil Making Biodiesel Machine

Non-acid Biodiesel Equipment

Biodiesel is used for chemical industry field, it makes bio-oil into biodiesel. Bio-oil can be plant oil,animal oil or high acid value waste oil.

In today's growing petroleum tension, biodiesel has much market instead of petroleum and other fossil suels. The raw materials of biodiesel is more environmental. Our company can offer 5-1000T/D biodiesel project, including engineering design, equipment manufacturing, technicel services, product research and development ect.

Materials: Vegetable oil ,Refined offcuts of oil plant (soap stock , oil foot, deodorized extract matter, waste bleaching clay),Jatropha seed oil,animal oil , used cooking oil or other oil.

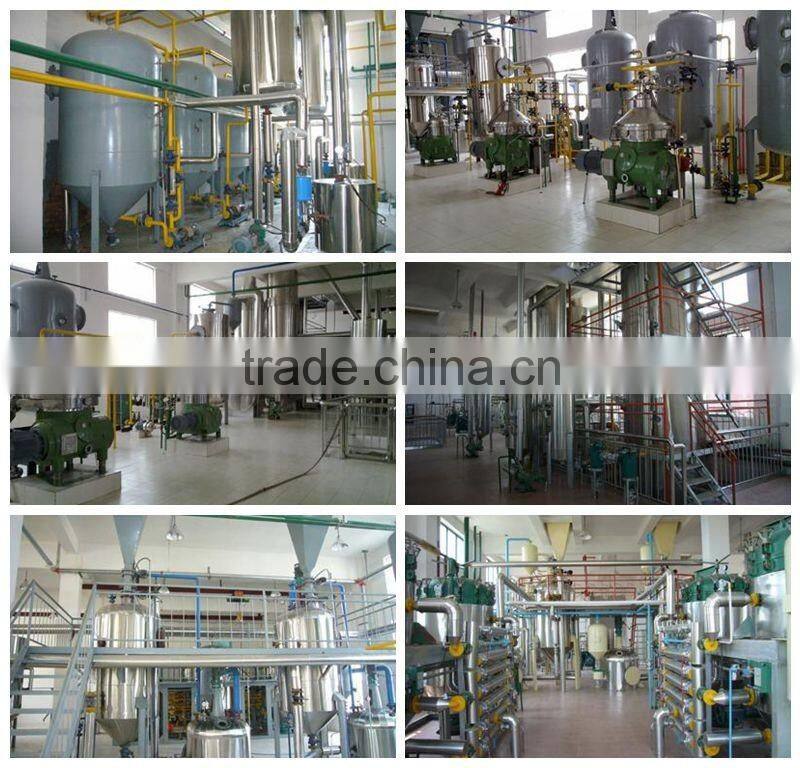

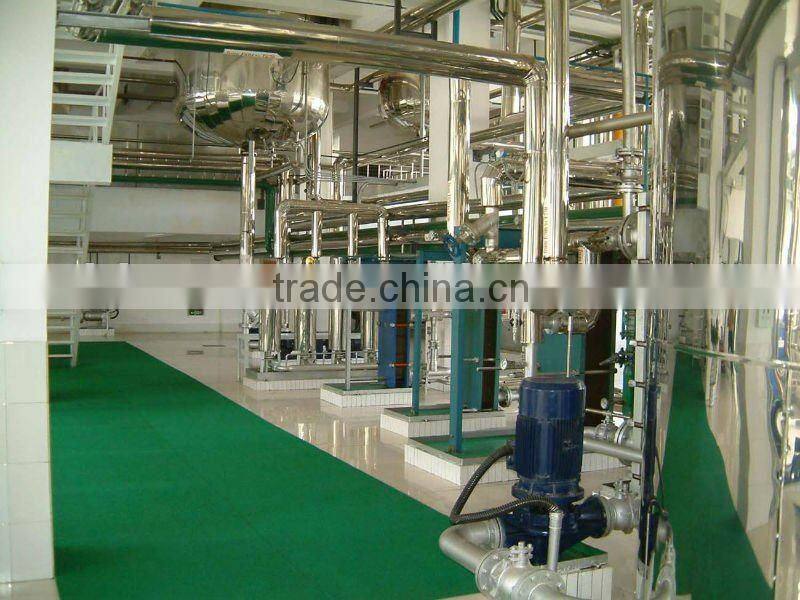

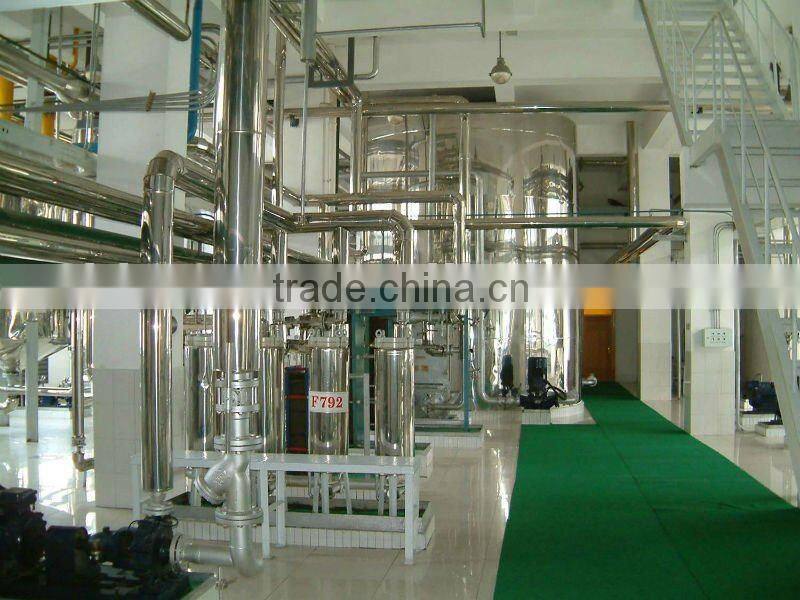

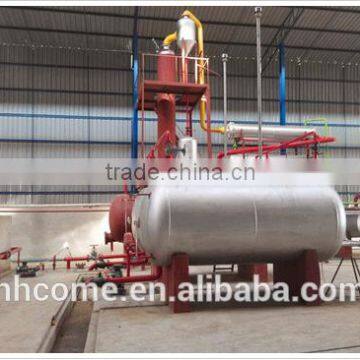

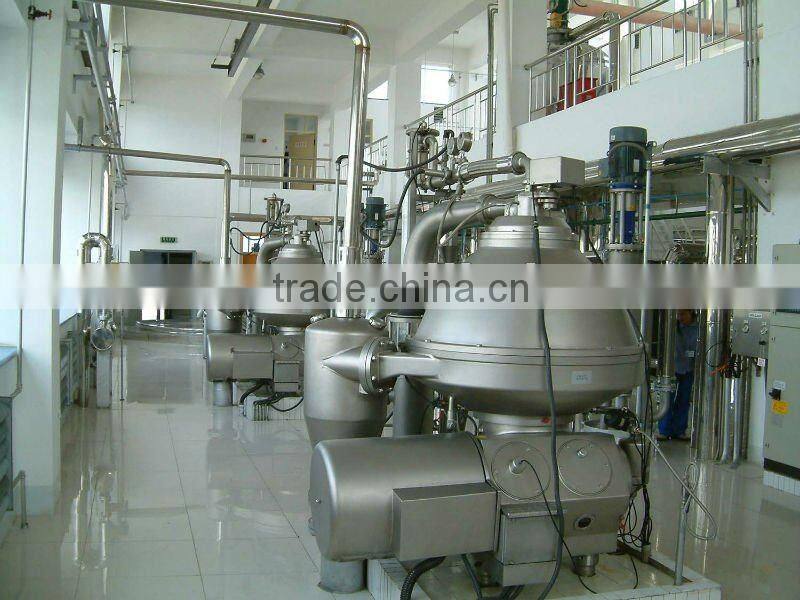

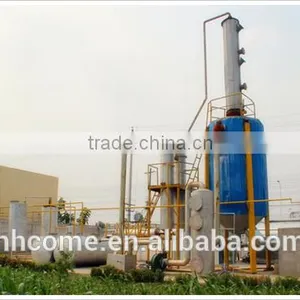

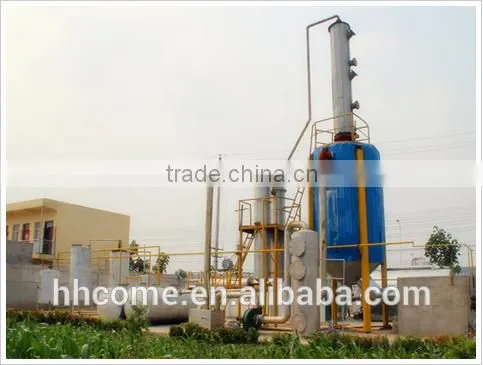

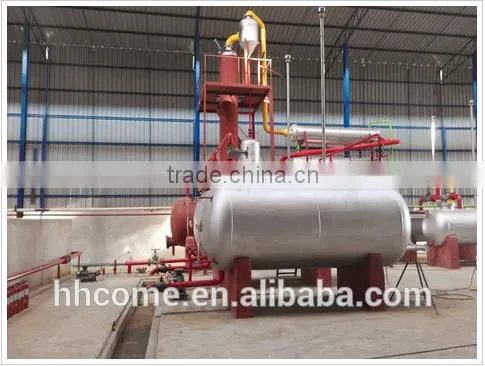

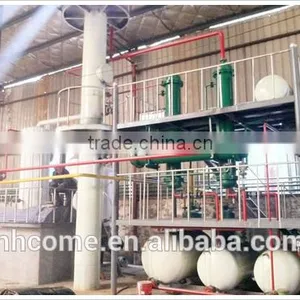

The set of biodiesel equipment contains the international advanced pre-processing section,esterification process and distillation process,and it meets the European Union Standards.We have obtained patent,and patent No. is ZL200920089138.8.The production steps are as follows:

1.Preprocessing section of bio-oil: when heated to 65~70°c,bio-oil is leached to remove impurities.

2.Drying section:bio-oil without impurities is dehydrated and dried

3.First esterification reaction:adding bio-oil dehydrated to methanol including 3% sulfuric acid,first esterification reaction starts,and it  will take 1.5~2.5 hours.

4.Second esterification reaction:this esterification reaction will take 9~12 hours.

5.Vacuum drying section: Second esterification reactants are dried with vacuum,removing moisture,reducing water content below 3%.

6.Distillation section: with vacuum state,section esterification reactants after vacuum drying section are heated to 220°c,biodiesel forms by steaming.Then cooling biodiesel to be liquid ,the liquid biodiesel is just finished biodiesel.

7.Methanol fine-distillation:after biodiesel is isolated,the remaining methanol liquid is distilled to form methanol.Cooled methanol can be reused.

Equipment advantages:

1.Stable process performance

2.Simple operation

3.Small investment of equipment

4.High conversion rate(up to 85%)

Animal&vegetable oil and acid oil can be used to make biodiesel.Biodiesel is novel green fuel,there are following featurers:

1.Good driving performance for low-temperature motor,cooling point can reach -10°c without adding agent

2.Good lubrication performance ensures low wearing rate of oil spraying pump,engine tank and rods

3.As flash point of biodiesel is higher than mineral diesel,biodiesel does not belong to dangerous goods.

4.Sulfur content is low,small emission

5.low residual combustion char(0.02%),i.e. microparticles content of waste gags is low.

6.Damage of waste gas after combustion is lower than that of mineral diesel

7.High biodecomposition rate is favorable for environment protection.

Note:

1.We are resonsible for installation and debugging;

2.Instruct operation workers about the operation skills and offer technical service.

3.Quality warranty of the whole set of equipment is offered;

Our Company

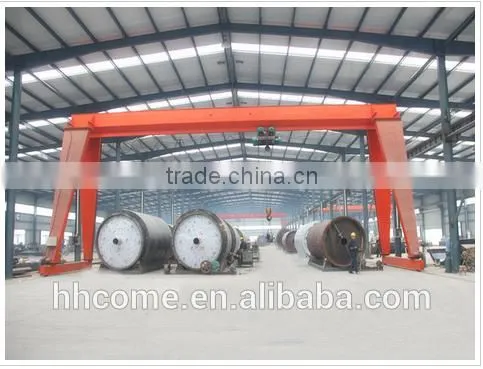

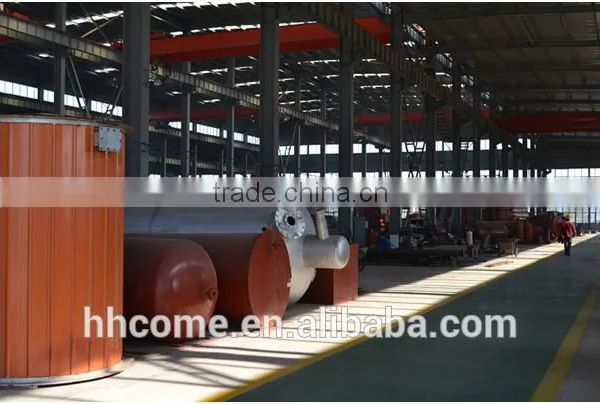

Henan Huatai Cereals And Oils Machinery Co.,Ltd. was founded in 1950,whcih is a large-scale oil machinery manufacturing enterprise integrating R & D, design, manufacture and installation as one of the major grain and oil machinery manufacturing enterprises in China.Our company headquartered located in Huaxiang County Industries,Henan Province,China,covering 100,000.00 square meters.
