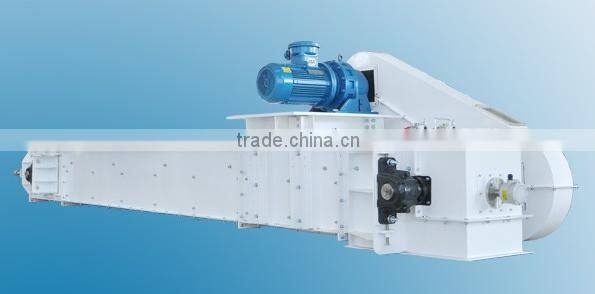

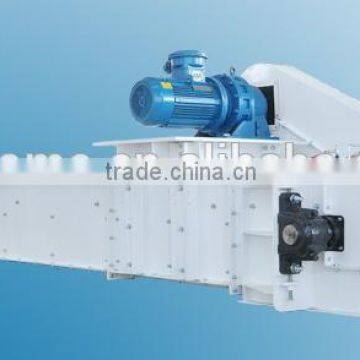

High Efficient MS Type Horizontal Scraper Conveyor Equipped With Multiple Safety Device for Sale
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
MC Type Bend Scraper Conveyor With Flexible Configuration of 0-90 Degrees Lift Used for Oil Plant
-
Highly Effective Mixed Oil Purifier,edible Oil Purification,miscella Filtering
-
TDTG Self Cleaning Type Bucket Elevator, Vertical Bucket Elevator for Grain
-
TDTG Self-cleaning Bucket Elevator
-
Helix Oil Expeller
-
Disc Centrifugal Separator
Product Details
| Condition | New | Type | Other, Horizontal scraper conveyor | |
| Material | Other, Steel | Material Feature | Other, wear-resistant materials | |
| Structure | Inclining Conveyor | Load Capacity | 0~1850 m³/h | |
| Place of Origin | Henan, China | Brand Name | Huatai | |
| Model Number | HT-Ms | Voltage | According to the actual situation | |
| Power(W) | Based on the actual situation | Dimension(L*W*H) | According to the actual conditions | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
MS Type Scraper Conveyer use non-metallic wear-resistant materials as the main wear-resisting layer, enables the efficient transport various kinds of tray or powder materials. This welding hand chain buried scraper conveyor is widely used in feed, rice, flour mills, oil plants, grain depot, port, etc.
MS Type Scraper Conveyer features:
1. Our MS Type Scraper Conveyer has simple structure, flexible configuration, can effectively convey various materials, convenient disassembly and repair installation.
2. MS type scraper conveyor with heavy welding bending, special processing of axis and to ensure the high strength conveyor chain plate.
3. Huatai high wear-resisting material blade assembly, can improve the service life of the equipment.
4. MS scraper conveyor equipped with multiple safety device, can guarantee the safe and effective
Technical parameters
| Model | Conveying capacity (m³/h) | speed (m/s) | Safety slope(°) | Transfer-length (Max) (m) |
| MS16 | 0~20 | 0.20~0.60 | ≤15 | 60 |
| MS25 | 20~70 | 0.20~0.60 | ≤15° | 60 |
| MS32 | 50~170 | 0.20~0.60 | ≤15° | 80 |
| MS42 | 170~260 | 0.20~0.60 | ≤15° | 80 |
| MS50 | 260~500 | 0.20~0.65 | ≤15° | 80 |
| MS63 | 500~620 | 0.20~0.65 | ≤15° | 80 |
| MS80 | 620~900 | 0.20~0.75 | ≤15° | 100 |
| MS100 | 900~1150 | 0.20~0.75 | ≤15° | 100 |
| MS120 | 1150~1450 | 0.20~0.85 | ≤15° | 100 |
| MS140 | 1450~1850 | 0.20~0.85 | ≤15° | 100 |
Packaging & Shipping
Our Services

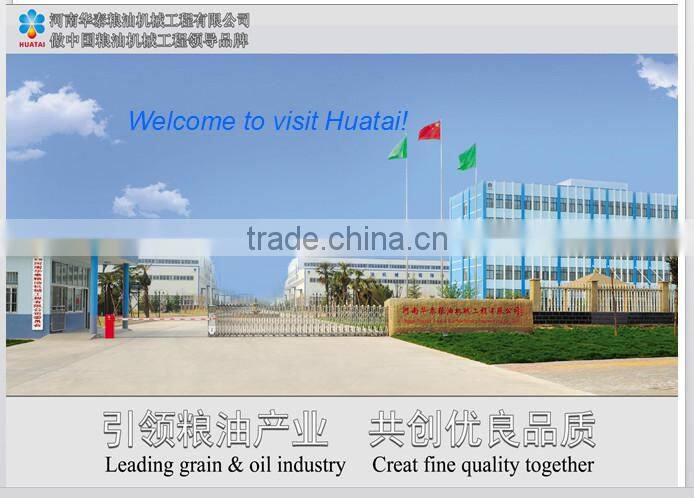

Company Information
Contact us
