China Huatai used waste oil process for biodiesel processor, biodiesel manufacturing machine, production plant for sale

latest technology biodiesel machine from China with best service and ISO certificated

Waste oil process biodiesel processor, biodiesel production plant with capacity 5--50T/D, used cooking oil for biodiesel producing.

1.More than 60 years cooking oil machine manufacturing experience

2.Have factory and professional engineers

3.Can Offer full set oil production line, according to different oilseeds

4.Patents and CE,ISO,SGS

Specification: 5~100T/D

This Machine makes bio-oil into biodiesel, which is novel green fuel used for chemical industry field. Bio-oil can be plant oil, animal oil or high acid value waste oil.

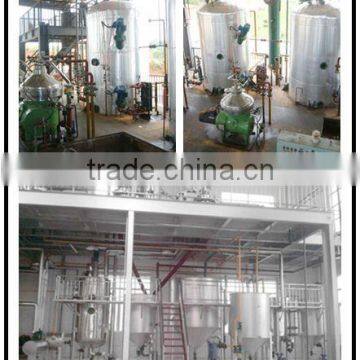

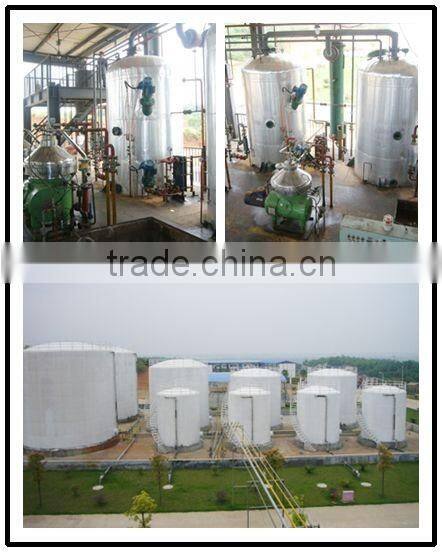

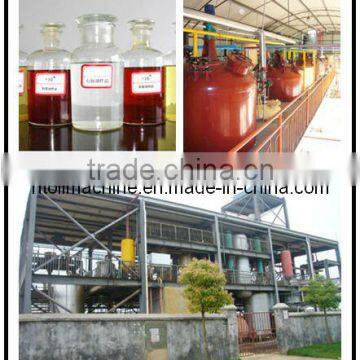

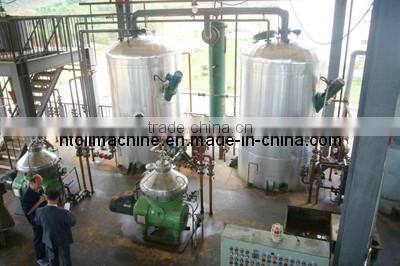

This set of biodiesel equipment contains the international advanced pre-processing section, esterification process and distillation process, and it meets the European Union Standards. We have obtained patent which patent No. is ZL200920089138.8.

Production steps of biodiesel manufacturing machine

1. Preprocessing section of bio-oil: when heated to 65~70°c,bio-oil is leached to remove impurities.

2. Drying section: bio-oil without impurities is dehydrated and dried.

3.First esterification reaction: adding bio-oil dehydrated to methanol including 3% sulfuric acid, first esterification reaction starts, and it  will take 1.5~2.5 hours.

4.Second esterification reaction: this esterification reaction will take 9~12 hours.

5.Vacuum drying section: Second esterification reactants are dried with vacuum,removing moisture,reducing water content below 3%.

6.Distillation section: with vacuum state,section esterification reactants after vacuum drying section are heated to 220°c,biodiesel forms by steaming.Then cooling biodiesel to be liquid ,the liquid biodiesel is just finished biodiesel.

7.Methanol fine-distillation:after biodiesel is isolated,the remaining methanol liquid is distilled to form methanol.Cooled methanol can be reused.

Equipment advantages of our biodiesel manufacturing machine

1.Stable process performance

2.Simple operation

3.Small investment of equipment

4.High conversion rate(up to 85%)

Featurers of our biodiesel manufacturing machine

1.Good driving performance for low-temperature motor, cooling point can reach -10°c without adding agent;

2.Good lubrication performance ensures low wearing rate of oil spraying pump,engine tank and rods;

3.As flash point of biodiesel is higher than mineral diesel,biodiesel does not belong to dangerous goods;

4.Sulfur content is low,small emission;

5.low residual combustion char(0.02%),i.e. microparticles content of waste gags is low;

6.Damage of waste gas after combustion is lower than that of mineral diesel;

7.High biodecomposition rate is favorable for environment protection.
