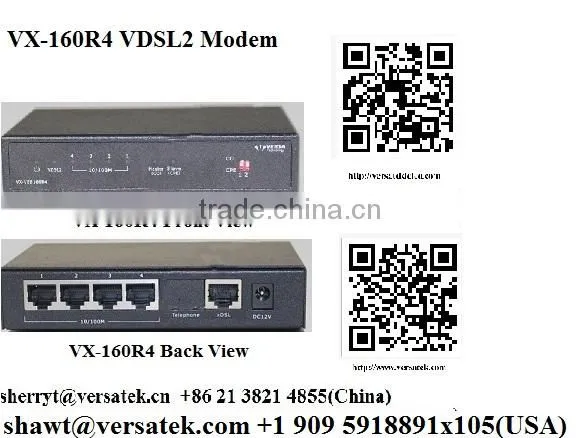

Help CenterVX-1000SP Single-Port ADSL2+ IP DSLAM - An Ideal Solution for Video Surveillance Applications Contact: Sherryt@versatek.cn
Related Products
-
ZXMSG 5200 MSAN DSLAM Contact: Sherryt@versatek.cnNegotiableMOQ: 1 -
ASNV (ADSL2+ Without Built-in Splitter), APNV (ADSL2+ With Splitter Buit-inPNVNA (Splitter Board); Contact: Sherryt@versatek.cnNegotiableMOQ: 1
-
ZXDSL 9836 ADSL2/2+ VDSL2 and POTS; Contact: Sherry@versatek.cnNegotiableMOQ: 1
-
ADEE(with Built-in Splitter)ADEF(without Built-in Splitter) for MA5600 64-port ADSL2+ Service Boad; Contact: Sherryt@versatek.cnNegotiableMOQ: 1
-
MA5616 MSAN Chassis IP DSLAM DSLAM for VDSL2 & ADSL2+ Contact: Sherryt@versatek.cnNegotiableMOQ: 1
General Description
The VX-1000SP Single Port IP Mini DSLAM si special designed and an ideal solution for Video Surveillance application. Users can install the Co and CPE in reverse location such as nouting the CPE in Co side and CO in CPE side to make Up stream as normal downstream banfwidth to support video camera with broad data bandwidth requirements. It supports the signal conversion between traditional Ethernet and innovative ADSL2+ technology. It is ideal solution for Video Surveillance application and oil field video monitoring application etc.. The device is a right solution to integrate current Ethernet application with the new building phone line networking technology, like large campus, hotel, office and apartment as well as the long distance environment.
The VX-1000SP MINI 4 ethernet port supports Asymmetry data transmission bandwidth maximum up to 27/1.5Mbps and transmission maximum distance up to 16,000ft. It is ideal for providing video-on-demand and multi-media service to highway traffic, street intersection, Oilfield, Flood Control, Subway and country border’s Video Surveillance etc.
It is also ideally for hotel and campus without rewiring cable consideration. Moreover, the distance expansion also provides wide range coverage.
The IP DLAM is plug-n-play with the software to configure if you need more functions hand also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front-panel provide the operating status of the system.
The cable specifications of the connection are listed as following:
¡10BASE-T, Category 3, 4 or 5 UTP/STP
¡100BASE-TX, Category 5 UTP/STP
¡Twisted-pair telephone wires
Key Features
— Complies with IEEE802.3 10BASE-T standard.
— Complies with IEEE802.3u 100BASE-TX standard.
— Consolidates ADSL,ADSL2,and ADSL2+ Connection interfaces with max. of 27Mbps up stream and 1Mbps downstream (Reversed)
— Standard ITU-T Rec.G.992.1,G.992.2,G.992.3and G.992.5 with Annex A,g.994.1,G.997.1,ANSI T1,413 Issue 2
— Supports 1 * RJ-45 port for Ethernet over ADSL2.+
— Provides Optional 1 * RJ-45 port for telephone connection.
— Provides 4 * RJ-45 ports for 10/100Mbps Ethernet.
— Provides 1 * Dip Switch for mode selection
— Voice and Data work on the same telephone line
— VX-1000SP MINI 4 port supports maximum bandwidth 27Mbps/1.50Mbps (downstream /upstream)
— Long Reach - performance up to 11000ft
— Mini size design (129.8 x 85 x 27mm)
— Provides rich diagnostic LED indicators
— External Power Adapter
— Easy installation with magnetic mounting assembly: The unit with 2 bottom light magnetic base but extremely powerful magnets attach or mounts to any metal surface
Dip Switch Settings
Dip1: Master(CO), Slave(CPE) switch
Master (CO): VX-1000SP MINI4 DSLAM acts as Master / Central Office (CO) side.
Slave (CPE): VX-1000SP MINI4 DSLAM acts as Slave / Customer Premise Equipment (CPE) side.
