Specifications
1.virtual simulation software2.steel making,iron making simulation training
3.educational training equipment

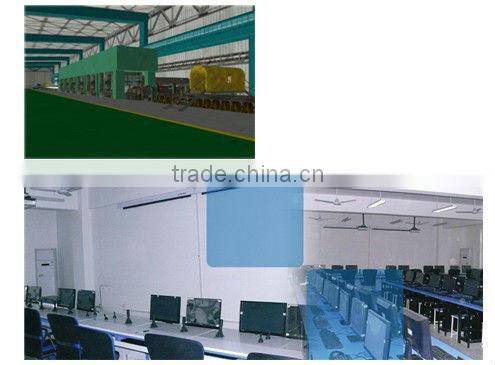

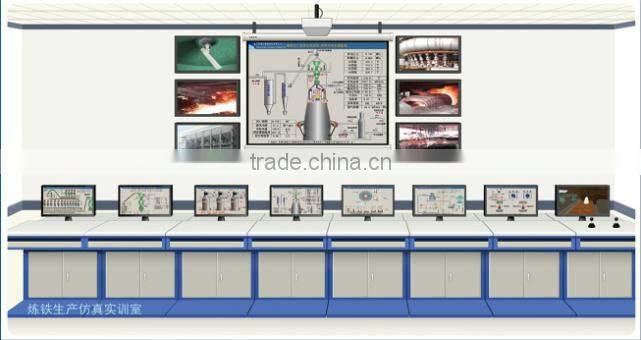

Virtual Simulation Software,Steel making,iron making VIRTUAL Industrial Production LINE I System overview
This training system uses virtual reality technology to complete the producing of all processing equipment
and scene of steel producing, special equipments and engineering vehicles. It uses advanced computer
technology making the simulation of whole process monitoring system, through network communication
technology it realizes the interaction among virtual scene, monitoring system and hardware. Under the
driving of physical model, process model and experience model, it realizes the process according to real
industrial production.
Scope of application: 1 Be suitable for pre-post training of steel enterprise staff.
2 Being applied to teaching and training in vocational colleges of steel industry.
3 Be suitable for steel enterprises and vocational colleges professional matches.
4 Being applied to assessing, evaluating
IICharacteristics of system
1 Vivid locale control environment
2 Simulating monitor interface
3 Virtual controlled objects
4 Thorough comprehensive evaluation system.
III System Introduction

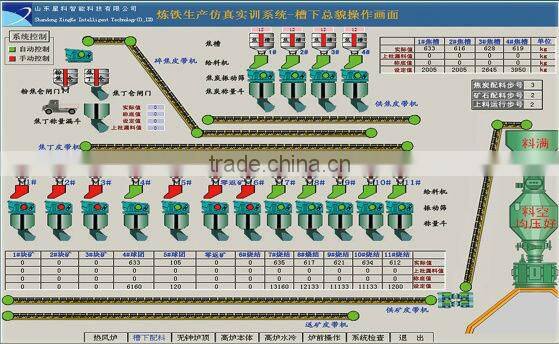

1 Ironmaking produce simulation practical training system includes: under groove batching system, top
groove fabric system, blast furnace body system, hot blast stove system, complete system before blast
furnace process, etc.
2 Steelmaking produce simulation practical training system includes: Hot metal pretreatment, converter
steelmaking, LF refining, slab continuous casting slab complete technological process, etc.

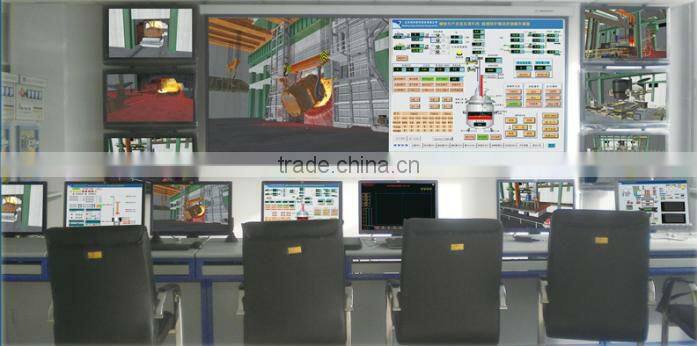

XINGKE steel making production-simulation training system is aiming at the whole steel making process flow using 3D animation technology,
including: equipments and scenes in the whole process flow of hot metal preprocessing, converter
steelmaking, LF refining, slab continuous casting. The system virtually makes the whole process flow of
secondary automation monitoring system and operation-and-control hardware equipments (virtual local operation platform). And by the network it can completely
communicate and interact with the virtual scene and equipments. And it completes the steel making
process flow training fitting reality driving by physical model and technology model.

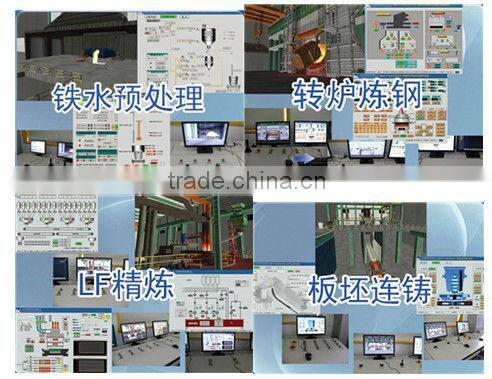

Hot metal pretreatment
converter steelmaking
LF refining
continuous casting slab

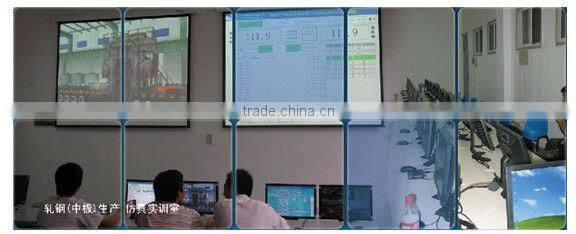

3. Steel rolling (HSM)produce simulation practical training system includes: heating furnace,rough rolling, finishing rolling, laminar
cooling, coiling complete technological process, etc.
4 Steel rolling(plate)produce simulation practical training system includes: Heating furnace, roughing and finish rolling,
straightening, the laminar cooling, cooling bed, shear plate, stacking complete technological process, etc.

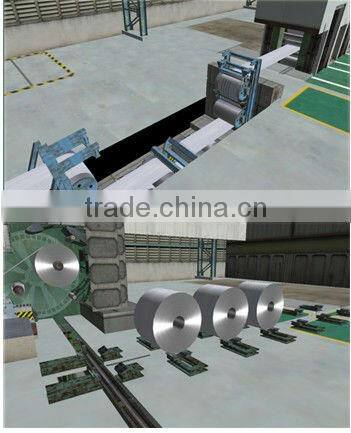

5 Cold rolling produce simulation practical training system includes: 1#outlet loop(4# 5#Rectification roll) 6#Rectification roll 5#tension roll 2#outlet loop 7#Rectification roll 6#tension roll
8#Rectification roll three roll tensioning device, 1 # - 4 # mill, flatness gauge, outlet pinch roll, drum type flying shear, Carrousel coiler, steel coil transporter,
outlet walking beam, inspection station (uncoiler, examination platform), etc.

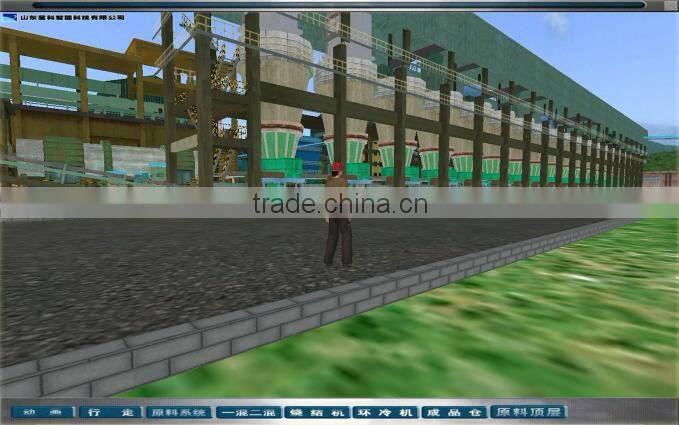

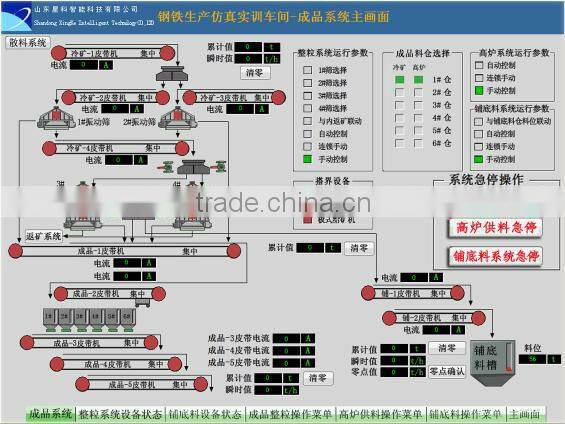

6 Sintering produce simulation practical training system includes:Feeding system, mixing system,
hybrid system, burn cold system, bulk material system, finished the whole grain system, spread bed
charge system, blast furnace feeder system, ignition system complete technological process, etc.
