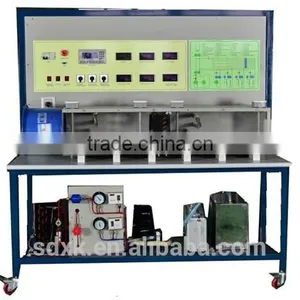

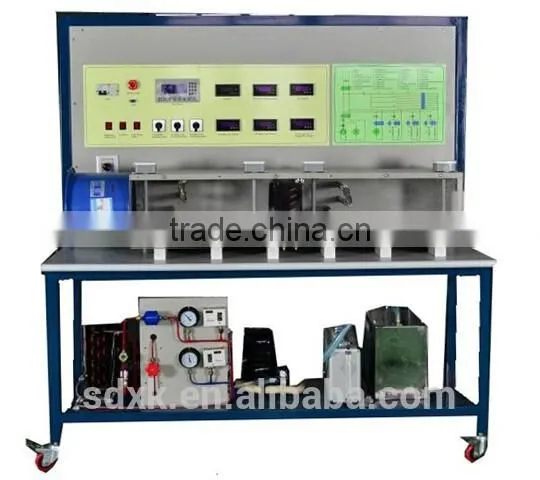

XK-RAC-1 Refrigeration data analysis system training device
1. Product overview
The device is mainly to demonstrate the central air conditioner system structure principle. The function is to simulate indoor environment control factors, can change and measure the wind pressure, heating, refrigeration, humidity and etc. with data acquisition function. The device is connected to the data collecting and software analysis display system of the computer by ports, visual display the system each key part data information of temperature, humidity, pressure and etc.
Device is composed of a complete refrigeration system, wind pipe system, control display system, circuit control system, refrigeration system is equipped with pressure protection switch, pressure meter, pressure sensor, liquid viewing glass. Wind pipe system constitutes by speed regulating fan, 4 pcs heating pipe, dry humidity sensor, tilt type pressure gauge, etc. circuit control system is equipped with earth leakage protector, emergency stop switch, regulating switch, digital display voltmeter and 5 pcs ammeter, etc. assorted with intelligent displayer, 8 way temperature acquisition module, 2 way pressure acquisition module, 4 way dry humidity acquisition module which are used for data acquisition and communication with upper pc. The device is equipped with 4 universal directional wheel, convenient to move.
2.Technical parameters
1)power supply: single-phase three-wire AC220V ±10% 50Hz
2)Capacity: <6kVA
3)Refrigerant type:R22
4)Size: 1600×660×1700mm
5)Net weight: about 80kg
6)Power supply main switch with earth leakage protection
7)With accident emergency stop button, voltage and current indication.
3.Training device accessories(not standard configuration)
1)Vacuum pump: 1 set
2)Double meter valve fluorine filling meter unit: 1set
3)Metric conversion adapter: 2set
4. Device function
1)To understand the function of each components composed by training device
2)To understand the structure of each components composed by training device
3)To understand the working principle of refrigeration system
4)Refrigeration system leakage detecting training operation
5)Refrigeration system pressure maintaining training operation
6)Refrigeration system vacuum pumping training operation
7)Refrigeration system refrigerant filling training operation.
8)To master the basic work and control principle of heating method
9)To understand circuit system control principle
10)To understand data acquisition system application
11)To master each main points’ data information
12)To understand the application of training device and upper PC software
