XK-GCR1 Cycle Refrigeration Trainer for Teaching Aids
1. Equipment Overview:

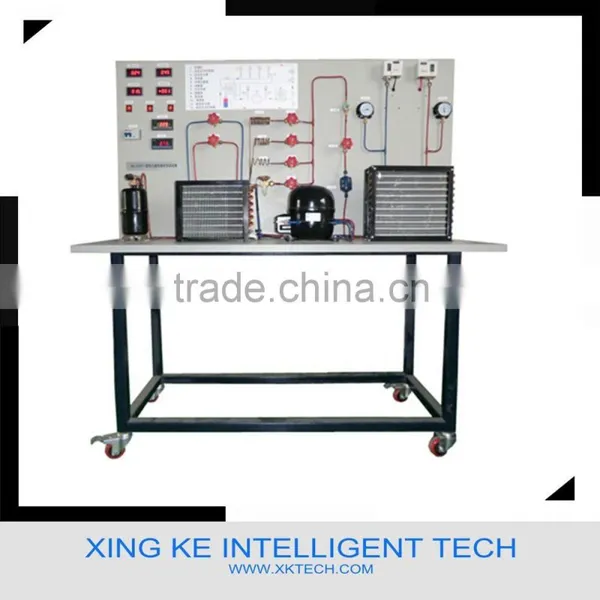

XK-GCR1 Cycle Refrigeration Trainer for Teaching Aids focuses on introduce the structure and principle of each components that constitute the compression-type refrigerating system. Shows the comparison of each kind of throttling mode and the refrigerant quantity how to influence the Refrigeration effect.
Equipment refrigeration system mainly consists of compressor,heat exchanger,dry filter, four kinds of throttling device,pressure protection switch,liquid view lens,high & low pressure meter; Electrical system includes leakage protector,voltmeter,ammeter,digital display thermometer. Equipment equipped with four universal wheels, convenient for moving.
2. Technical Parameter:
1)Input power: Single phase three wires AC220V ±10% 50Hz
2)Capacity: <0.8kVA
3)Overall size: 1500mm×600mm×1620mm
4)Refrigerant type: Environmental protection refrigerant, R600a
5)Net weight: Appr.50Kg
6)Power main switch with leakage protection IΔn≤30mA, time≤0.1S
7)With voltage,current indication and temperature indication
3. Attachment for equipment (Non standard configuration)
1)Vacuum pump: 1set
2)Double table valve fluorine filling meter set: 1set
3)Metric / British system conversion connector: 2sets
4. Equipment Training Project
1) Understand the main components of refrigeration system
2) Understand the principle and function of refrigeration system main components
3) Understand the working principle of refrigeration system
4) Understand the control principle of electrical system
5) Pressure maintaining and detecting of refrigeration system
6) Vacuumize of refrigerating system
7) Method for charging refrigerant and judgment
8) Comparison training of refrigeration system various throttling way
9) Influence of refrigerant quantity to refrigeration effect
10) Understand the judgment method that refrigeration system do not work or refrigeration effect not good
