Patented Rapeseed and Peanut Oil Refining Machine

 Specifications :

2-20T/D Oil Refining Machine

1. Production capacity :2-20T/D

2 High oil yield

3 Simple operation ,saving investment.

Description Machine :

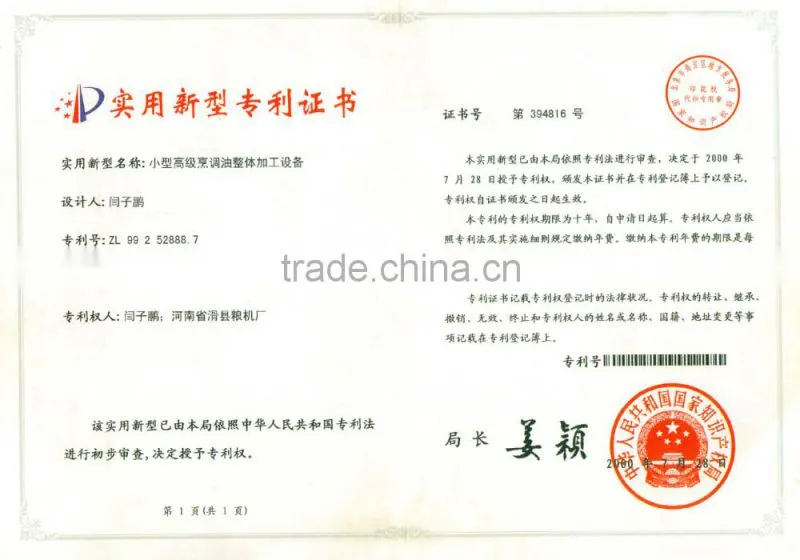

We obtained patent of small scale of high-class cooking oil machine in 2000,the patent No. is ZL99252888.7 and won gold award  on China Exhibition of Patents.

The equipment belong to intemittent oil refining equipment ,it has all functions as large and middle scale of equipment.

Equipment profile:

It has its heat source,,electrical control,with features of light weight  and electricity saving .Only turning on power and connecting water,prepare little coal or firewood ,caustic soda , phosphoric acid , bleaching clay and other materials, the equipment can be operated.

Craft flow sheet:

                             Caustic soda               Hot water          Bleaching clay          Vaccum

            H3PO4             ↓                                ↓                        ↓      Filtration      ↓

Crude oil→Alkali refinng deacidification→Water washing→Decolorization→Deodorization → Finished oil

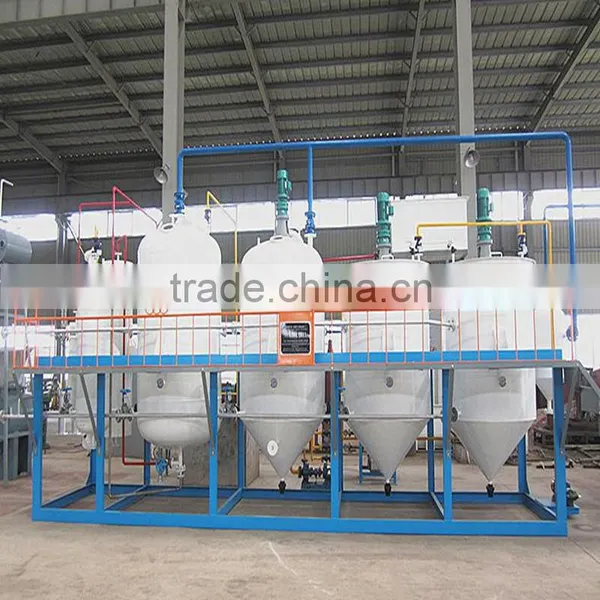

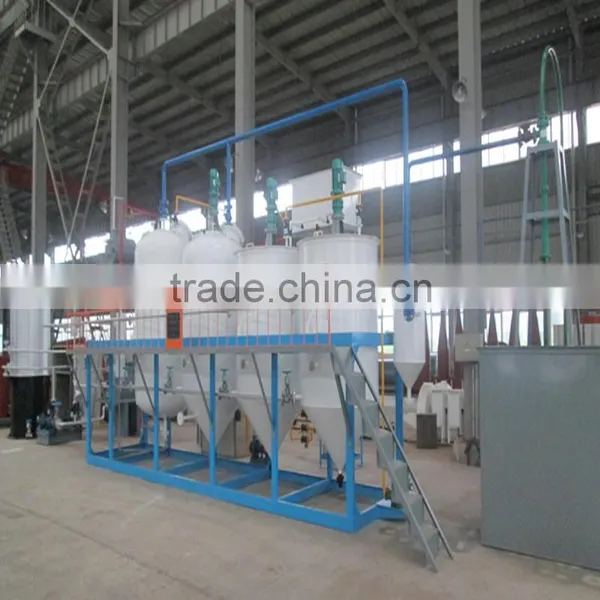

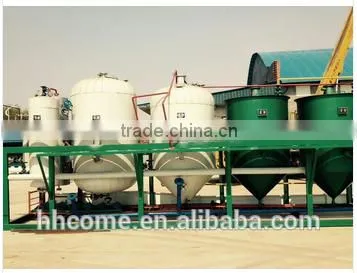

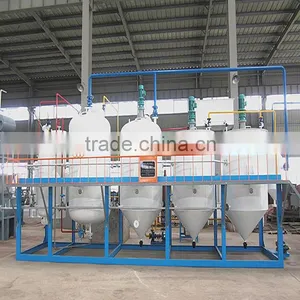

Introduction of main equipment:

1. Oil refining tank: For acid refining ,alkali refining and water washing degumming .

2. Declorization tank: Bleach oil and remove pigment.

3. Deodorization tank: Remove odor of oil (Made of stainless steel)

4. Heat conduction oil furnace : provide heat energy for production,the temperature can reach 280°c.

5. Vacuum pump : Provide vacuum degree for bleaching and deodorization ,up to above 755mgHg.

6. Air compressor: Dry bleaching clay.

7,Filter press : Filter bleaching clay

8. Steam generator: Provide steam for deodorization.

9. specification :2-20T/D

Equipment features:

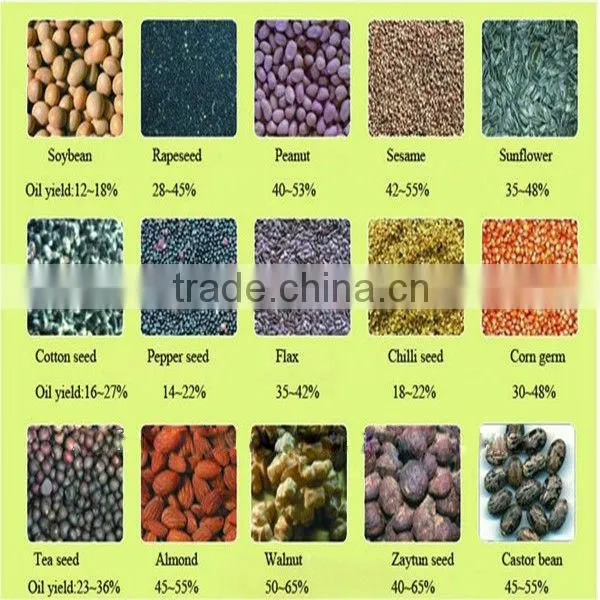

Simple operation,saving investment, is suitable for oil whose procesing capacity is below 20T/D, such as soybean oil ,cottonseed oil ,rapeseed oil ,sunflower oil,peanut oil ,palm oil ,etc.

 Henan Huatai Cereals and Oils machinery Co.,Ltd , formerly  Henan province Huaxian Grain Machine Factory,located in Huaxian Industry Zone of Henan province ,covering an area of 100,000.00m²,owing 580 staffs, has 8 processing workshops ,12 installation teams ,202 sets of machining equipment ,is a large -scale  oil machinery manufacturing  enterprise integrating R&D,design ,manufacture and installation.

We have the most complete production certification of oil machines,such as "Desing License of pressure vessel ","Manufacture  License of  pressure vessel","'Design License of  pressure pipeline ", "Installation License of pressure pipeline",and"Manufacture License of Organic Heat - Loading Furnace"issued by General Administration of Quality Supervision,Inspection and Quarantine ,also have self-supported import &export right and has passed ISO9001:2008 Quality  Management  System Certification,won Henan provincial famous brands "Huatai"&"Hangpeng"
