XK-BX02TRAINING DEVICE FOR ELECTRIC CONTROL SYSTEM OF REFRIGERATOR
PRODUCT INTRODUCTION
Main refrigeration units are shown outside of refrigerator for students observing and learning
Electric elements are arranged on the panel, the panel with electrical symbols and wiring jacks. Safety wires could be used for building up the control circuit of refrigerator.
Equips with teacher special switches, if students set up the wrong circuit, teacher use their special switch to make refrigerator work normally
Equips with voltage meter, current meter and 8 way temperature digital displayer, they are for observing the working voltage, current data and key point of temperature.
Equips with high pressure gauge and low pressure gauge, they are for observing the static pressure and working pressure of system.
Refrigeration high, low pressure lines are separated to painted red and blue, it is for study and good appearance.
Training equipment installs with 4 universal wheels for moving conveniently.
TECHNICAL PARAMETERS
Input power: Single phase three wire AC220V ±10% 50Hz
Installed capacity: <0.5kVA
Size: 1050mm×600mm×1470mm
Refrigerant type: Fluorine free environmentally friendly refrigerant
Total power switch with leakage protection IΔn<30mA, time <0.1S
Power supply indication, voltage, current indication and temperature indication
Net weight: around 50Kg

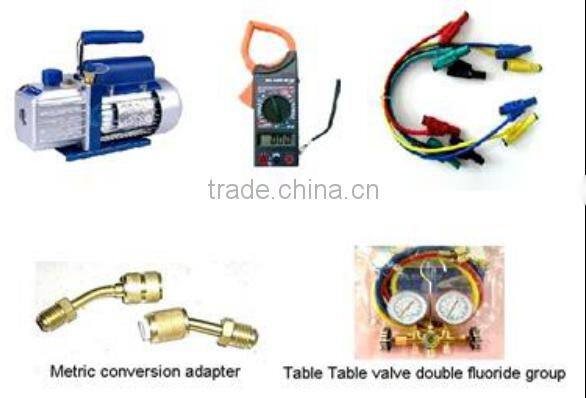

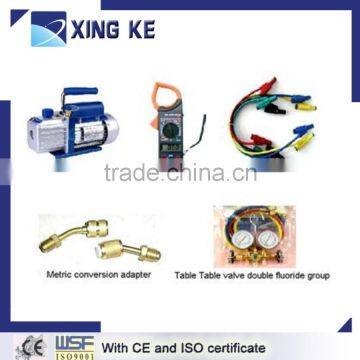

ACCESSORIES
Digital clamp meter: 1
Vacuum pump: 1
Double table valve filling fluorine table group: 1
Metric conversion joint: 2
Safety connecting line: 30
TRAINING ITEMS
Understanding the components and functions of the components of the refrigeration system
Understanding the working principle of refrigerator cooling
Understanding electric control element structure of refrigerator
Understanding of the application of electrical control components
Refrigeration system leakage detection, pressure maintenance training
Refrigeration system vacuum pumping and charging refrigerant
Electric control circuit training of direct cooling refrigerator
Indirect cooling refrigerator electric circuit training
Understanding the principles of the PTC startup circuit
Understand the circuit principle of capacitor starting, capacitor running.
