Product Details
Place of Origin: | Shandong, China | Brand Name: | XingKe | Model Number: | XK-WAC-A2 |
Packaging Details
plywood case
Product Description

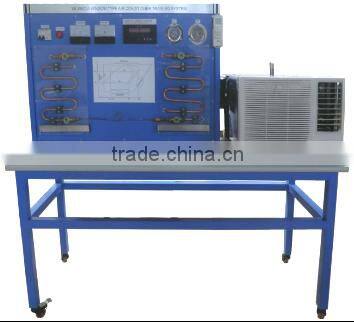

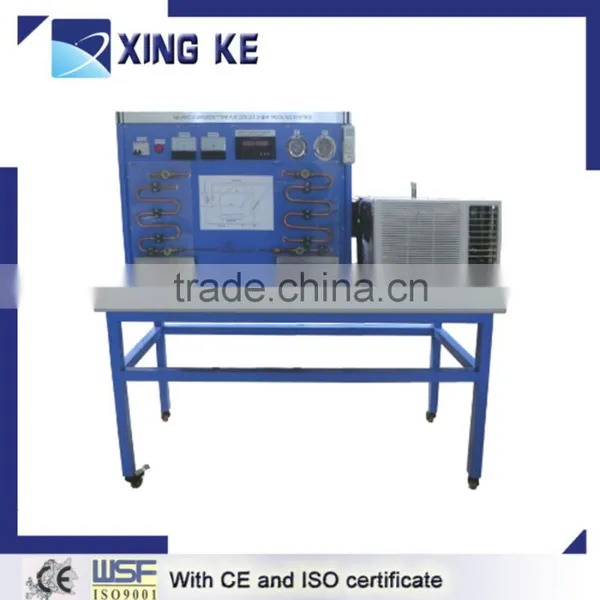

XK-WAC-A2
WINDOW TYPE AIR CONDITIONER TRAINING DEVICE
PRODUCT INTRODUCTION
- The training device is composed of one real window type air conditioner which with functions of refrigeration, heating, dehumidification etc
- Air conditioner housing shell is transparent acrylic plate, which is convenient for students to observe internal structure of window type air conditioner
- The condenser and the evaporator of the air conditioner are respectively extended to the front panel and four lens are installed so as to observe the state of the refrigerant during the air conditioner working.
- Trainer equips with high and low pressure gauge, used to observe the static pressure and working pressure of the system
- Trainer equips with voltage meter, ammeter and 8-way temperature digital displayer, used to observe the equipment operating voltage, current value and the temperature of the key points
- The training equipment is provided with 4 universal wheels, which is convenient to move
TECHNICAL PARAMETERS
Input power: Single phase three wires AC220V ±10% 50Hz
Installed capacity: <1kVA
External dimensions: 1475mm×580mm×1500mm
Refrigerant type: Fluorine free environmentally friendly refrigerant
Total power switch with leakage protection IΔn≤30mA, time ≤0.1S
With power supply indication, voltage, current indication and temperature indication
Net weight: around 50Kg

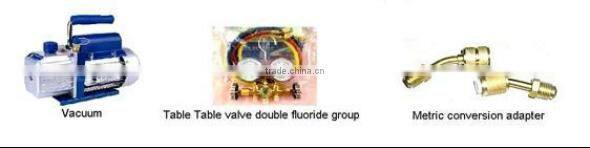

ACCESSORIES
Vacuum pump: 1
Double table valve filling fluorine table group: 1 set
Metric conversion joint: 2 sets
TRAINING ITEMS
- Understanding the various components and the effect of air conditioner system
- Understand the internal structure of window type air conditioner
- Understand the window type air conditioner refrigeration, heating principle
- To understand the characteristics of the new type of fluorine free environmental protection refrigerant R410A and the using notice of R410A
- System for pumping and filling refrigerant
- To know the change of the refrigerant during working in the air conditioner
- Interpretation and application of pressure enthalpy diagram
