XK-GKS1
PROCESS CONTROL TRAINING EQUIPMEN
PRODUCT INTRODUCTION

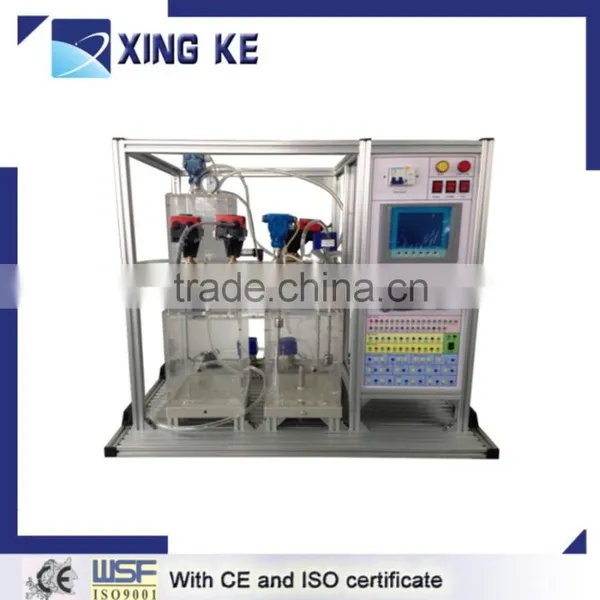

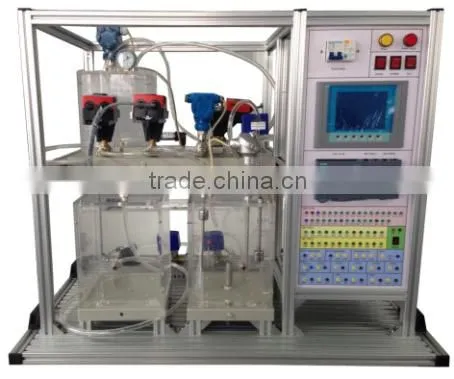

XK-GKS1 consists of control object and PLC control system, it will finish open-loop control and closed-loop control of pressure, flow, temperature, liquid level. XK-GKS1 also will finish typical control system experiments of P,I,D,PI,PID,cascade stage etc.
TECHNICAL PARAMETERS
Power supply: AC220V
Size: 1060*750*840 mm
PLC: BRAND AND MODEL CAN BE SPECIFIED BY USER
Touch screen: 7 inches color touch screen
Water pump: working voltage DC24V, opening flow: 2.6 L/min
Electric control valve: power supply DC24V, valve position control input 0-10V, valveposition feedback output 0-10V
Electric heating tube: AC220V, power: 800W
Pressure transmitter: power DC24V, two wire system 4-20mA output, range: 0-4KPa.
Capacitive liquid level transmitter: power source DC24V, two wires system 4-20mA output, range 0-240mm.
Flow transmitter: power DC24V,two wires system 4-20mA output, range 0.04-0.25m3/h.
PT100 temperature transmitter: power source DC24V, two wires system 4-20mA output, range 0-100 ℃
TRAINING ITEMS
Pressure open loop control and PID closed-loop control
Liquid level open loop control and PID closed-loop control
Flow open loop control and PID closed-loop control
Temperature potential control and PID closed-loop control
Cascade control
