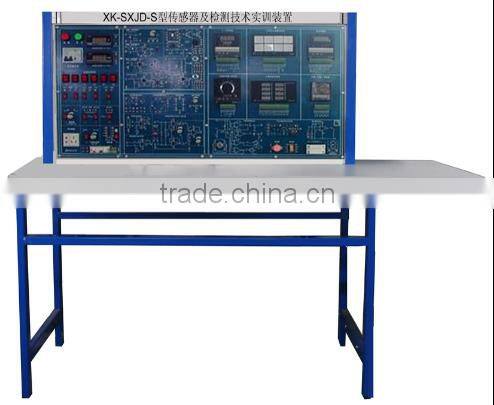

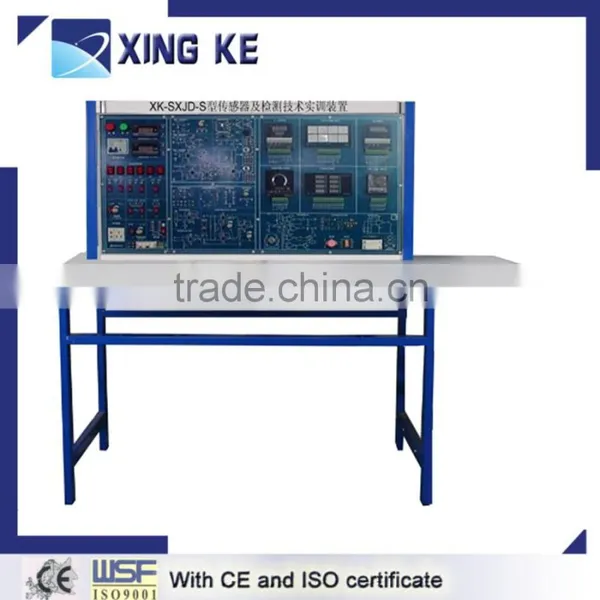

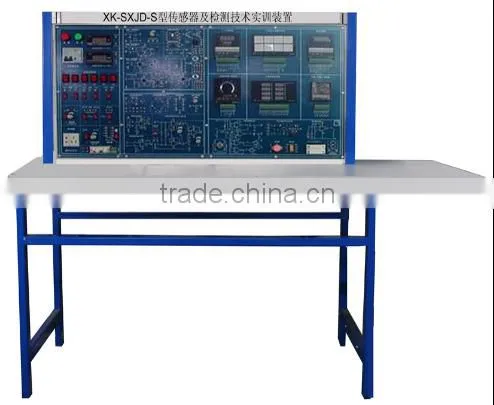

XK-SXJD-S Sensor and Detection Technology Training Device
1. Product overview
This sensor and detection technology training device, can operate various sensor (like air sensor, weight sensor, flow meter, decoder, limit switch, infrared lamps) transmitter, industrial use instrument and automatic detection project experiment operation, also can operate data collector application and upper software programming training.
2. Training bench technical indicator
(1) Size: L*W*H=1500*730*1430(mm)
(2) Power supply: single phase AC220V±10% voltage, frequency 50.60Hz, power<50VA.
3. Experiment power supply:
(1) ±12V DC voltage source, capacity 1A
(2) ±5V DC voltage source, capacity 1A
(3) 1~24V adjustable DC voltage source, capacity 1A
(4) 4~30mA constant current
(5) DC24V voltage source, capacity 1A
(6) AC24V voltage source, capacity 1A
(7) Dual AC12V AC voltage source, capacity 1A
(8) DC ampere display meter : input range 0~250mA.
(9) Voltage display instrument : input range 0~50V.
4. Experiment bench accessories
(1) Data collector: PCI1203, 32 way AD, 2 way DA, 16 ways digital input, 16 ways digital output, assorting data collector software and application example.
(2) Tool box: include three bit half digital multimeter, small cross screwdriver, small slot screwdriver, side-cutting piller, nipper pilers
(3) Experiment jumper line: 200mm, 400mm, 600mm each length 10 pcs
(4) Experiment manual 1 book
5. Experiment list
(1) Ampere voltage signal switching circuit application training
(2) Voltage ampere signal switching circuit application training
(3) RC, LC, active low pass filter circuit knowledge
(4) Common mode choke knowledge and application
(5) Differential amplifier knowledge and application
(6) Instrument amplifier knowledge and application
(7) High sensitive amplifier application and training
(8) Gas sensor amplifier application and training
(9) Reed pipe application training
(10) Hall switch, approach switch, gate magnetic switch, limit switch application training
(11) Sound light double control time delay switch circuit
(12) Weight sensor application training
(13) Thermal coupling thermal resistance choose and application
(14) Gas sensor choice and application
(15) Pressure sensor choice and application
(16) Infrared detection sensor choice and application
(17) Optoelectric insulation circuit
(18) Incremental encoder application experiment
(19) Bourdon tube voltmeter application training
(20) Pressure transmission voltage test experiment
(21) Turbine flow sensor flow application training
(22) 90℃ double metal sensor application training
(23) Infrared diffuse reflection acquisition sensor application and training
(24) Temperature digital display instrument application training
(25) Digital display meter application training
(26) Digital display alarm application training
(27) Multiple way temperature inspection instrument application training
(28) Time counting rotate meter application training
(29) PID monitoring instrument application training
(30) 8 ways flash alarm control meter application training
