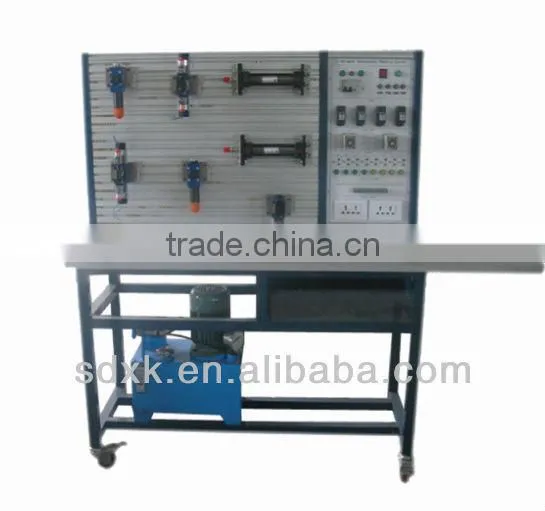

Basic Hydraulic Trainer Educational Equipment
1. Products overview
The bench adopts control plate the PLC control of relay control and the outer expansion two ways, configured with a common hydraulic components for Practical Teaching in the mechanical, electrical and mechanical integration.
2. Technical parameters
Size:1600mmx600mmx1530mm
The power supply: the three-phase AC380V, power < 2000 VA.
Motor: Y80 power: 1.5KW s peed: 1400r/Min voltage: 380V
Pump: CB-FC10 rated displacement: 2ml/rev rated pressure: 0.8MPa
3. Performance and characteristics
The bench adopts design of the vertical table-mounted, electrical controls for right mounted arrangement.
The control panel for the hydraulic control panel with PLC connection interface and relays are two control modes, the electrical system for the independent control mode without disturbing each other, and safe 24V voltage.
The hydraulic bench set system oil temperature rise detection sensors and system pressure unloading control device;
Hydraulic bench components adopt industrial physical body, you can achieve the purpose of the actual field operations.
When the hydraulic system pressure in working not greater than 5Mpa, hydraulic components without leakage.
The hydraulic station equipped with flow control valve, can according to the requirements to adjust the required flow quantity for diversion, and is equipped with a flow meter can regulate and control when needed.
Operating platform adopt T-type aluminum alloy sections to produce, with a specially designed component modules, can be freely combined to tap into a variety of experimental loop.
4. Experimental contents
A hydraulic drive system composed of a demonstration experiment.
Each element, components structure of the hydraulic drive, and working principle to observe, dismounting experiments.
A variety of hydraulic circuit control experiment.
