Hydraulic trainer,pneumatic trainer,XK-QDYY1A PLC control double side hydraulic and pneumatic transmission equipment
Product overview:

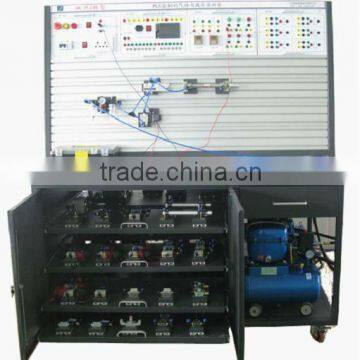

XK-QDYY1A type PLC control double side hydraulic and pneumatic transmission trainer,provide hydraulic
and pneumatic two kinds components,and equipped with each independent PLC electrical control module,can
carry out each independent experiment simultaneously. Such reduced the purchasing cost and saved the
experiment site.on the basis of ensuring complete the two integrated groups experiment,save the resources
effectively and have a high cost performance.
The experiment platform adopt standard industrial hydraulic,pneumatic components and newly modular design,
system combination connection is convenient.The training platform equipped with large quantity training projects
corresponding to actual industry.can cultivate and promote the students design ability,operational ability and
integrated using ability,play a role of strengthening design experiment and comprehensive training.
hydraulic part
1.main characteristics
1)training platform structure
Made by 2.0mm cold-roll steel sheets,the whole experiment platform structure is reasonable,surface coating process,elegant
appearance, T type slot aluminum operating platform
2)industrial components
The platform adopt standard industrial hydraulic components,each components use industrial hydraulic famous
brand products from Beijing Huade company,etc. and close to industrialization.
1)components modular design
2)connection convenient
3)strong practical performance
6) excellent oil supply system
7)diversification control
8)system security
nical parameters
1)device size:1500mm×1000mm×1800mm
2)power supply and signal source
(1)three-phase four-wire AC380V,50Hz
(2)three-phase power supply main switch with earth leakage protection.
(3)with emergency button and power supply, power indicator lamp
(4)provide 1 route DC24V DC voltage source output
3.main device
1)training platform
7)hydraulic pump station
8)oil tank

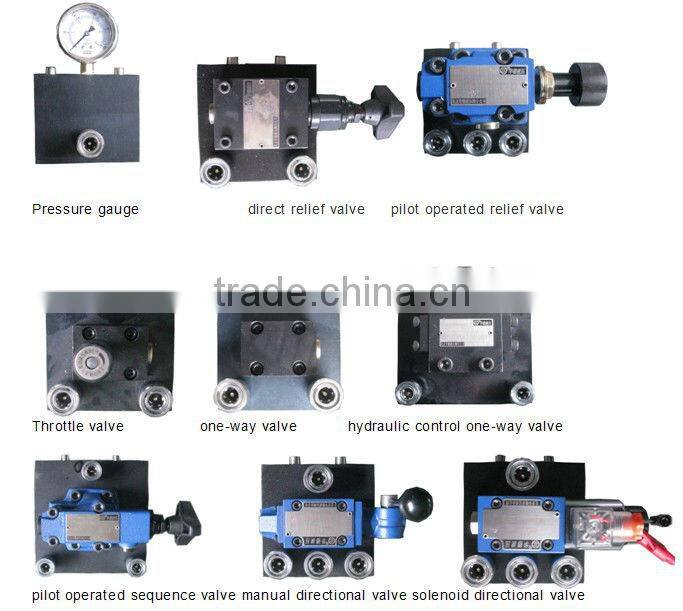

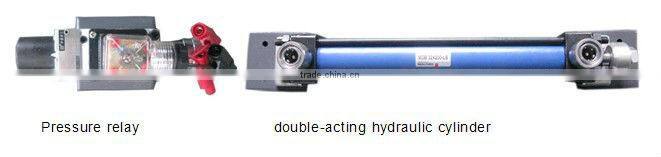

9)commonly used hydraulic components
4.training project
1)hydraulic circuit experiment
(1)directional valve’s reversing circuit
(2)directional valve’s lock circuit
(3)hydraulic one-way valve’s lock circuit
Pressure control circuit
(4)Overflow valve single-stage voltage regulation circuit
(5)Double-way voltage regulation circuit
(6)Multi-stage voltage regulation circuit
Relief circuit
(7)directional valve’s relief circuit
(8)Pilot operated overflow valve’s relief circuit
(9)Overflow valve and pressure relay’s relief circuit
(10)Reducing valve’s pressure reduced circuit
Balanced circuit
(11)sequence valve’s balance circuit
(12)Hydraulic control valve’s balance circuit
Throttle speed regulating circuit
(13)throttle valve’s oil inlet route throttle speed regulating circuit
(14)Throttle valve’s oil return route throttle speed regulating circuit
(15)Throttle valve’s bypass throttle speed regulating circuit
(16)Speed regulating valve’s throttle speed regulating circuit
Speed transition circuit
Hydraulic cylinder synchronous circuit
Hydraulic cylinder sequence action circuit
2)analysis and control logic of hydraulic circuit controlled by relay
3)Analysis and PLC applicable programming of hydraulic circuit controlled by PLC
4)hydraulic transmission training project
5)hydraulic transmission system modeling and simulation
‚pneumatic part
nical parameters
1)size: 1500mm×750mm×1800mm
2)power supply and signal source
(1)single-phase AC220V,50Hz
(2)single-phase power supply main switch with earth leakage protection
(3)with emergency stop button and power supply,power indicator lamp
(4)provide 1 route DC24V DC voltage source output.
3)device capacity:<1KW
4)Silent air compressor
(1)input voltage:AC 220V/50Hz
(2)motor power:550W
(3)rated output pressure:0.7Mpa
(4)air pump volume:10L
(5)working noise:<56db
3.Main equipment
1)Training bench

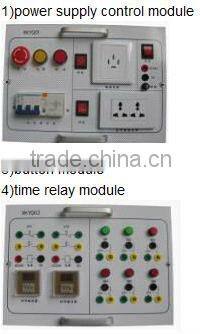

2) Power control module
3)Button module
4)Time relay module

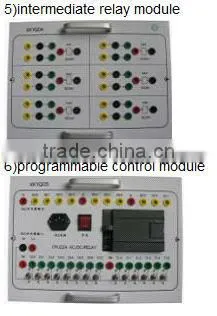

5)Intermediate relay module
6)Programmable control module
7)Ultra-quiet Air Compressor
4. Experiment project
1)Pneumatic circuit experiment
Single acting cylinder reversing circuit
Double-action cylinder reversing circuit
Single acting cylinder speed control circuit
Double acting cylinder one way speed regulation circuit
Logical valve application circuit
Single cylinder up down control circuit
Single cylinder continuous return control circuit
2) Button control pneumatic practical system
3) Relay control pneumatic practical system
4) PLC control pneumatic practical system
5)Pneumatic practical system integrated design ability practical training
6)Pneumatic drive system modeling and simulating
7)Programmable controller (PLC) electric control experiment
