XK-DCSF1 DC MOTOR CLOSED-LOOP CONTROL (SPEED) EXPERIMENT SUITCASE
PRODUCT INTRODUCTION

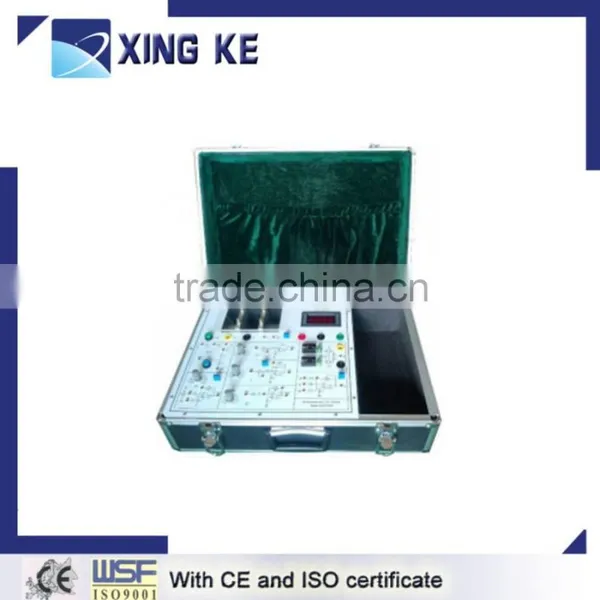

XK-DCSF1 is one kind of experiment device that help user learn the DC motor speed closed-loop regulating loop (P.I.D). XK-DCSF1 consists of perturbance circuit, P circuit, I circuit, D circuit, added circuit and motor drive circuit. XK-DCSF1 box adopts aluminium alloy structure, composed by high performance DC motor components
TECHNICAL PARAMETERS
Overall size: 450×300×150 mm, Weight: 6Kg
Power source: single phase, AC220V, frequency: 50/60Hz, power ≤15VA
With power supply indication, main power indication, grounding protection and
-Over current protection
Working environment: temperature -10℃~+40℃
Signal source technical parameter
- DC ±5V voltage source, capacity: 1A
- DC ±12V voltage source, capacity: 1A
- DC motor
- Rated voltage: DC12V
- Rated speed: 3000 rpm
- Power: 30W
- Tachometer
- Rated voltage: DC5V
- Measurement range: 1~9999 rpm
- Measurement rate: 1~2/s
ACCESSORIES
Power line 1pce
K4mm jumper wires 3pcs
K2mm jumper wires 15pcs
Product Manual 1pce
Screwdriver 2pcs
TRAINING ITEMS
The understanding of the DC motor
The understanding and application of the DC motor drive
DC motor manual control experiment
P (speed) closed-loop control experiment
PI (speed) closed-loop control experiment
PID (speed) closed-loop control experiment
DC motor typical speed loop control (PID) experiment
DC motor disturbance signal closed-loop speed control (PID) experiment
