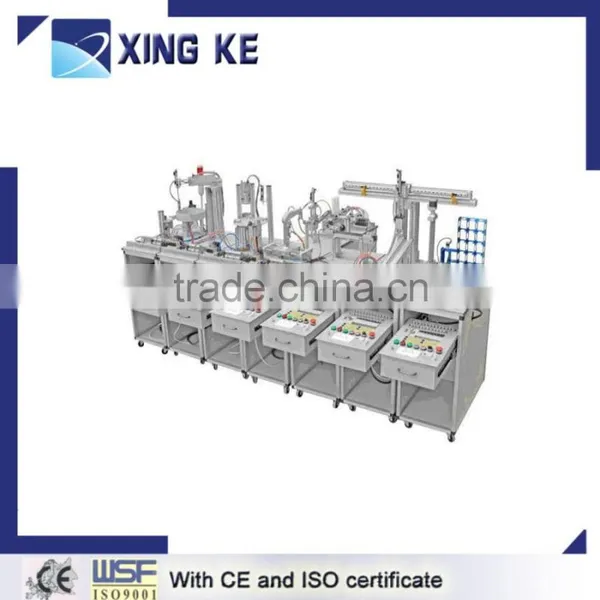

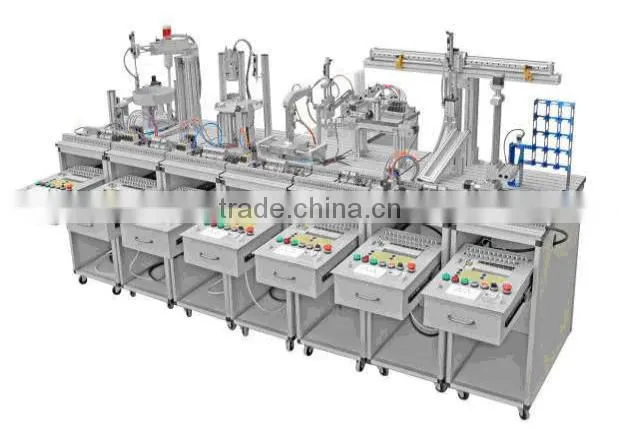

XK-MPS801A FLEXIBLE PRODUCTION LINE TRAINING SYSTEM
(8 STATIONS)
PRODUCT INTRODUCTION
This device constitutes by many independent and closely linked work stations, it is suitable for training and practice for mechatronics, automation, automatic control related majors. The experiment device has much better flexibility, that each station is independently controlled by one set PLC control system, and if each module is separated for training, can allow more student studying at the same time. After the basic unit module training is finished, also can link the adjacent two stations, three stations....till eight stations together, to learn the control, programming, assembly and adjustment technology of complex systems
TECHNICAL PARAMETER
1 Feeding detection unit
1.1 Size(long * wide * height):720mm×400mm×1400mm
1.2 Composition
Mechanical part
Chute
Revolving platform
Work piece slide way
Lifting device
Control part
Programmable controller(1 set)
Switch power supply:220V/ 24V/ 5A(with short circuit protection)
Control panel: button
24V gear deceleration motor
A group electric control value and its executive parts
Touch screen:7 inches (colorful)
1.3Technical index
Power supply:220V/1A
Executive drive voltage:24V/5A
2 Robot transportation unit
2.1 Size(long * wide * height):720mm×400mm×1400mm
2.2 Composition:
Mechanical part
Mechanical air claw
Revolving platform
Stretching cross arm
Control part
Programmable controller(1set)
Switch power supply:220V/ 24V/ 5A(with short circuit protection)
Control panel: button
A group of electric control value and their executive component.
2.3 Technical index
Power supply:220V/ 1A
Executive drive voltage:24V/5A
3 Manufacturing unit
3.1 Size(long * wide * height):720mm×400mm×1400mm
3.2 Composition
Mechanical part
Revolving working platform
Punching motor module
Detection cylinder module
Detection work piece and revolving platform arriving sensor
Control component
Programmable controller(1 set)
Switch power supply:24V/ 2A(with short circuit protection)
Control panel: button
24V gear motor
A group of electric control valve and its executive components
3.3 Technical index:
Power supply:220V/ 1A
Executive drive voltage:24V/5A
4 Assembly Unit
4.1 Size(long * wide * height):720mm×400mm×1400mm
4.2 Composition:
Mechanical part
Sucking disc
Radial component
Bin transposition parts
Work piece introduced parts
Vacuum generator
Control component
Programmable controller (1set)
Switch power supply:220V/ 24V/ 5A (with short circuit protection)
Control panel: button
A group of electric control valve and its executive component.
4.3 Technical index
Power supply:220V/ 1A
Executive drive voltage:24V/5A
4.4 Main function
It is composed of round chute, sucking disc robot, up and down radial component, bin transposition component, work piece introduced component, vacuum generator, switch power supply, programmable controller, button, I/O interface panel, many kind electromagnetic valves and cylinder. it is mainly to finish feeding material and assembly process. the round chute is used to contain different work piece. If the “station that is waiting for processing” has material, through the bin transformation parts selection the work piece that is going to be assembled, and use the radial parts and vacuum sucking disc to transport work piece on the material, thus to implement integrating and manufacturing the big and small objects.
5 Lifting and transportation unit
5.1 Size(long * wide * height):720mm×400mm×1400mm
5.2 Composition:
Mechanical part
Parallel moving working platform
Revolving working tower
Lifting arm
robot
Control part
Programmable controller( a set)
Switch power supply:220V/ 24V/ 5A(with short circuit protection)
Control panel: button
A group of electric control valve and its executive components.
5.3 Technical index
Power supply:220V/ 1A
Executive drive voltage:24V/5A
5.4 Main function
Composed of lead screw, pneumatic paw, double action cylinder, switch power supply, programmable controller, button, I/O interface panel, many kinds electromagnetic valve, it is mainly to finish transporting the work piece after processing to “next unit” from ”processing unit”
6 Transportation and sorting unit
6.1 Size( long * wide * height):720mm×400mm×1300mm
6.2 Composition:
Mechanical part
Belt conveyor
Frequency converter
Color and material sensors
Waste material bin
Control components:
Programmable controller(a set)
Switch power supply:220V/ 24V/ 5A(with short circuit protection)
Control panel: button
One group of electric control valve and its executive components
6.3 Technical index
Power supply:220V/ 1A
Executive drive voltage:24V/5A
