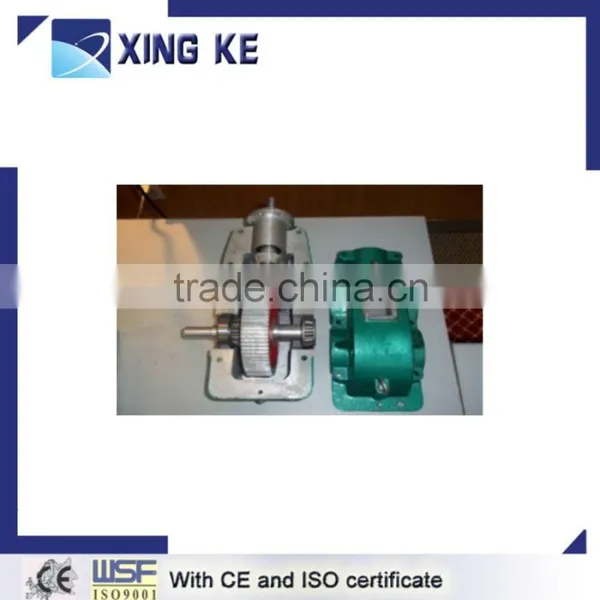

XK-JSJ3 BEVEL GEAR REDUCER TRAINER
PRODUCT INTRODUCTION
This bevel gear reducer is a teaching module, it is made of aluminum alloy material, used for teaching in schools
Bevel gear reducer is one type of helical gear reducer, it is a specialized reducer of all kind reaction still, the gear has hard teeth surface, with the characteristics of large load capacity, low noise, long lifetime, high efficiency, stable rotary and etc. When rotary, will convert and output the power of motor, internal combustion engine and other devices rotated in high speed.
Reducer is one kind of power transmission mechanism, it uses gear speed convertor, to reduce the turnover number to requirement, and get a bigger torque. The gears with less turnover number on the input axis is meshed with the gears with more turnover number on output axis, through increasing the reducer output torque, to reduce speed to meet the requirement, at the same time, also can change the motor output axis position.
TECHNICAL PARAMETER
Size: 300 mm × 220 mm × 245 mm
Product weight: 8kg
TRAINING ITEMS
Gear original parts mapping work
Gear original parts transmission parameters analysis and calculation
Reducer structure design and analysis
Reducer sealing device design and analysis
