Specifications
1.educational training equipment2.0615 ordinary lathe

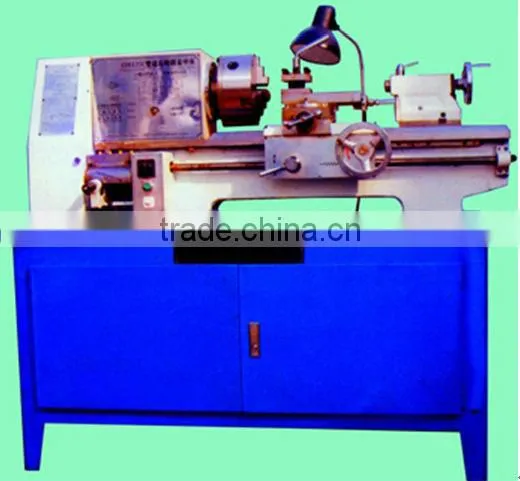

vocational training equipment, ordinary lathe
Main performance and features:
The machine is a ` with high efficiency, low consumption, desktop ordinary instrument lathe, except has light structure, flexible operation, convenient maintenance, outside the common advantages of beautiful appearance, also has a large spindle hole (Φ 60), the big three jaw chuck Φ (200), double speed motor, and the characteristics of the motor power of the larger. In addition to the general small workpieces, the machine can also replace big lathe cylindrical short pieces of processing, have the effect of "small machine with large machine tool" design is reasonable, safe and convenient operation, energy saving effect is good.
With double speed motor as power source for the machine tool to machine tool, a pagoda pulley, v-belts transfer power to the main shaft. By selecting a two-speed motor is a high speed and moving triangle on the pagoda wheel position six reverse speed. The machining of single piece or small batch production, is the ideal metal cutting machine tool.
The main specifications and parameters:
project |
unit |
parameter |
||
Type no. |
|
C0615 |
C0615C |
|
Rotary lathe bed biggest workpiece diameter |
mm |
250 |
||
Maximum processing length |
mm |
300 |
490 |
|
Rest the largest workpiece turning diameter |
mm |
123 |
||
Main shaft aperture |
mm |
Φ60 |
||
The spindle speed range (level 6) |
R/min |
240-1200 |
||
Turning metric thread pitch range (8) |
mm |
0. 5-3 |
||
Turning inch thread pitch range (grade 7) |
tpi |
11-24 |
||
Longitudinal feed (27) |
mm |
0.045-0.17 |
||
Top sleeve top mobile distance |
mm |
50 |
||
A taper sleeve |
|
3# |
||
The motor power |
kw |
1.5-2.4 |
||
Overall dimensions (length * width * height) |
mm |
1030*550*1200 |
1230*550*1200 |
|
Machine net weight |
kg |
306 |
326 |
|
