XK-EVD1 DVD Player Practical Training Device
1. Product Introduction
XK-EVD1 mainly show the composition of DVD player electrical system and mechanical system and working principle, training includes player common faults analysis and debugging & troubleshooting for power & circuit fault

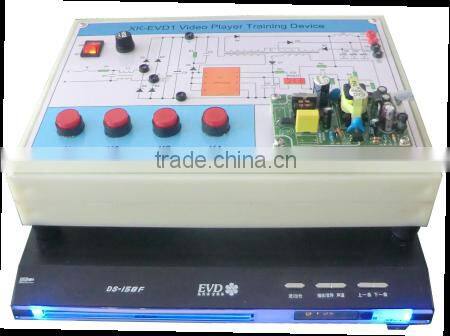

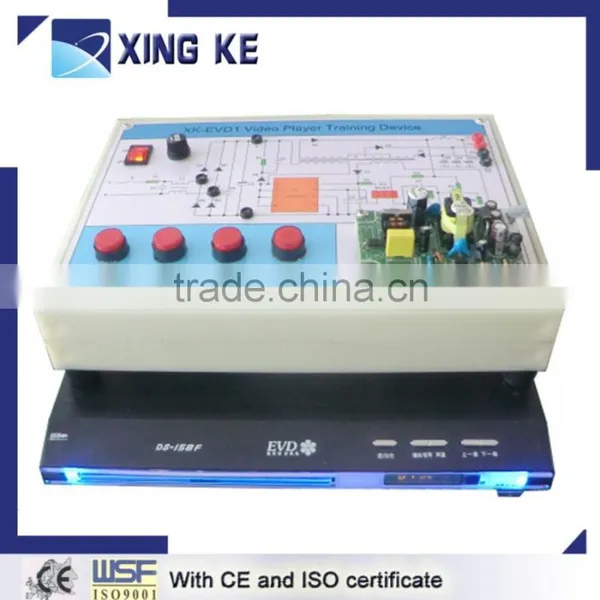

XK-EVD1 mainly consists of power source and circuit principle assessment board and DVD. The circuit principle assessment board printed with principle diagram and detection point and fault setting switch
2. Training kit technical index
2.1 Size: 280mm *220mm *100mm, net weight: 1KG
2.2 Power supply input: single phase three wires system, AC220V ±10% 50Hz
power≤15W

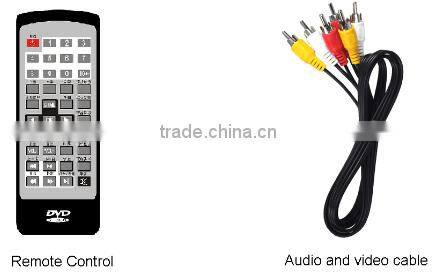

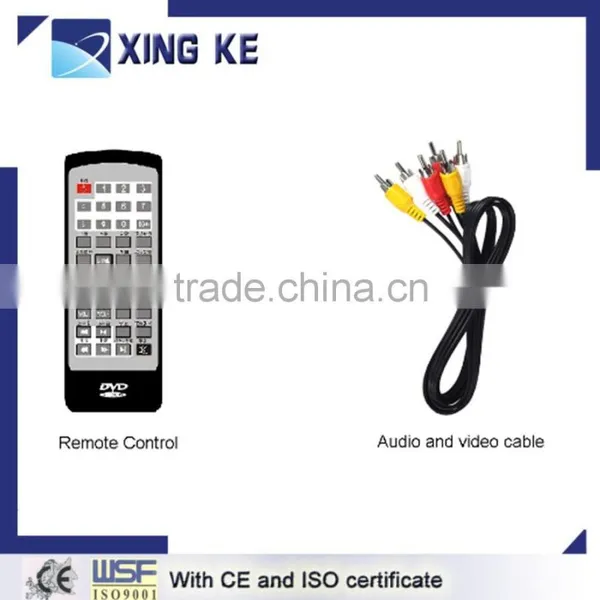

3. Accessory for Experiment
3.1 Remote control: 1pce
3.2 Audio, video cable: 3pcs
4. Function of Equipment
1) Master the operation method of DVD players
2) Understand the basic structure of DVD players
3) Master the mechanical system composition and working principle of DVD players
4) Master circuit system composition and working principle of DVD players
5) Understand failure phenomenon caused by the bad laser diode and the judgment method
6) DVD players power fuse open circuit fault detection and ruled out
7) Rectifier circuit damage fault detection and ruled out
8) Power without a +5V output fault detection and ruled out
9) DVD players without accompanying sound fault detection and ruled out
