Multifunction Household Appliances Integration Training Bench

Multifunction Household Appliances Integration Training Bench thumbnail-1
Multifunction Household Appliances Integration Training Bench photo-1
US$ 100 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XingKe
Model Number:
XK-ZHJD2
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XingKe
Model Number XK-ZHJD2

1. Product Introduction

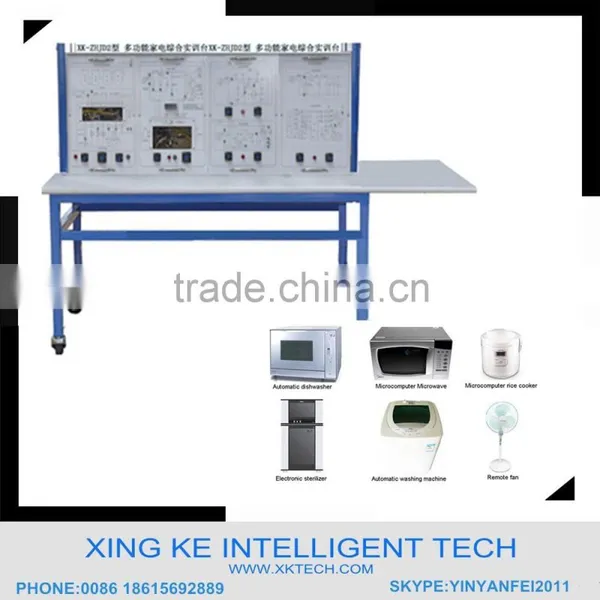

XKZHJD2 mainly trains for 6 kinds of household appliance, training for using method,structural composition,

electronic control principle. Training bench with intelligent fault assessment function, user set faults and

troubleshooting for electric control system.

XKZHJD2 includes electric fan, microwave oven, electronic disinfection cabinet, electric cooker, full automatic

dish-washing machine and full automatic washing clothes (we can set according to user requirement) and experimental

box. Bench equipped with leakage protector, voltmeter, ammeter, socket, indicator light and intelligent assessment

system. Bench equipped with 4 universal wheels, convenient for mobile.

2. Training kit technical index

2.1 Size: 1260mm *720mm *1460mm, net weight: 100KG

2.2 Power supply input: single phase three wires system, AC220V ±10%, 50Hz

2.3 Power supply main switch with leakage protection

2.4 Capacity: <1.0kVA

2.5 With power supply indication, main power indication, voltage and current indication

3. Training content

1) Understand the appearance and structure of household electrical appliances

2) Familiar with the use method of household appliances

3) Understand the working principle of household appliances

4) Microwave oven common fault analysis and repair. Failures include: microwave oven does not get electricity;

Microwave oven light is on, turn rotary fan is working but not heating; Light is not bright, microwave oven working normally; turntable does not turn; Barbecue tube does not work

5) Electronic disinfection cabinet malfunction analysis and maintenance. Faults: high temperature disinfection does

not work; High temperature disinfection effect is poor, the heating time is longer than normal. Ozone generator without discharge "squeak" sound; Ozone generator discharge "squeak" sound very low voice, disinfection effect is not

 ideal

6) Electric cooker common malfunction analysis and maintenance. Failures: digital tube does not display, and

electric heating plate is not hot; Digital tube display, but the electric heating plate is not fever;

7) Dishwasher common fault analysis and repair. Failure include: dishwasher machine without power; Dishwasher

cannot inflow water; No heating; Cleaning pump does not work; The dishwasher does not drainage water;

Calcium precipitation or producing white film is formed on the dishes

8) The common malfunction analysis and maintenance of washing machines. Failures include: the machine doesn't

work; don't feeding water; do not undrained; impeller single direction rotation; No dehydration.

9) Electronic fan common fault analysis and repair. Failures include: the indication light is not bright, fan doesn't

work; Indicator is on, fan does not turn; fan can't be remote control; top gear fan does not turn; fan can't shake

head and supply air.
