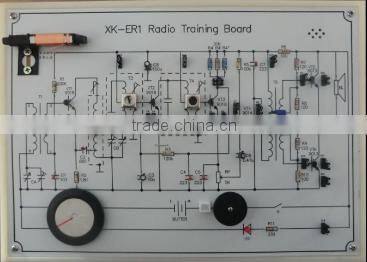

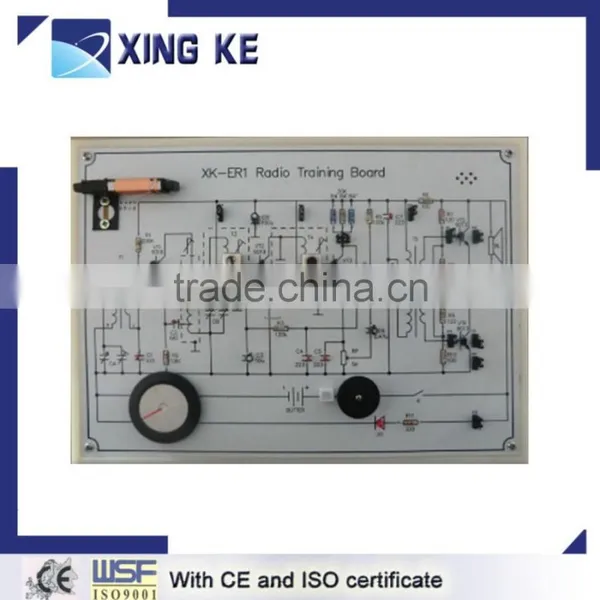

XK-ER1 RADIO TRAINING BOARD
PRODUCT INTRODUCTION
XK-ER1 Radio Training Board adopts typical six tube super heterodyne circuit with the good quality, high sensitivity, good selectivity. Amplifier stage adopts power amplifier (OTL circuit) of OTL, with the character of high efficiency, good frequency, loud voice, power saving.
This product mainly describes composition and circuit working principle and debugging method of super heterodyne radio. The special points of circuit are arranged the points of failure, to set up a variety of faults.
TECHNICAL PARAMETERS
Input power: DC +3V
Capacity: ≤1W
Outline dimension: 260*180*30mm
Net weight: around 0.5Kg
TRAINING FUNCTIONS
Understanding of radio wave emission and reception theory
To master the circuit composition of AM radio
To master the working principle of AM radio
To master the working principle of the circuit of AM radio
To master the debugging method of AM radio
Master the judgment method of the common faults of AM radio
Failure detection and exclusion of radio
The detection and elimination of radio failure in AM radio
Detection and elimination of noise in AM radio station
