Specifications
1.electronic sequencer experimental box2.electronic technology training box
3.vocational school teach

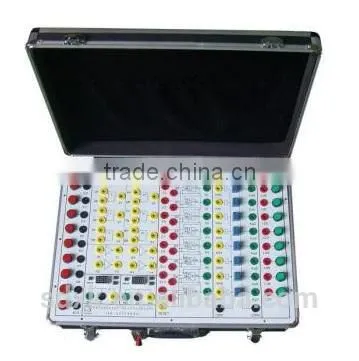

Latest Comprehensive Electronic Sequencer Training Set
1. Product Introduction:
XK-AUT1009A mainly consists of 4-way AND gate circuit,4-way OR gate circuit,4-way NOT gate circuit,10 of control buttons,8 of indication lights,8-way electronic sequencer circuit,8-way relay output,2-way integrated electronic time delayer (5s~1min) etc. XK-AUT1009A suitable for students training circuit of AND gate,OR gate,NOT gate,sequence control
2. Training box main parameters:
2.1 Overall Size: 525 (L) x 350 (W) x 130mm (H); Weight: 3.5kg
2.2 The power supply: single-phase power supply, AC 220 V, 50/60 Hz, power≤15VA.
2.3 With grounding protection,over-current protection,power supply indication and main power indication
2.4 Working environment: temperature: -10°C~+40°C
3. Signal Source Technology Parameter:
3.1 DC 5V voltage source, capacity: 2A
3.2 Electronic time delayer, capacity: 2A
4. Accessory for experiment
4.1 K4 Experiment wires: 40 pieces
4.2 Power line: 1 pcs
4.3 Manual book: 1 pcs
5. Experiment Project
5.1 Learning the structure and working principle of AND gate circuit
5.2 Learning the structure and working principle of OR gate circuit
5.3 Learning the structure and working principle of NOT gate circuit
5.4 Learning the using and working principle of electronic sequencer
5.5 Learning the using and working principle of electronic delayer
