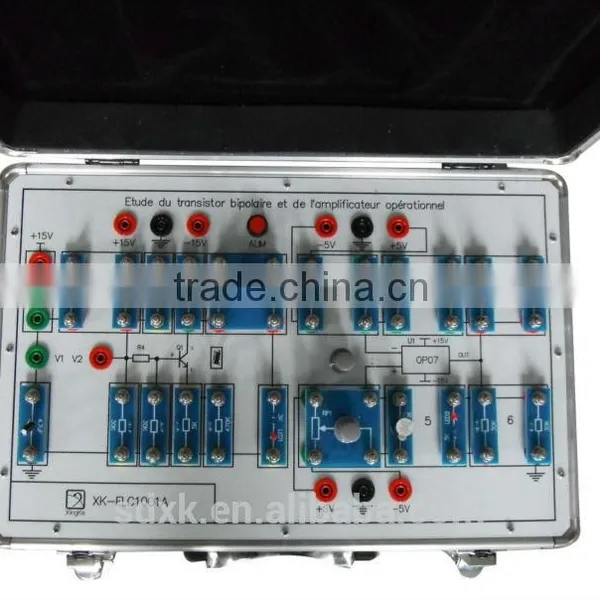

Electronic Lab Training Set, Transistor and Operational Amplifier Training Kit
1,Product Overview:
The experimental box is mainly used for the operational principle of grounded-emitter,transistor,thermistor,photoresistance and the application of transistor BD137,supporting μA, 741 or TL 081 op amplifier chip, to achieve noninverting, inverting amplifier, adder, subtractor, comparator, comparator, integrator, and oscillation circuit. The experimental box panel with power indicator, using a modular structure attached without desoldering the installation template.
2,Main parameters:
1) The power supply::AC220V±10%,50HZ,≤100W;
2) Working environment: no dust, oil mist and corrosive gases;
3) Operating Temperature:0~+50°C;
4) Storage Temperature:-20°C~+80°C;
5) Humidity: 40~90%RH;
6) Size:370mm*220mm*120mm(L*W*H);
7) Weight:<2KG;
3,Main function:
1) to learn the grounded-emitter work principle of diode.
2) to learn the working principle of the thermistor
3) to learn the working principle of photoresistor
4) to learn the working principle and usage of transistors DB137
5) the noninverting experiments
6) the inverting scaling experiments
7) the adder experiments
8) subtraction experiments
9) comparator experiments
10) comparator experiments
11) integrator experiments
12) the oscillation circuit experiments.
