Specifications
1.Optical fiber training kit2.School lab equipment
3.vocational training equipment
4.ISO,CE and OEM factory

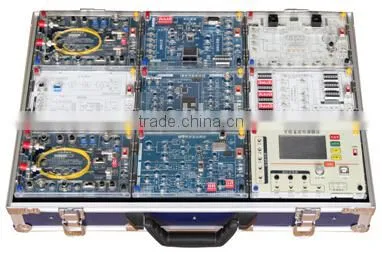

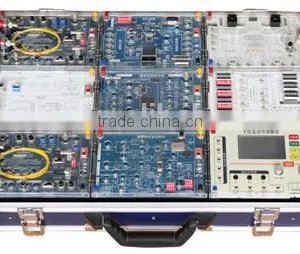

XK-GX2 Optical fiber communication comprehensive training kit for vocational training
I.Main characteristics
1. This training system is in the point of view of the whole communication domain system, and adopts modular design which display the communication relatived knowledge through “communication building blocks” form, besides can support the students researching the building blocks, it is also convenient for the second development of the hardware circuit and easy for upgrading and expanding the experiment system.
2.Each module shall use the upper and lower two layers protective cover to protect completely, the upper cover is a transparent shell which is easy for the students to observe and do experiment, for the convenience of the experiment teaching and module repair, shall adopt the bayonets (no need the screws)to connect the module upper and lower two layer protective shell which are easy disassembled.
3.Equipped with specialized synchronous module, can display bit synchronous, frame synchronous, carrier synchronous function, and the bit synchronous contains the filter mehtod and full digital PLL two implementation methods
4.Can build all kinds of different communication system among different experiment boxes, can simulate the signal processing process through actual communication system, in the system experiment, the synchronous signal shall be extracted at the receiver end, do not need wiring any more.
5.Equipped with manuals and multimedia teaching courses which can dynamically display the wiring process and the corresponding experiment result
6.The module label , signal process and function blocks shall be clear, I/O interfaces and its function label shall also be very clear, thus can make the student be familiar with each module and its function in the shortest time.
7.For the convenience of upgrading the purchased module in the future, the product shall support “one key “upgrading through SD card, can directly insert the SD card to the main control module, through menu selecting can upgrade the module.
8.Each module shall be equipped with independent multiway power supply switch, the student can carry out independent open and shut off each module according to actual conditions.
9.In order to meet the requirement of the module individual setting and adjusting when the student are innovation researching, the product cannot only be batch setting of the many modules according to the experiment project, but also can support independent adjusting each parameter of each module.
10.Product shall have a very well man-machine interface, for convenience operation, the main control module shall be equipped with color LCD display screen.
11.Standard configuration module: signal source& main control module, voice terminal&user interface module, digital terminal& TDMA module, TDMA and time division switching module, base band transmission encoding and decoding module, carrier synchronous and bit synchronous module, 1310nm optical tranmitting and receiving module, 1550nm optical transmitting and receiving module, optical power meter&error detector module
12.Enriched the knowledge of optical passive components, and equipped with many kinds optical cable and cable stripping off tools which can make the student fully understand the internal structure
13.The traning box itselt can realize programme-controlled exchange telephone system frame.
14.Added telephone dialing function, can finish calling and anwering the whole process state diplsay, also can real time observe the all kinds of singal waveform
15.Equippd with simulation software matched with hardware experiment training box, which can realize the same the function and operation mode with the hardware on the PC, the software integrates TDS1002 oscilloscope function, can observe the experiment waveform, convenient for the school to carry out the theory and practice integration teaching .
II. main technical parameters
Signal source output waveform:
sine wave: frequency range:0-2MHz
amplitude range:0-5v
triangle wave: frequency range:0-100khz, amplitude range:0-5v
square wave: frequency range:0-100khz
Amplitude range:0-5V
Music signal: real person singing
Sampled signal: 1KHz+3KHz sine wave
DSB signal: carrier frequency: 20KHz~30KHz
SSB signal: carrier frequency: 20KHz~30KHz
FM signal: carrier frequency: 20KHz
PN sequence: code length 15bit, code speed range: 1kbp/s~2048kbp/s
Clock signal speed range: 1KHz~2048KHz
Signal source encoding and decoding type: PCM, ADPCM, simple delta modulation ,CVSD
Base band coding type:AMI, HDB3, CMI, BPH.
III. Experiment project
² Optical components experiment
Optical fiber consumption characteristics measuring
Optical fiber connector
Laser and optical detector
² Optical receiver and transmitter experiment
Optical transmitter composition
Darkness alarming and lifetime alarming circuit
Optical source P-I characteristics testing
Optical receiver extinction ratio measuring
Optical receiver average optical power testing
Optical receiver composition.
Receiver sensitivity testing
Optical receiver dynamic range and eye pattern observation
Optical relay distance estimation experiment
² Analog signal optical transmission system experiment
Analog signal optical fiber transmission system
Telephone voice optical fiber transmission system
Images optical fiber transmission system
² Digital signal optical fiber transmission system experiment
PN sequence optical fiber transmission system
CMI encoding and decoding principle and CMI code optical fiber transmission system
Interference code and interference code removing principle and optical fiber transmission system.
² Optical fiber comprehensive transmission system experiment
WDM optical fiber transmission system
HDB3 encoding and decoding principle and implementation
Bit clock extraction(digital PLL)experiment
Comprehensive experiment 1: 4 ways data+ 2 ways telephone optical fiber comprehensive transmission system experiment
Comprehensive experiment 2:4 ways data+1 set computer +1 way image/voice full-duplex optical comprehensive transmission system experiment
Comprehensive experiment 3: 3 set experiment training kits+2set computers+ 2 ways images/voice full-duplex optical fiber comprehensive transmission system.
² Secondary development experiment
PN sequence program design
CMI encoding and decoding program design
5B6B code program design
4B1P and 4B1C program design
HDB3 encoding and decoding program design
Interference code and interference code removing program design
DPLL program design
Fixed speed TDMA program design
