Electronic Assembly Training Equipment

Electronic Assembly Training Equipment thumbnail-1
Electronic Assembly Training Equipment photo-1
US$ 100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XING KE
Model Number:
XK-DZSX1E
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XING KE
Model Number XK-DZSX1E

1. Product Overviews:

DZSX1E is suitable for teaching and training for various of vocational training college, through the

practice on this equipment, students learn the normal electronic technology design knowledge;

through making the electronic product, students master the basic skills: safety operation,

components and its packaged identification; installation,welding,debugging,troubleshooting.

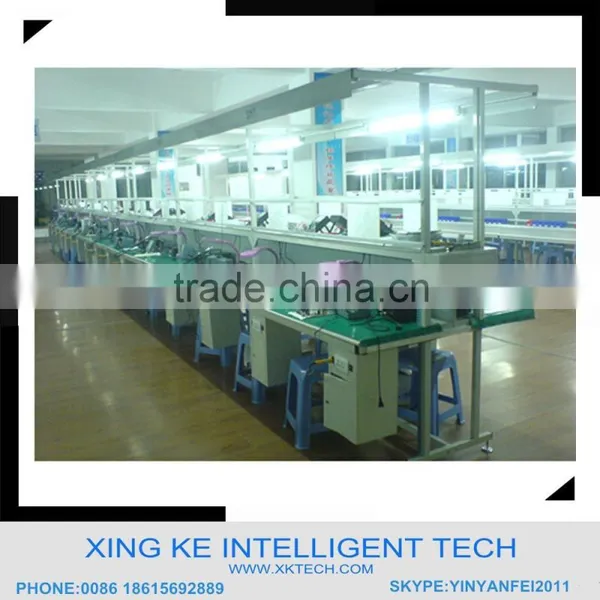

XK-DZSX1E consists of steel tube spraying plastics structure,table

top insulation paste,component cabinet,power source control screen,lighting lamps etc. Bench

is also equipped with soldering assemble tools,experiment measurement instrument,soldering training suits (basic component bag,radio suit,digit electronic clock suit,multifunction alarming suit ) etc.

2. Experiment Bench Technology Parameter:

2.1 Product Size: 1700mm × 700mm × 2000mm

2.2 Power Supply: single phase AC220V, 50Hz, 500VA

2.4 With grounding protection,leakage protection,emergency stop button protection etc. power indication

 light,power supply indication

3. Signal Source Technology Parameter

3.1 DC ±5V voltage source

3.2 DC ±12V voltage source

3.3 DC 24V voltage source

3.4 Adjustable 1.25~30V DC voltage source

3.5 2-way AC 15V voltage source

3.6 2-way AC 8V voltage source

3.7 4~20mA continuously adjustable constant current source

4. Accessory for experiment

4.1 Components bag: 1 set

4.2 Digital multimeter: 1 pieces

4.3 Dual trace oscilloscope: 1 set

4.4 Signal generator: 1 set

5. Experiment Project

5.1 Electronic components identification

5.2 Encapsulation learning of electronic components

5.3 Assembly technique of electronic components

5.4 Welding technique of electronic components

5.5 Using of multimeter

5.6 Using of oscilloscope

5.7 Using of signal generator

5.8 Assembly and debugging of radio suit

5.9 Assembly and debugging of digital electronic clock

5.10 Assembly and debugging of multifunction alarming kit

Electronic Assembly Training EquipmentElectronic Assembly Training EquipmentElectronic Assembly Training Equipment
