XK-MX4 Pure Water Production Line Module
1. System overview

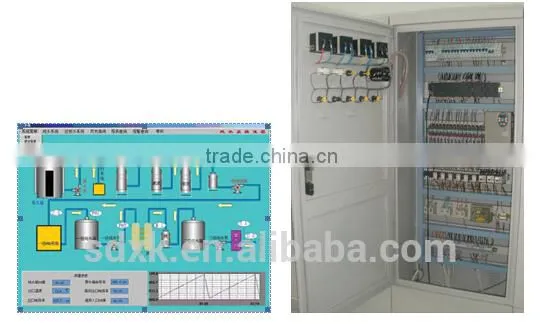

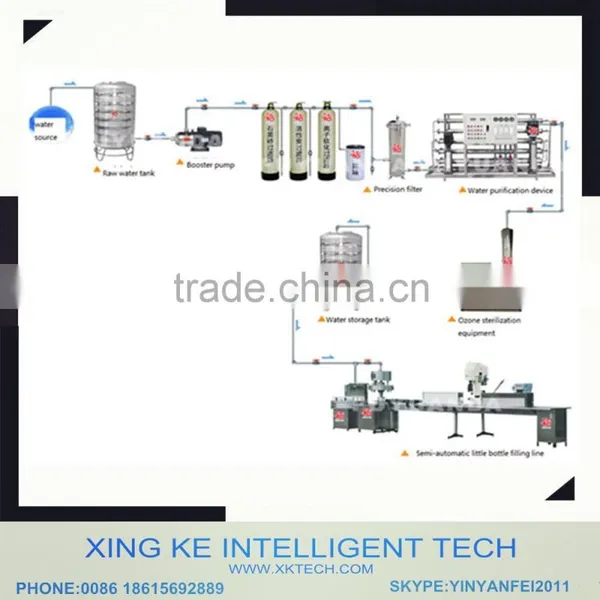

This is purified water production system, its raw material is tap water, through purification treatment, will get high-quality purified water. The system contains ample mechatronics training teaching object. It is composed of raw water tank, booster pump, quartz sand filter, activated carbon filter, iron softening filter, precision filter, ozone sterilization system, storage water tank, semi-automatic little bottle filling line and PLC control system.
2. Technical index
2.1 Training room index
Training room area: ≥50m2
2.2 Power supply part
Three-phase five-wire AC power supply 15KW
3. Training content
3.1 Mechatronics training
1) To understand mechatronics training device
2) To understand operation instructions
3) Safety operation training
4) To understand, install and maintain the solenoid valve
5) To understand, install and maintain switch valve and metallic rotor flowmeter sensor
6) To understand, install and maintain pneumatic pipe and pneumatic control device.
7) PLC installation, inner cabinet arrangement, wiring design training
8) Upper PC kingview application and the communication between kingview and PLC
9) PLC programming training of much more complex electromechanical device
10) Electrical device maintenance training
11) Mechanical fault maintenance training.
3.2 Process operation training
1) To understand production line technological process
2) To understand operation instructions
3) Safety operation training
4) To understand the name and use of process device
5) To adjust the production process parameters
6) Production quality analysis
7) The calculation and improvement of product yield coefficient
8) To handle and analyze the fault conditions
9) To clean and wash the device
10) Process operation stability.
3.3 Comprehensive skill training
1) To understand system functions
2) To learn device performance
3) To know the device working ability
4) To improve the working ability
5) Device management knowledge.
6) Production management training
7) Workshop workers management training
8) Raw material purchase procedure training
9) System adjustment management
10) The analysis of product quality and yield coefficient
11) Electrical fault analysis and troubleshooting
12) Mechanical fault analysis and troubleshooting.
