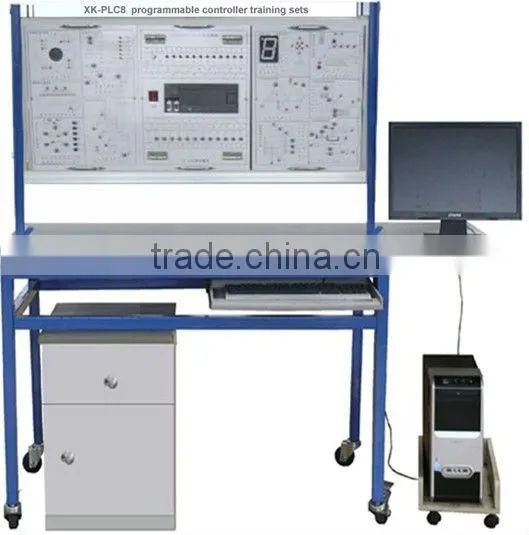

Educational equipment,PLC trainer, training kit,XK-PLC8 programmable controller training equipment
1.product overview:
modular desktop structure, hanging box replacement convenient, easy to organize various training project, expand and upgrade are convenient. can finish PLC programming instructions learning and practice, PLC typical project training and PLC network communication experiment and configuration training, etc.
2.Training platform technical index
2.1 Product size:1500mm×700mm×1250mm
2.2 Product power supply: single phase AC220V voltage, frequency 50/60hZ,power<500VA
2.3 Experiment power supply:DC24V voltage source 1 path
2.4 PLC: can choose Siemens, AB, Schneider, Mitsubishi, Omron and other brands product.
3. Training platform accessories
(1)K2 jumper line:50pcs
(2)PLC programming cable:1 pce

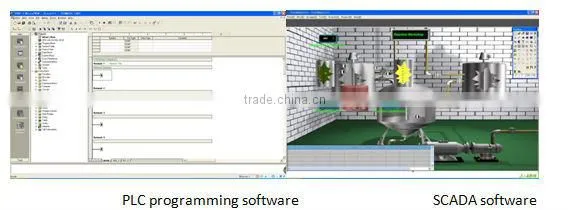

(3)Assorted software: PLC programming software, SCADA software(kingview DEMO version software)
(4)Experiment manual:1 pce
4. Experiment list
4.1 Understanding PLC hardware and software
1)to understand PLC hardware
2)PLC wiring practice
3)PLC internal resource studying
4)The usage of PLC programming software
5)The downloading, uploading and online monitoring of programming application programme.
4.2 PLC basic instruction practice training
1)Boolean instruction training
2)Timer instruction training
3)counter instruction training
4)Transfer instructions training
5)Data shift instruction training
6)Arithmetic operation instruction training
7)Logic instruction training
8)Sequence control relay instruction training.
4.3 PLC project training
1) Beacon lights twinkle circle
2) Eight-bit code display to show numbers
3) Automatic mail sorting
4) Automatic cistern water level control
5) Tool Choice control of machining center
6) Automatic immixture of multi kinds of liquid control
7) Automatic mo(u)lding machine
8) Automatic assembly line control
9) Automatic rolling mill control
10)Traffic lights control
11) Manipulator motion control
12)Automatic material transport and beladung f control
4.4 SCADA software training(kingview DEMO version software)
1)The usage of SCADA software
2)Basic animation connection application
3)Moving, zooming animation connection application
4)Vertical moving animation connection application
5)Value input and output animation connection application
6)Typical SCADA project training.
